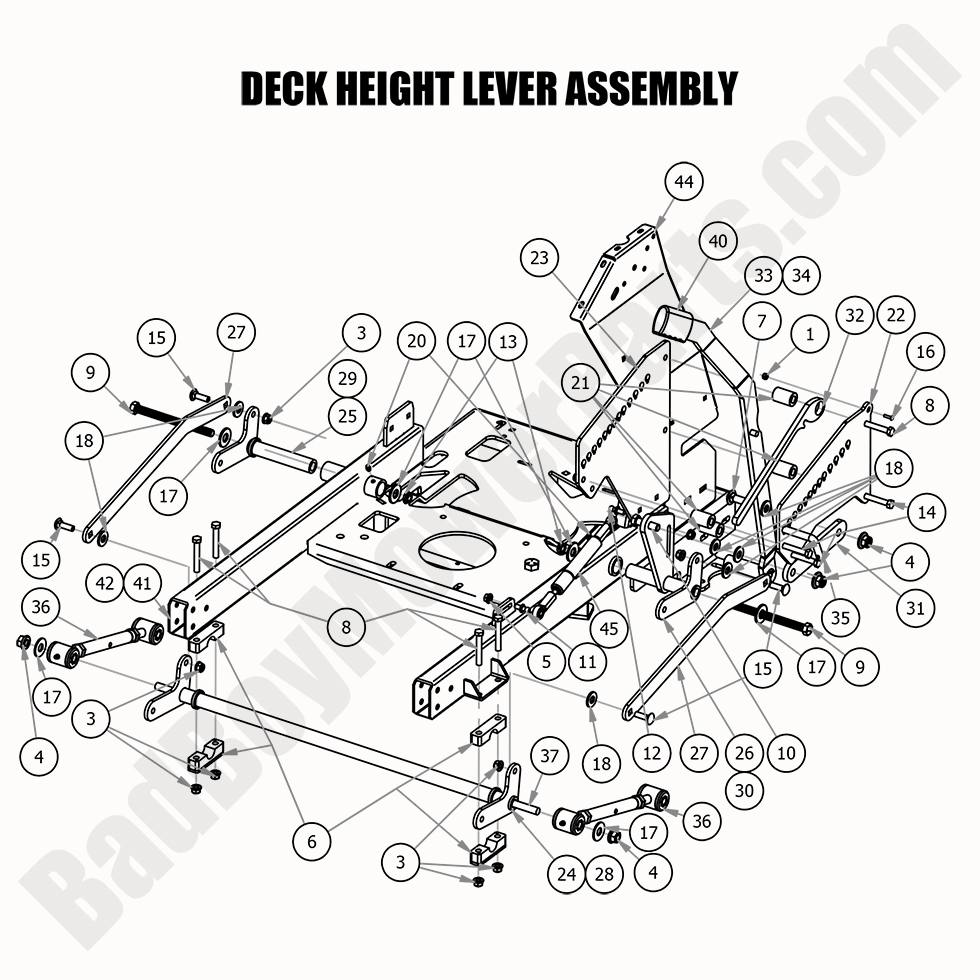

2020 Revolt - Deck Height Lever Assembly

2020 Revolt - Deck Height Lever Assembly

The 2020 Revolt Deck Height Lever Assembly is an essential part for adjusting the cutting height of your mower deck. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to ensure that your Revolt mower performs at its best. Whether you need the lever itself, or additional components such as springs, bolts, or linkages, we provide the high-quality parts required to restore and maintain your mower’s functionality. Our Bad Boy Lawn Mower Parts are designed for easy installation and long-lasting durability, so your mower can perform with precision every time. We also provide helpful Bad Boy Mower Part diagrams to assist in identifying the parts you need. Enjoy Free Shipping On Orders Over $100 when you order from us. Shopping for Bad Boy Parts Online ensures that your 2020 Revolt will have the right components to adjust cutting heights with ease.

Bad Boy Mower Parts Lookup

2020 Revolt - Deck Height Lever Assembly
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
7 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
8 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
9 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
10 018-0102-00 018-0102-00 - 1/2-13 x 1 3/4 GR5 Hex Bolt No Longer Available
Obsolete.
11 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
12 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
14 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
17 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
18 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
20 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
21 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
22 026-0082-00 026-0082-00 - Outer Adjustment Plate
$32.09
24 028-0028-00 028-0028-00 - Front Actuator Bar Weldment 2019-2022 Revolt
$35.30
25 028-0029-00 028-0029-00 - Rear Actuator Bar 2019-2022 Revolt
$102.16
27 028-0033-00 028-0033-00 - Actuator Linkage 2019-2022 Revolt
$10.21
28 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
30 028-0038-00 028-0038-00 - Revolt Rear Actuator Bar Weldment-LH No Longer Available
Obsolete.
31 028-5001-00 028-5001-00 - Lever Secondary Linkage-Black
$12.83
32 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
33 031-7146-00 031-7146-00 - Deck Lift Lever Welded Assembly 2019-2022 Revolt
$99.32
34 031-7148-00 031-7148-00 - 2020-2022 36" Revolt Deck Lift Lever
$74.85
35 040-4001-00 040-4001-00 - Pin and Lanyard 1/2 x 2 (See Models Used On For Details)
$14.19
36 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
37 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
40 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
41 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
42 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
44 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
45 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
