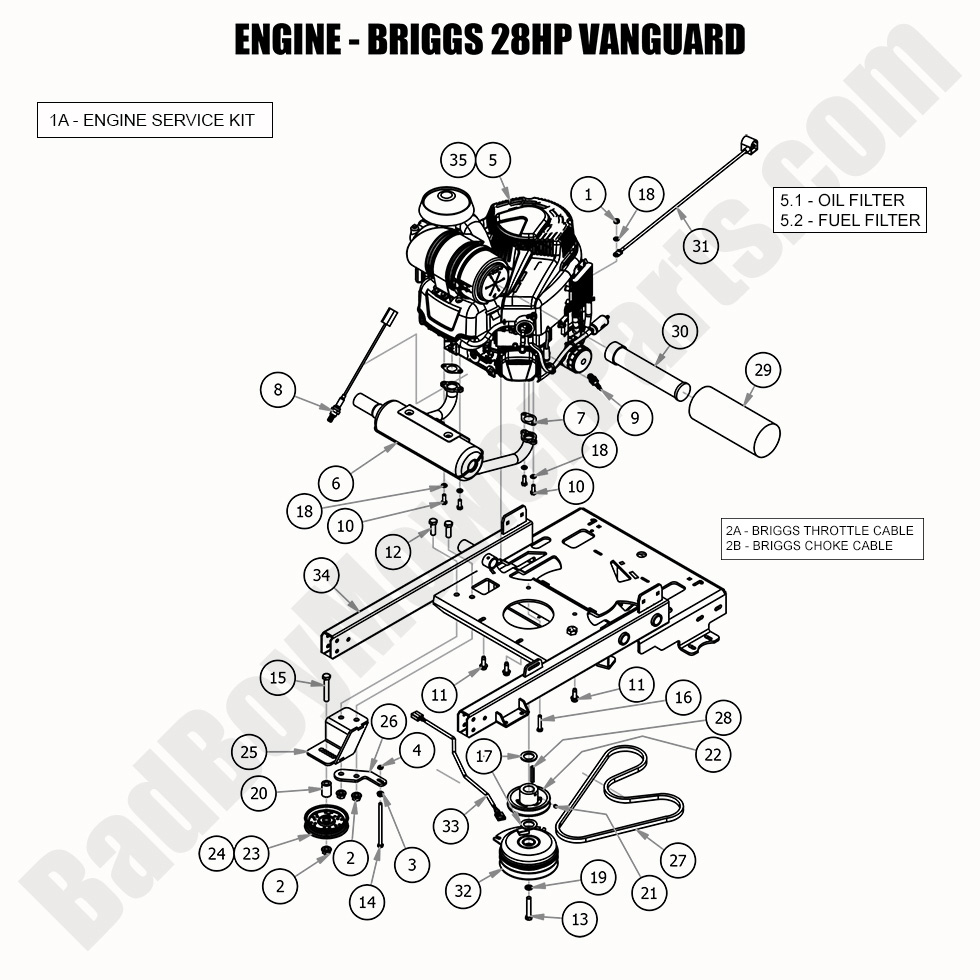

2020 Revolt - Engine - Vanguard EFI

2020 Revolt - Engine - Vanguard EFI

The 2020 Revolt Engine - Vanguard EFI provides exceptional performance, and BadBoyMowerParts.com offers all the necessary components to maintain or repair your engine. From air and fuel filters to oil pumps and ignition components, our extensive selection of Bad Boy Mower Parts covers everything you need. The Vanguard EFI engine is known for its reliability and power, and our Bad Boy Lawn Mower Parts are designed to keep it running smoothly. By using our Bad Boy Mower Part diagrams, you can quickly locate the parts you need for a precise fit and optimal performance. Additionally, we provide Free Shipping On Orders Over $100, making it easy and affordable to maintain your 2020 Revolt mower. Shop for Bad Boy Parts Online to ensure your Vanguard EFI engine continues to perform at its best throughout its lifespan. Keep your engine in top shape with genuine parts from our site.

Bad Boy Mower Parts Lookup

2020 Revolt - Engine - Vanguard EFI
  Position Number SKU Product Title Price
1A 063-2000-22 063-2000-22 - Engine Service Kit - Briggs Vanguard 810/993/999cc (EFI Models Only)
$127.15
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
5.1 063-8018-00 063-8018-00 - Oil Filter
$21.39
5.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
5 015-0092-00 015-0092-00 - 28HP Briggs Vanguard 810cc
$2899.99
6 015-1021-00 015-1021-00 - Briggs 28 EFI Exhaust Revolt
$209.99
7 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
8 015-4100-00 015-4100-00 - O2 Sensor for 824EFI Kohler
$199.03
9 015-8000-03 015-8000-03 - Spark Plug for Vanguard 37hp EFI and 28hp EFI (Not for Non-EFI)
$7.69
10 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
13 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
14 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
15 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
16 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
17 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
18 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
19 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
20 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
21 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
22 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
23 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
24 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
25 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
26 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
27 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
28 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
29 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
30 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
31 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
32 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
33 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
34 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
35 086-9015-00 086-9015-00 - 2020 28 Briggs EFI Pigtail No Longer Available
Obsolete.
