2020 Revolt - Front End

2020 Revolt - Front End

The 2020 Revolt Front End is an essential part of your mower’s performance, affecting its maneuverability and stability. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the front end of your Revolt. Whether you need front wheels, steering components, or front axle parts, we have everything you need to keep your mower operating smoothly. Our Bad Boy Lawn Mower Parts are made to meet the highest standards of quality, ensuring reliable performance for years to come. Refer to our Bad Boy Mower Part diagrams to easily find the right front-end components for your mower. With Free Shipping On Orders Over $100, maintaining your 2020 Revolt is affordable and convenient. Shopping for Bad Boy Parts Online has never been easier, as our site provides fast shipping and top-notch customer service. Keep your front end in perfect condition with parts from our online store.

Bad Boy Mower Parts Lookup

2020 Revolt - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39

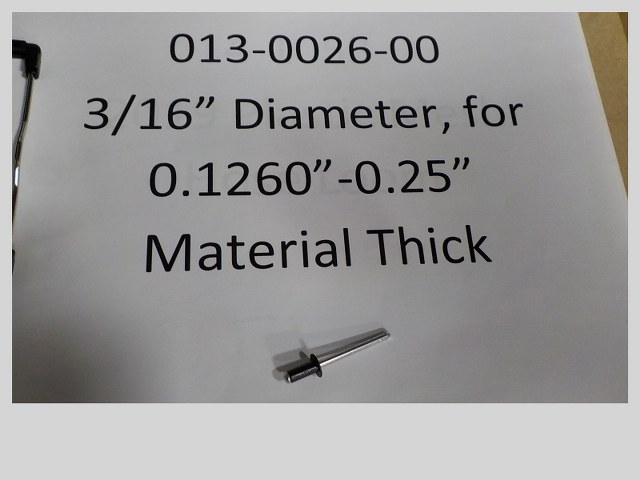

2 013-0026-00 013-0026-00 - 3/16" Diameter, for 0.1260"-0.25" Material
$3.29
3 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
9 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18

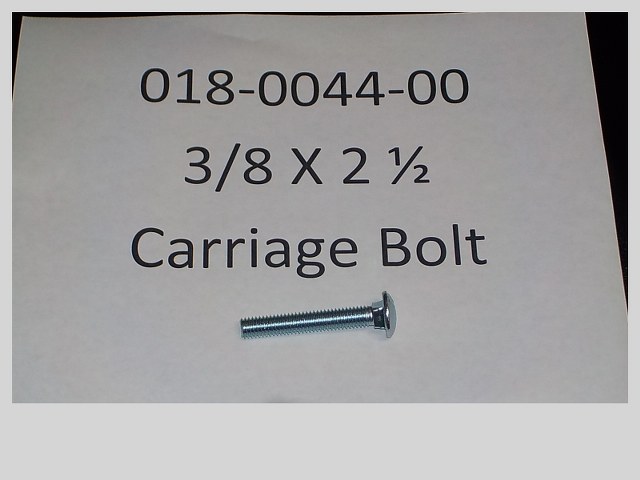

10 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99

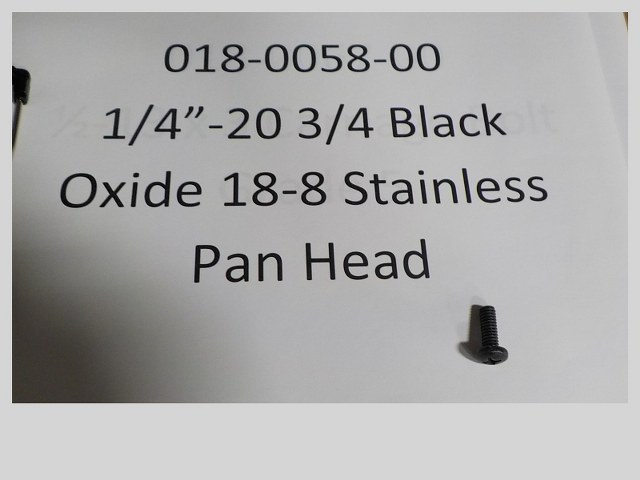

11 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.

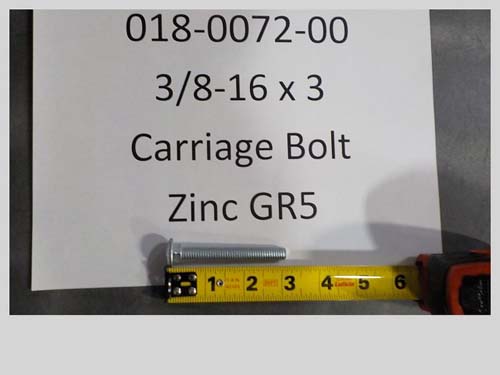

12 018-0072-00 018-0072-00 - 3/8-16 x 3 Carriage Bolt Zinc GR5
$2.99
13.0 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
13.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
13.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
13.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
14 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
15 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
16 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
17 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
18 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
19 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
20 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
21 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
22 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
23 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
24 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
25 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
26 070-9036-20 070-9036-20-36" Stand On Front End 2019-2022 Welded Assembly
$129.99
27 070-9048-19 070-9048-19 - 48" Stand On Front End 2019-2022 Welded Assembly
$129.99
28 070-9054-19 070-9054-19 - 54" Stand On Front End 2019-2022 Welded Assembly
$163.99
29 070-9061-20 070-9061-20 - 61" Stand On Front End 2020-2022 Welded Assembly (obsolete)
use part #070-9062-00
$229.99
