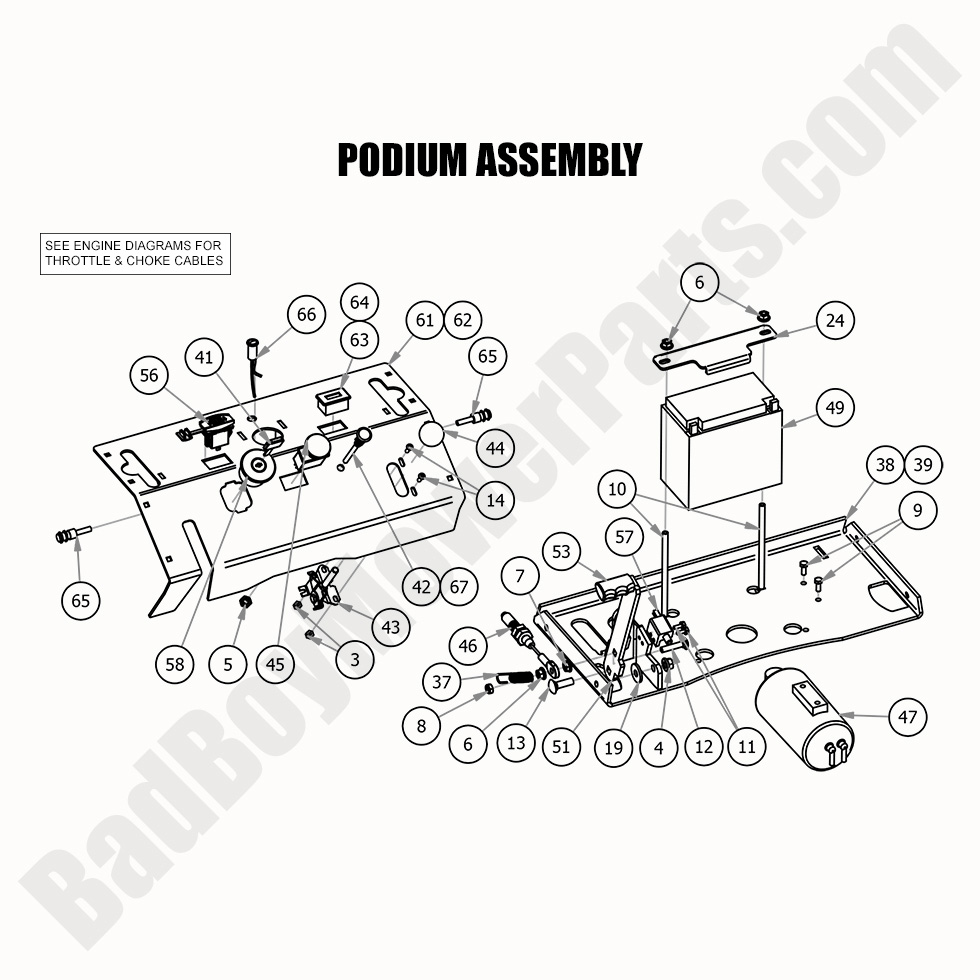

2020 Revolt - Podium Assembly

2020 Revolt - Podium Assembly

The 2020 Revolt Podium Assembly is an integral part of your mower’s frame and structural integrity. At BadBoyMowerParts.com, we stock a wide variety of Bad Boy Mower Parts, including the Podium Assembly for the 2020 Revolt. This assembly supports critical components, ensuring your mower operates efficiently and smoothly. We offer high-quality Bad Boy Lawn Mower Parts designed for durability and optimal performance, so you can confidently perform repairs or upgrades. With our Bad Boy Mower Part diagrams, finding the exact components for the podium assembly is simple and straightforward. Plus, we offer Free Shipping On Orders Over $100, making it more affordable to keep your mower in top shape. Shop Bad Boy Parts Online today and find all the parts you need to maintain the structural integrity and reliability of your 2020 Revolt. Ensure that your mower performs as expected with the best parts available.

Bad Boy Mower Parts Lookup

2020 Revolt - Podium Assembly
  Position Number SKU Product Title Price
3 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
8 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
10 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
11 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
12 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
24 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
37 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
38 039-0087-00 039-0087-00 - Console Bracket Weldment 2019-2022 Revolt
$21.39
39 039-0154-00 039-0154-00 - 36" Console Bracket Weldment No Longer Available
Obsolete.
41 042-9000-00 042-9000-00 - Ignition Key
$4.06
43 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
44 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
45 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
46 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
47 067-0020-18 067-0020-18 - Revolt EPA Canister- Assy
$85.59
51 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
53 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
56 077-2076-00 077-2076-00 - USB Port
$46.84
57 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
58 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
61 079-4112-00 079-4112-00 - 2019-2022 Revolt Podium Front Panel Weldment
$48.14
62 079-4113-00 079-4113-00 - 36" Podium Front Panel Weldment
$106.99
63 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
64 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
65 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
66 089-1000-00 089-1000-00 - Oil Light
$12.63
67 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
