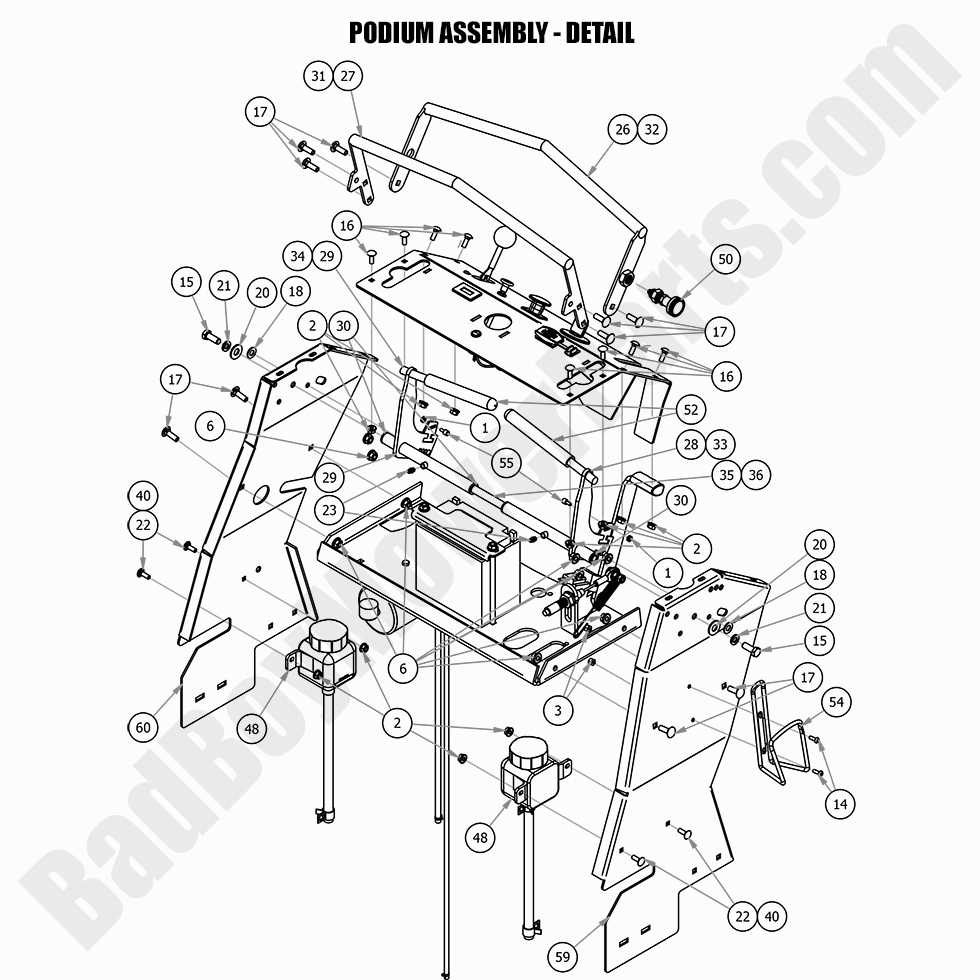

2020 Revolt - Podium Assembly - Detail

2020 Revolt - Podium Assembly - Detail

The 2020 Revolt Podium Assembly - Detail includes all the essential components that make up the podium system of your mower. Whether you're looking to replace individual parts or upgrade your assembly, BadBoyMowerParts.com has everything you need. We offer a comprehensive selection of Bad Boy Mower Parts designed specifically for the 2020 Revolt model. This detailed assembly provides the foundation for your mower’s frame, ensuring proper functionality and stability. Our Bad Boy Lawn Mower Parts are sourced directly from the manufacturer to guarantee compatibility and durability. We also offer helpful Bad Boy Mower Part diagrams, making it easy to identify the parts you need. Enjoy Free Shipping On Orders Over $100 when you shop for Bad Boy Parts Online. Keep your 2020 Revolt podium assembly in optimal condition by shopping for genuine parts, ensuring your mower continues to operate smoothly and efficiently.

Bad Boy Mower Parts Lookup

2020 Revolt - Podium Assembly - Detail
  Position Number SKU Product Title Price

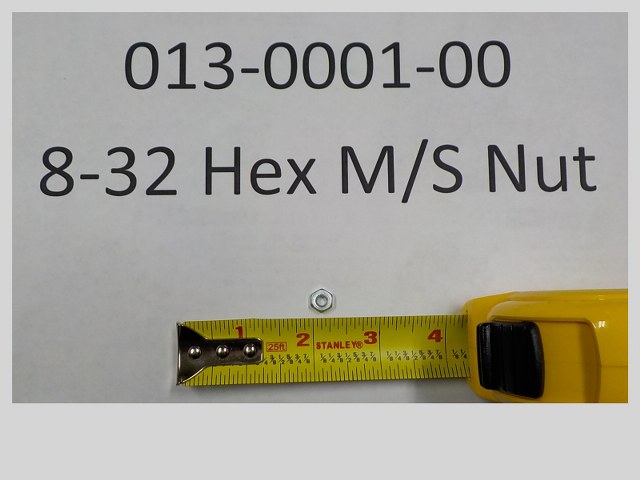

1 013-0001-00 013-0001-00 - 8-32 Hex Nut
$2.99
2 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
3 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
14 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
16 018-8040-00 018-8040-00 - 1/4"X3/4" CARRIAGE BOLT
$2.99
17 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
20 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
23 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
26 031-0026-00 031-0026-00 - Front Control Arm Stop 2019-2022 Revolt
$61.09

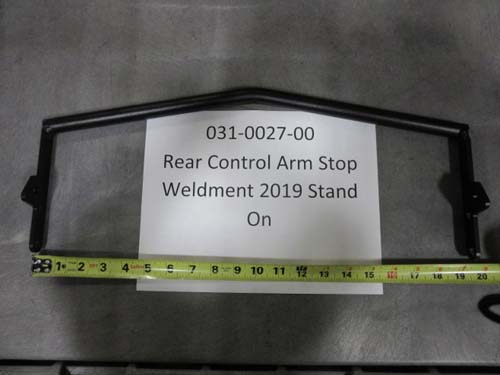

27 031-0027-00 031-0027-00 - Rear Control Arm Stop 2019-2022 Revolt
$46.00

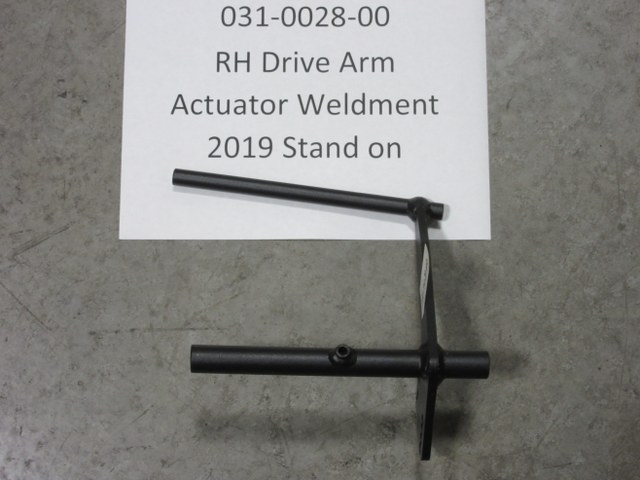

28 031-0028-00 031-0028-00 - RH Drive Arm Actuator 2019-2022 Revolt
$42.52

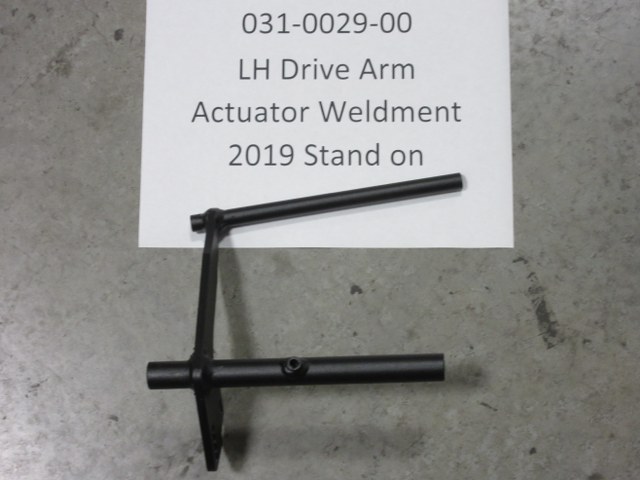

29 031-0029-00 031-0029-00 - LH Drive Arm Actuator 2019-2022 Revolt
$42.52
30 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
31 031-0033-00 031-0033-00 - 36" Revolt Rear Control Arm Stop Weldmen No Longer Available
Obsolete.
32 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05

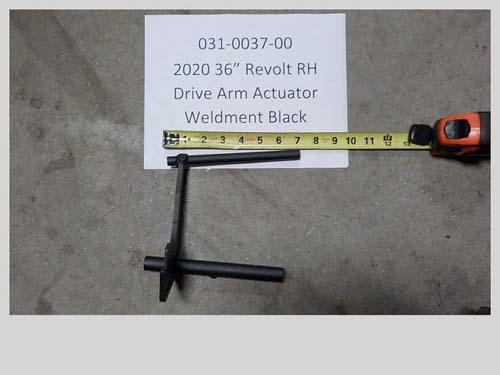

33 031-0037-00 031-0037-00 - 36" RH Drive Arm Actuator Weldment
$32.05

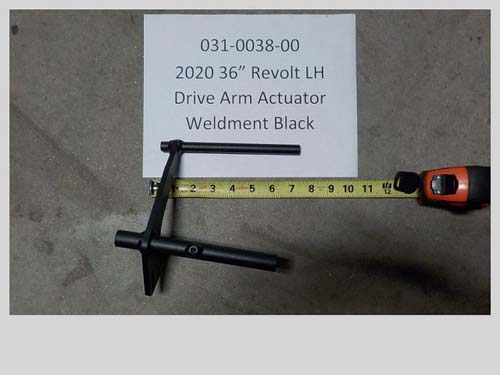

34 031-0038-00 031-0038-00 - 36" Revolt LH Drive Arm Actuator Weldment
$32.05
35 031-0091-00 031-0091-00 - Drive Pivot Bar 2020-2022 Revolt
$35.48
36 031-0094-00 031-0094-00 - Revolt Drive Pivot Bar
$23.53
40 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
48 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
50 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
52 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
54 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
55 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
59 079-4106-00 079-4106-00 - RH Podium Panel 2019-2022 Revolt
$37.44
60 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
