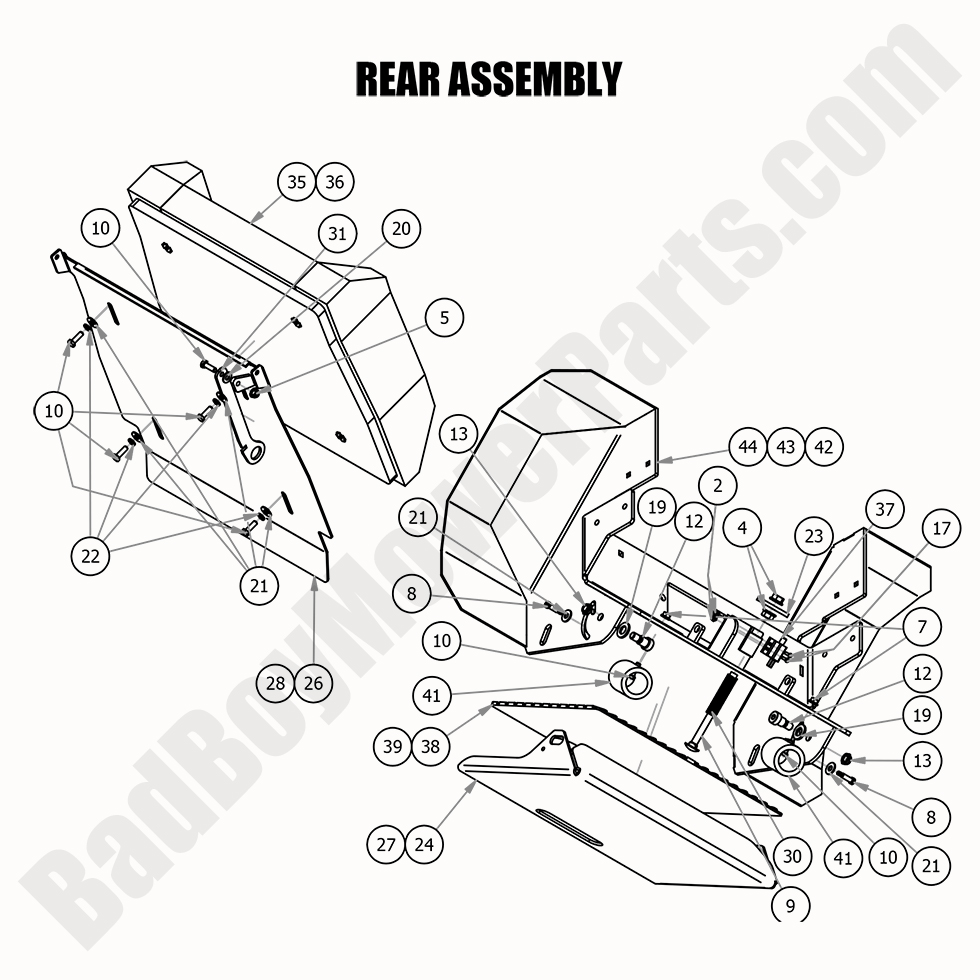

2020 Revolt - Rear Assembly

2020 Revolt - Rear Assembly

The 2020 Revolt Rear Assembly is an important part for maintaining the stability and functionality of your Bad Boy Mower. This assembly is designed to ensure the rear section of your mower operates efficiently, contributing to smooth handling and long-lasting performance. Whether you're in need of a replacement part or just want to upgrade your mower, you'll find a wide selection of Bad Boy Mower Parts to suit your needs. Our Bad Boy Mower Part diagrams make it easier to identify and order the correct parts for your machine. With our reliable service, you can shop for Bad Boy Lawn Mower Parts with the convenience of Free Shipping On Orders Over $100. Browse through the catalog of Bad Boy Parts Online on BadBoyMowerParts.com and find exactly what you need to keep your mower in peak condition.

Bad Boy Mower Parts Lookup

2020 Revolt - Rear Assembly
  Position Number SKU Product Title Price
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99

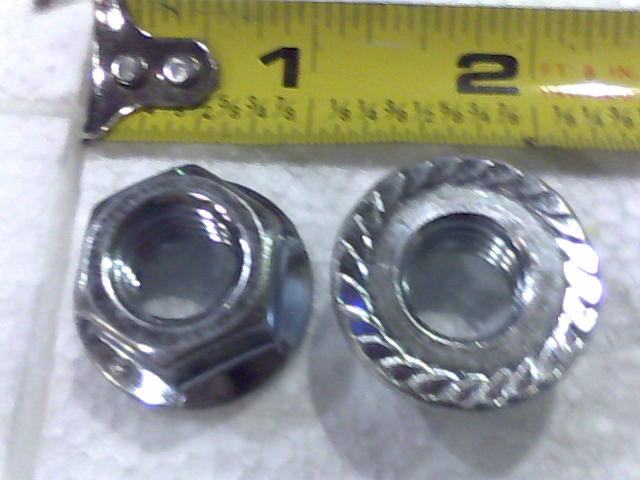

4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

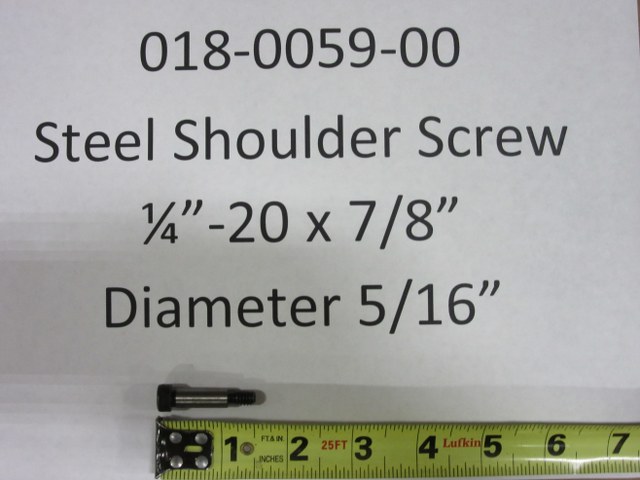

8 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39

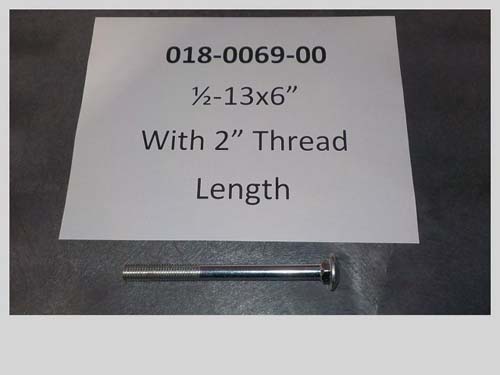

9 018-0069-00 018-0069-00 - 1/2-13 x 6" with 2" thread length
$36.37
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
17 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
21 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
22 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
23 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28

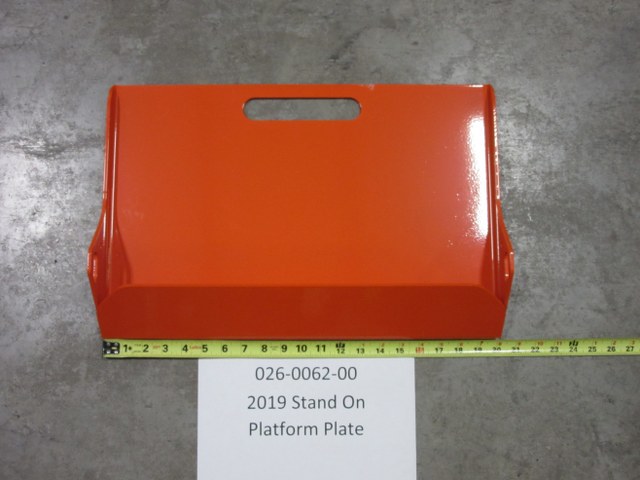

24 026-0062-00 026-0062-00 - Revolt Platform Plate for 48"-61" Models
$67.99

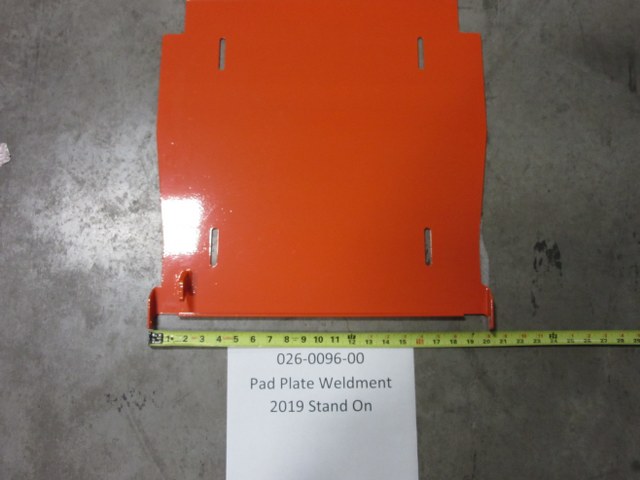

26 026-0096-00 026-0096-00 - Pad Plate for 2019-2022 Revolt (For 48"-61" Models Only)
$99.32

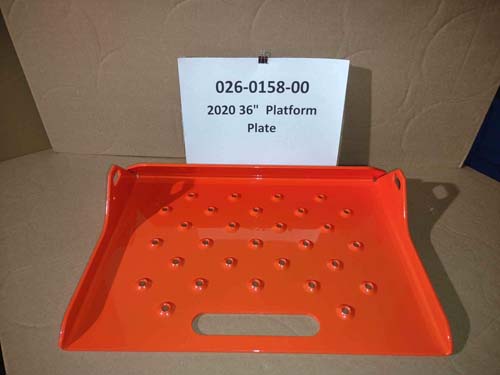

27 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$113.99
28 026-0159-00 026-0159-00 - 36" Pad Plate Weldment
$74.85

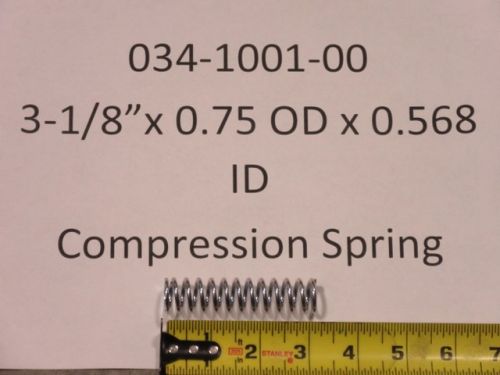

30 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83

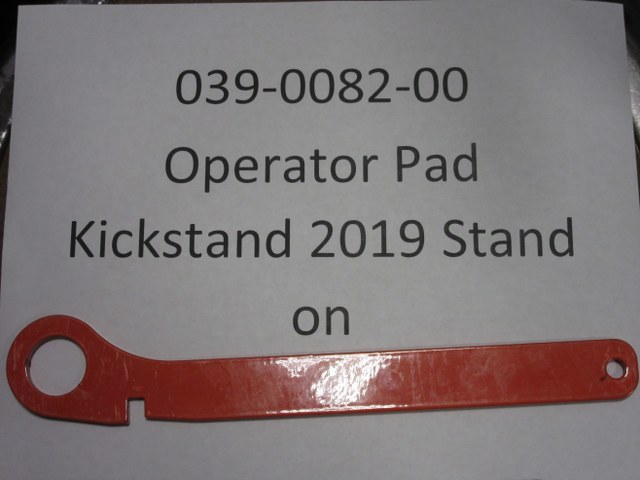

31 039-0082-00 039-0082-00 - Operator Pad Kickstand 2019-2022 Stand On
$28.39

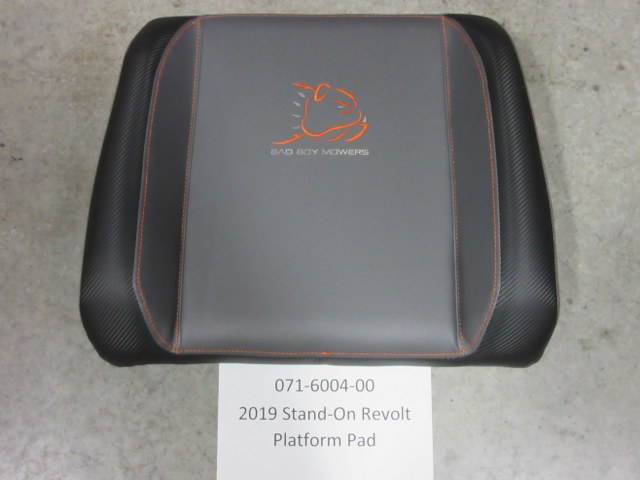

35 071-6004-00 071-6004-00 - Revolt Platform Pad, 48"-61" Models Only (See Models Used On For Details)
$189.99
36 071-6006-00 071-6006-00 - 36" Revolt Seat Pad
$144.50

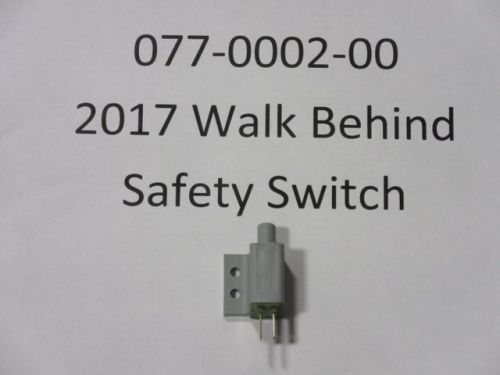

37 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41

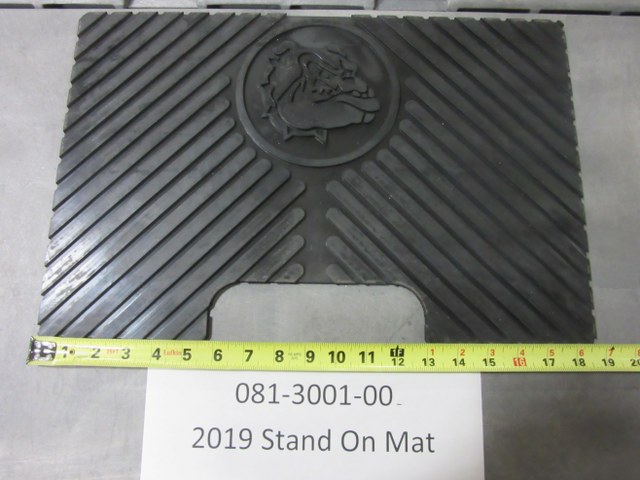

38 081-3001-00 081-3001-00 - 2019 Revolt Mat
$56.81

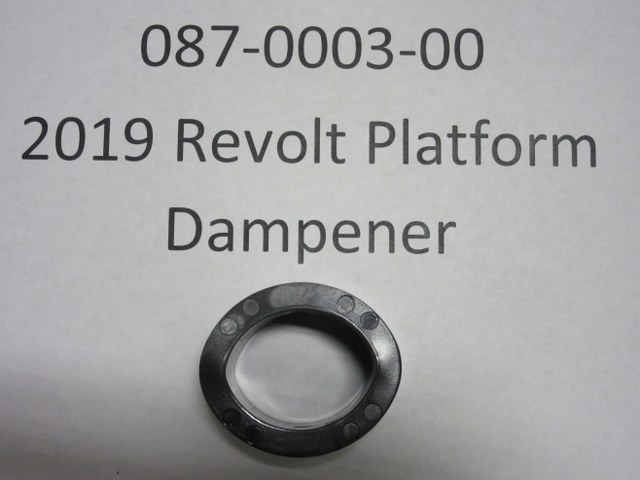

41 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
42 201-1118-20 201-1118-20 - Stand On Platform Support For 61" Models (Not For 36"-54" Models)
$308.99
43 201-1119-20 201-1119-20 - 36" Stand On Platform Support weldment (Not for 48"-61" Models)
$179.99

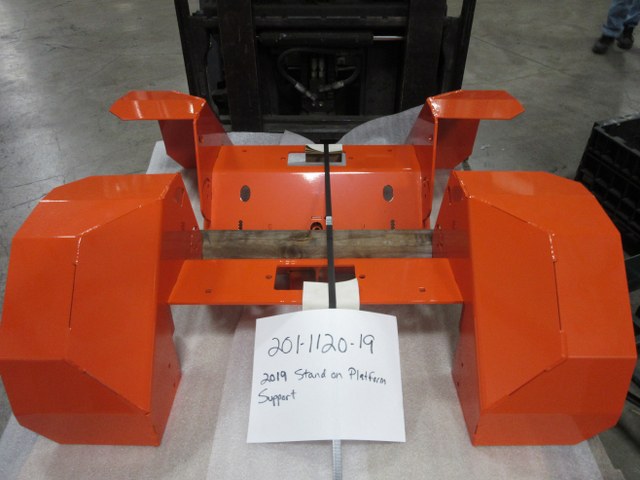

44 201-1120-19 201-1120-19 - 2019-2022 Stand On Platform Support Welded Assembly (For 48" and 54" Models Only)
$584.99
