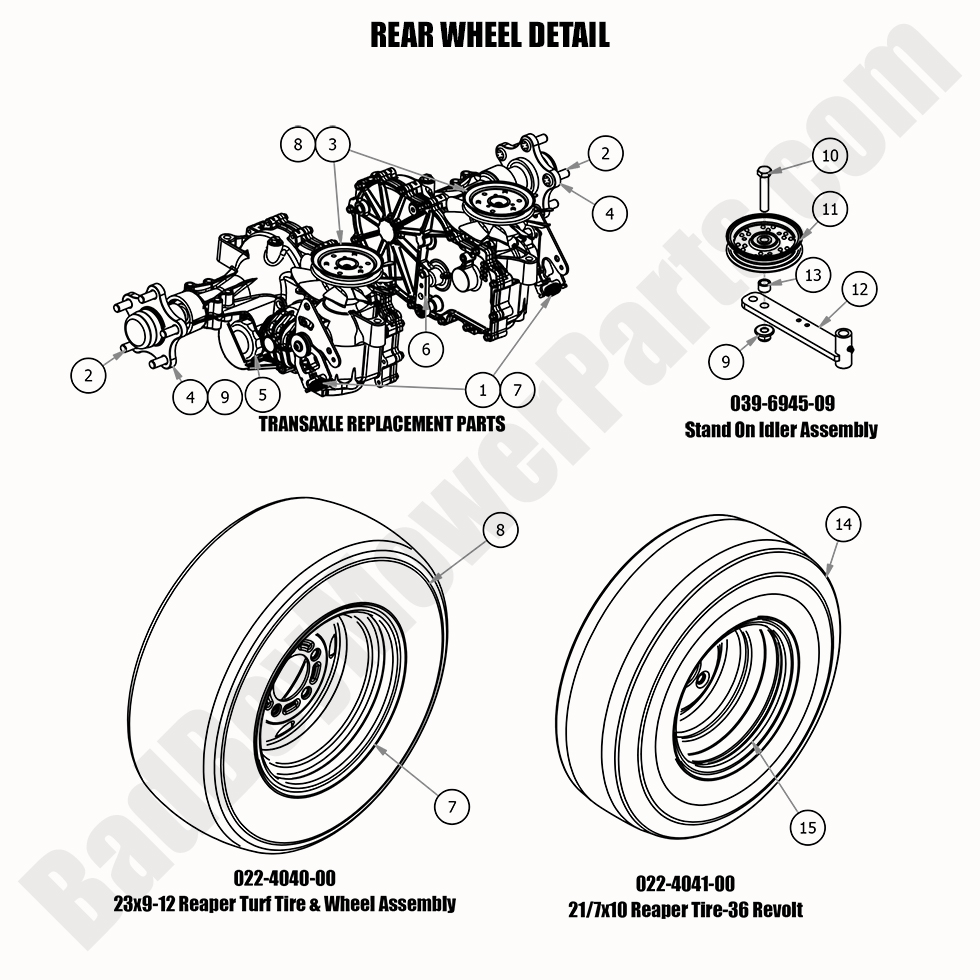

2020 Revolt - Rear Wheel Detail

2020 Revolt - Rear Wheel Detail

The 2020 Revolt Rear Wheel Detail provides valuable information for anyone looking to replace or repair the rear wheels of their Bad Boy Mower. Understanding the specifications and installation process is key to ensuring smooth operation and optimal performance. Our detailed Bad Boy Mower Part diagrams help you identify the exact rear wheel components you need. With a wide selection of Bad Boy Mower Parts, you can be sure you’re getting high-quality parts that are compatible with your machine. Explore the variety of Bad Boy Lawn Mower Parts we offer on BadBoyMowerParts.com, and find the right pieces to keep your mower running like new. Enjoy the convenience of Free Shipping On Orders Over $100 when you purchase Bad Boy Parts Online. Whether you need a single replacement wheel or a full set, we make it easy to get the parts you need.

Bad Boy Mower Parts Lookup

2020 Revolt - Rear Wheel Detail
  Position Number SKU Product Title Price
1 034-1050-00 034-1050-00 - Transaxle Spring for Stand On (See Models Used On For Details)
$7.28
2 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
3 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
4 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
5 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
6 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
7.0 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
7 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
7 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
8 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
8 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
9.0 039-6945-09 039-6945-09 - Pump Idler Assembly
$58.84
9 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
12 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
13 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
14.0 022-4041-00 022-4041-00 - 36" Revolt Reaper Wheel Assy. 21x7x10
$195.99
14 022-4042-00 022-4042-00 - 21x7-10 Reaper Turf Tire Only
$122.99
15 022-4043-00 022-4043-00 - 10 x 7 Black Wheel
$105.99
