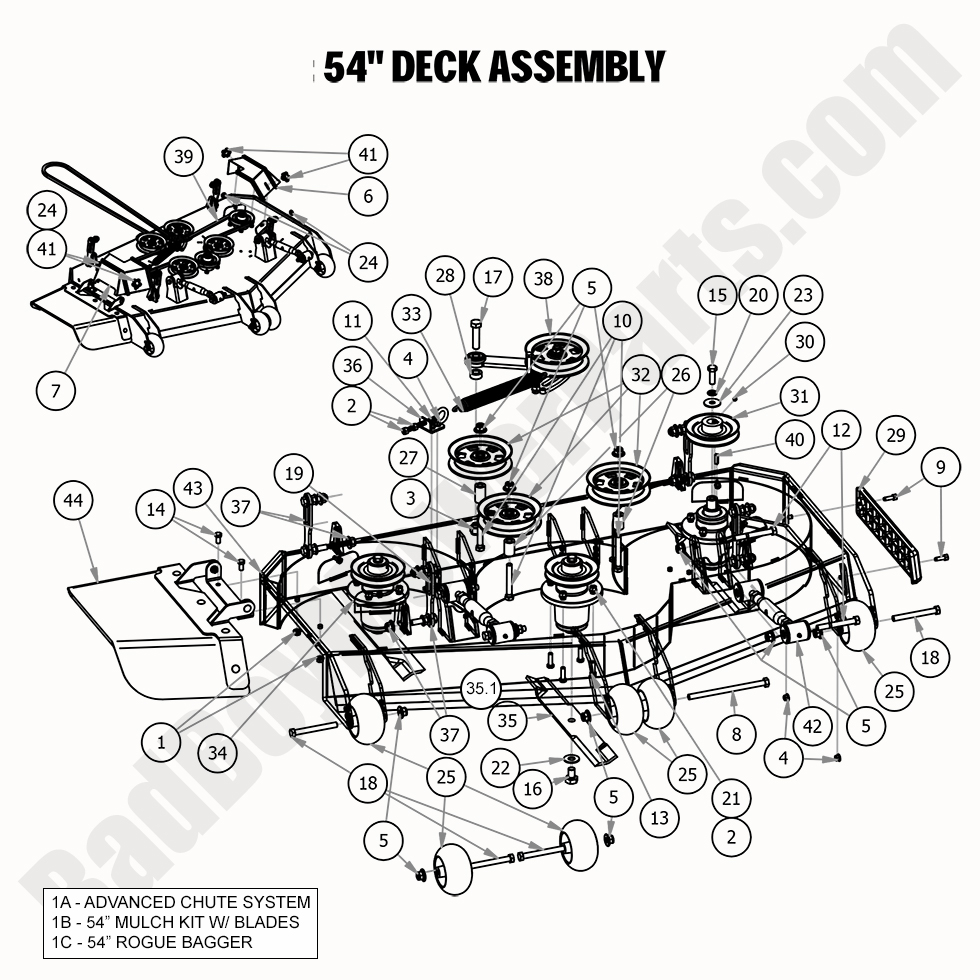

2020 Rogue - 54" Deck Assembly

2020 Rogue - 54" Deck Assembly

For those looking to replace or upgrade their mower deck, our Bad Boy Mower Parts selection includes the 2020 Rogue 54" Deck Assembly. This high-quality deck is designed to provide a clean, precise cut for your mower. At BadBoyMowerParts.com, we offer detailed Bad Boy Mower Part diagrams to help you locate and install the deck with ease. Whether you're dealing with a worn-out deck or need a complete assembly, you’ll find the Bad Boy Lawn Mower Parts you need for your 2020 Rogue. Our website makes it easy to order your parts and have them delivered straight to your door. With Bad Boy Parts Online, you can shop efficiently and enjoy Free Shipping On Orders Over $100. Upgrade your mower with a durable 54" deck and experience superior cutting performance for your lawn care needs.

Bad Boy Mower Parts Lookup

2020 Rogue - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
7 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
39 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
