2020 Rogue - 72" Deck Assembly

2020 Rogue - 72" Deck Assembly

The 2020 Rogue 72" Deck Assembly is available for those who want to tackle larger properties with ease. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts designed for long-lasting performance and precision cutting. Our Bad Boy Mower Part diagrams make it simple to find the components you need to complete the deck assembly on your 2020 Rogue. Whether you’re replacing an old deck or performing maintenance, we have the Bad Boy Lawn Mower Parts necessary to get the job done right. With easy access to Bad Boy Parts Online, you can order your parts quickly and have them delivered right to your door. Take advantage of Free Shipping On Orders Over $100 and experience the convenience of shopping for mower parts online while getting the best prices and quality parts for your 2020 Rogue.

Bad Boy Mower Parts Lookup

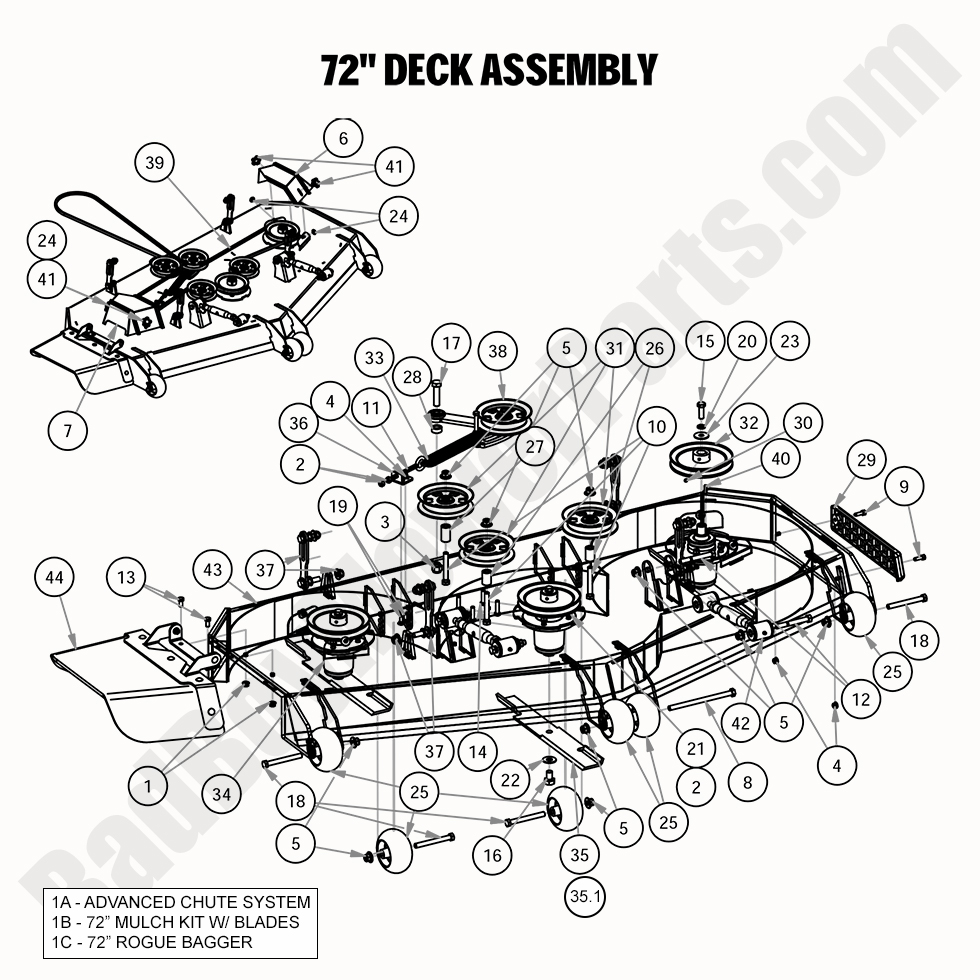

2020 Rogue - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
7 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
35 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
39 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
