2020 Rogue - Deck Height Control - Detail

2020 Rogue - Deck Height Control - Detail

The 2020 Rogue Deck Height Control - Detail is crucial for achieving the perfect cut on your lawn. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts designed to maintain the functionality and precision of your mower. Our Bad Boy Mower Part diagrams provide a detailed view of the parts involved in the deck height control system, allowing for easy identification and installation. Whether you need a new control lever or height adjustment mechanism, we have the Bad Boy Lawn Mower Parts you need for your 2020 Rogue. By shopping Bad Boy Parts Online, you can quickly find the parts you're looking for, and with Free Shipping On Orders Over $100, you'll save on every order. Keep your mower performing at its best with the proper deck height control parts.

Bad Boy Mower Parts Lookup

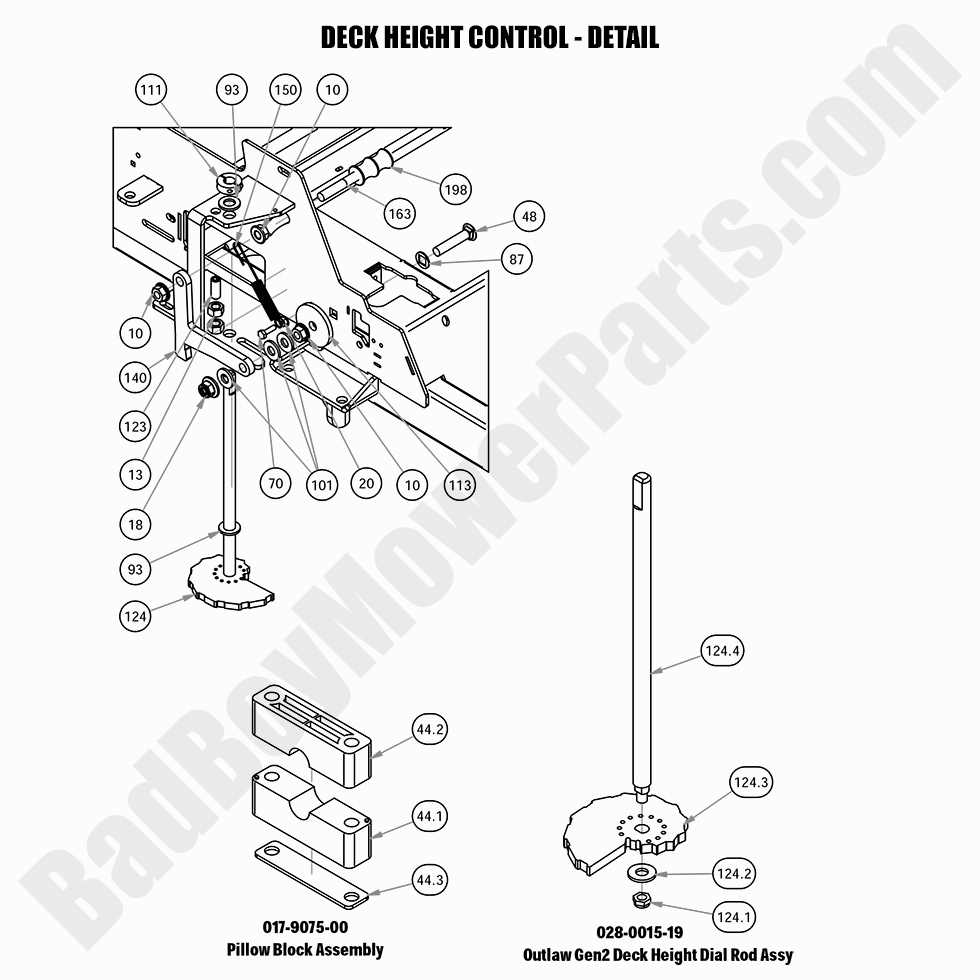

2020 Rogue - Deck Height Control - Detail
  Position Number SKU Product Title Price
10 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
44.0 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
44.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99

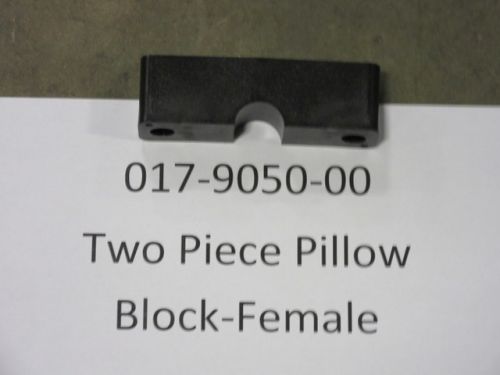

44.2 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
44.3 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09

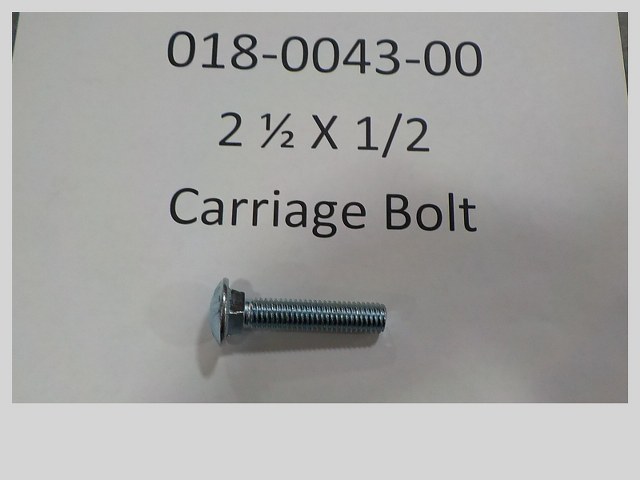

48 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29

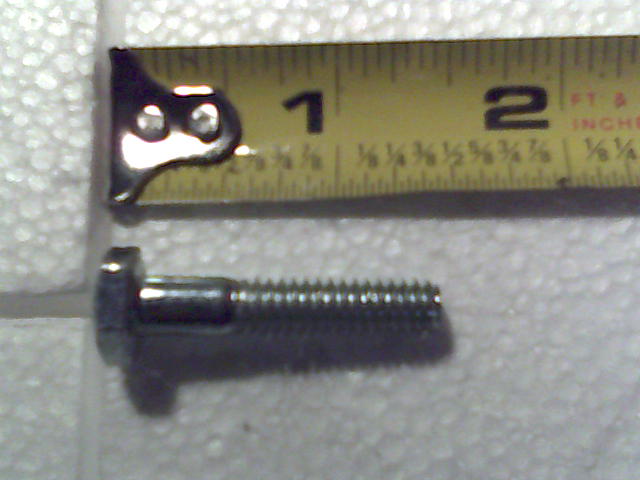

70 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
87 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
93 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
101 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
111 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
113 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28

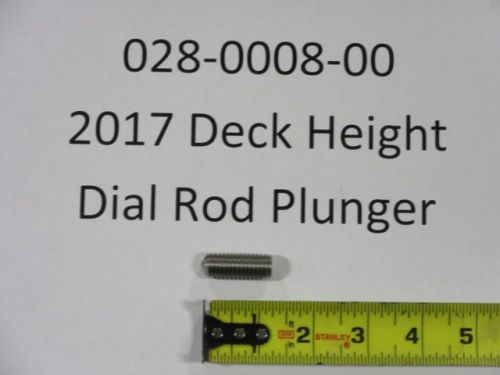

123 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
124.0 028-0015-19 028-0015-19 - Deck Height Dial Rod Assembly 2019-2024 Rebel, Renegade & Rogue
$42.79

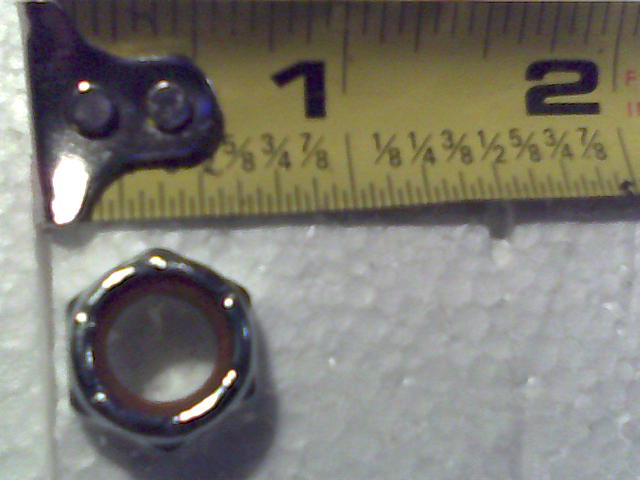

124.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
124.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99

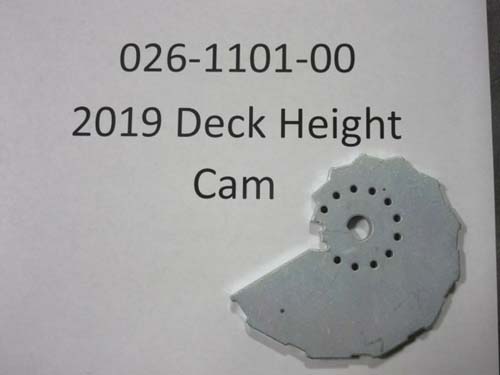

124.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
124.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
140 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39

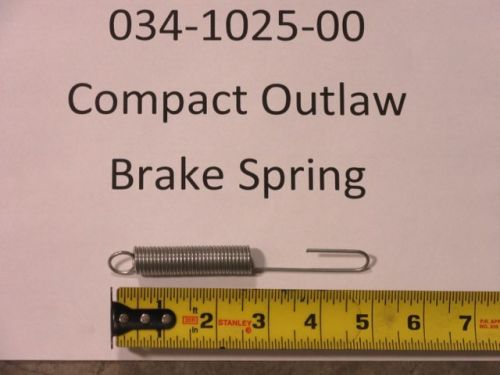

150 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
163 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
198 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
