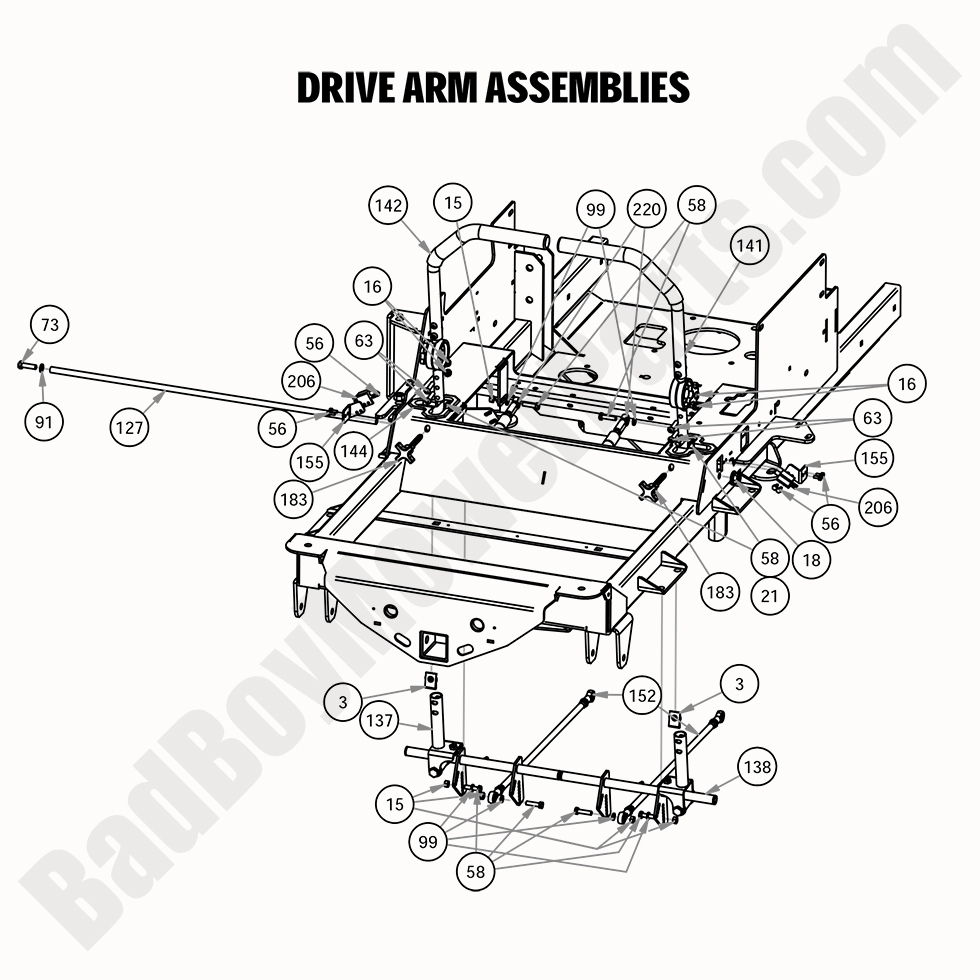

2020 Rogue - Drive Arm Assemblies

2020 Rogue - Drive Arm Assemblies

Ensure your 2020 Rogue operates smoothly with reliable Bad Boy Mower Parts, including 2020 Rogue Drive Arm Assemblies. These assemblies are vital for transferring power from the engine to the wheels, allowing for efficient movement and precise control. At BadBoyMowerParts.com, we provide high-quality replacements for your mower’s drive arm assemblies, so you can get back to mowing with confidence. With our detailed Bad Boy Mower Part diagrams, you can easily identify the exact components needed for your Bad Boy Lawn Mower Parts. Shop Bad Boy Parts Online for a wide range of assemblies and other related components, and enjoy the convenience of Free Shipping On Orders Over $100. Whether you’re performing routine maintenance or replacing a worn assembly, we make it easy to find the right part and ensure your 2020 Rogue is always operating at its best.

Bad Boy Mower Parts Lookup

2020 Rogue - Drive Arm Assemblies
  Position Number SKU Product Title Price
3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
16 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
56 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
58 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
63 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
73 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
91 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
99 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
127 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
137 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
138 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
141 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
142 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
144 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
152 035-0004-00 035-0004-00 - 2019-2022 Rogue Push Rod Assembly
$42.58
155 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
183 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
206 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
220 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
