2020 Rogue - Engine - Yamaha EFI

2020 Rogue - Engine - Yamaha EFI

The 2020 Rogue Engine - Yamaha EFI is a powerful and efficient engine choice for your mower, and BadBoyMowerParts.com has all the parts you need to keep it running at peak performance. From air filters to fuel systems, we offer a wide selection of Bad Boy Mower Parts designed for the Yamaha EFI engine. Our Bad Boy Mower Part diagrams make it easy to find the right Bad Boy Lawn Mower Parts for your 2020 Rogue, ensuring you get the exact components you need. With our user-friendly website, Bad Boy Parts Online allows you to easily order parts and have them shipped directly to you. Plus, enjoy the benefit of Free Shipping On Orders Over $100, ensuring that you get the best deal on top-quality parts for your Yamaha EFI engine.

Bad Boy Mower Parts Lookup

2020 Rogue - Engine - Yamaha EFI
  Position Number SKU Product Title Price

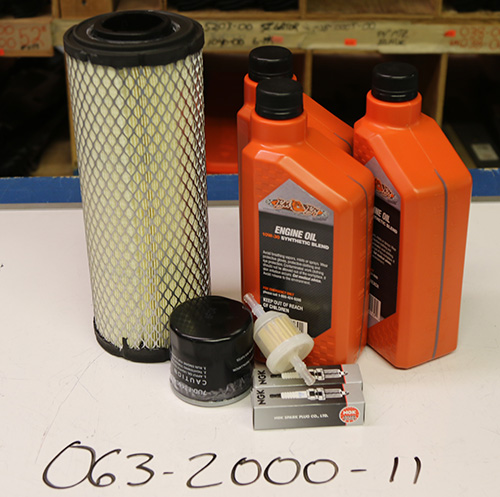

1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
7 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
28.0 015-0053-00 015-0053-00 - Yamaha Engine-33hp (See Models Used On For Details)
$2999.00

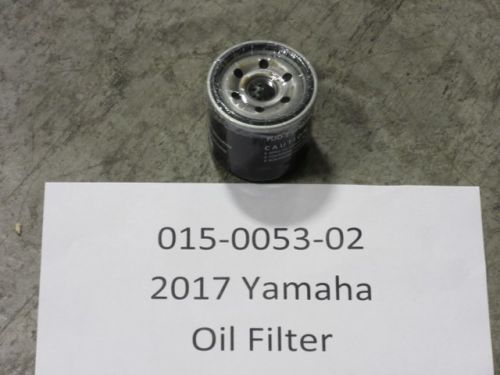

28.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23

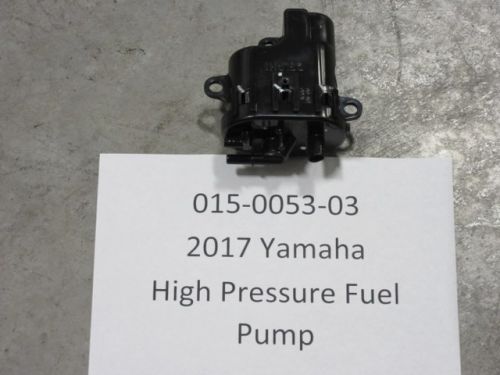

28.2 015-0053-03 015-0053-03 - 2017-2022 Yamaha High Pressure Fuel Pump
$569.99

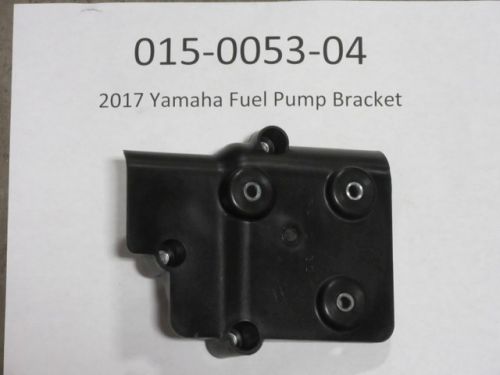

28.3 015-0053-04 015-0053-04 - Yamaha Fuel Pump Bracket
$53.49

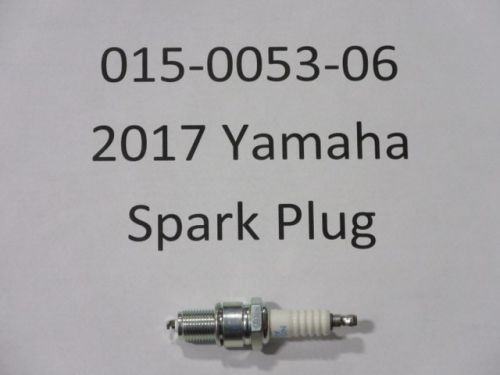

28.4 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99

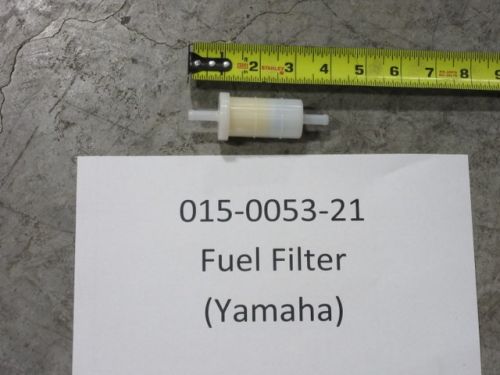

28.5 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
28.6 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
28.7 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65

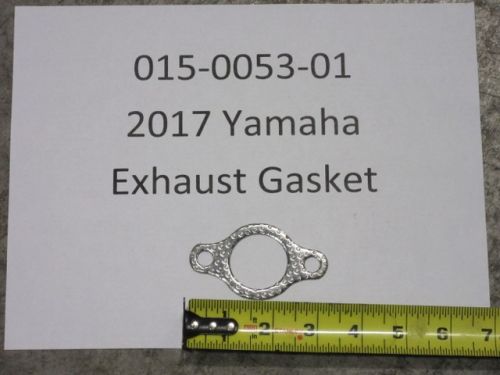

29 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01

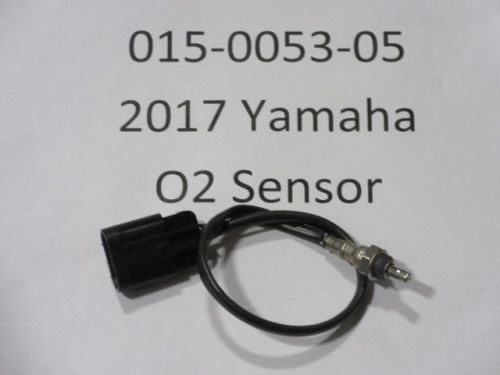

30 015-0053-05 015-0053-05 - Yamaha O2 Sensor
$256.99

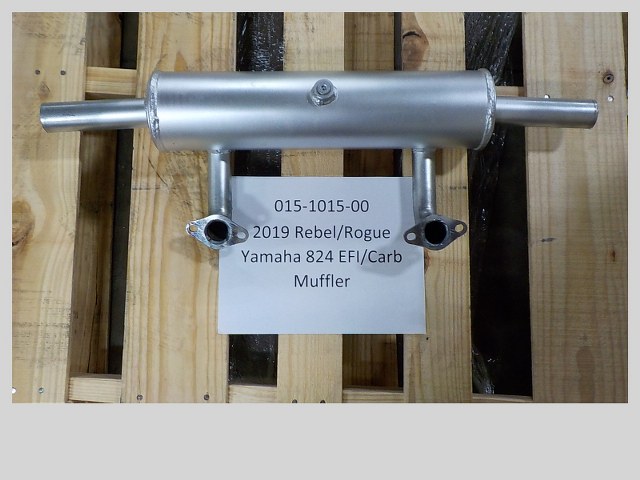

36 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
55 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
76 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
81 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
94 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
99 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
100 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
149 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
157 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
159 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99

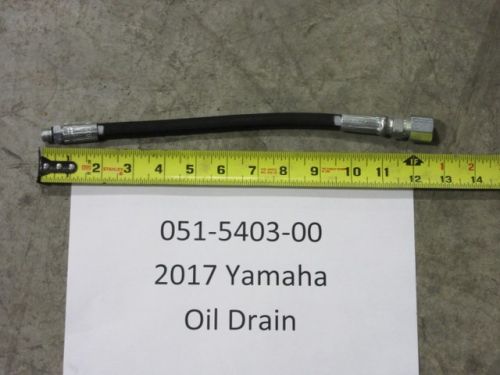

175 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84

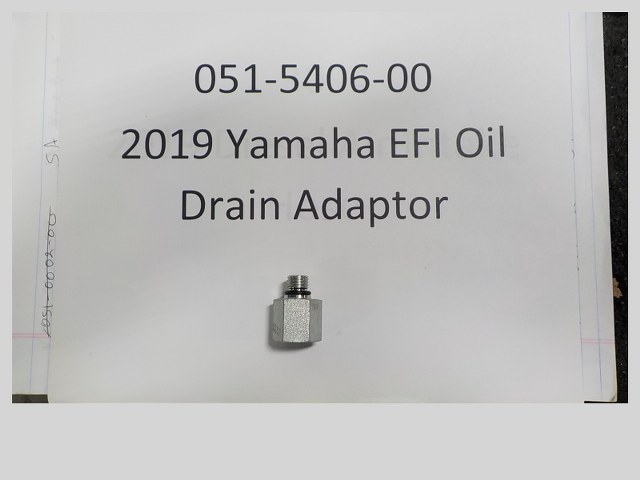

176 051-5406-00 051-5406-00 - Yamaha EFI Oil Drain Adaptor 2019-2021 Rogue
$21.28
184 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
187 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
201 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
202 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
215 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21

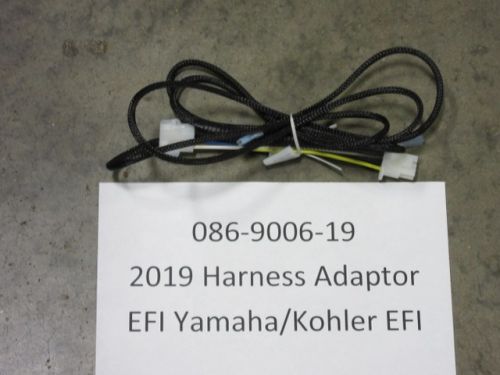

218 086-9006-19 086-9006-19 - 2019-2021 Wiring Harness Adaptor-Yamaha & Kohler EFI
$42.58
