2020 Rogue - Engine - Kawasaki FX850

2020 Rogue - Engine - Kawasaki FX850

For the 2020 Rogue, the Kawasaki FX850 engine offers outstanding power and efficiency. At BadBoyMowerParts.com, we provide a complete range of Bad Boy Mower Parts for this high-performance engine, ensuring your mower runs at its best. From air filters to fuel pumps, our Bad Boy Mower Part diagrams help you locate exactly what you need for your Bad Boy Lawn Mower Parts. Whether you're performing regular maintenance or need a quick repair, our online store has you covered with the right components for your 2020 Rogue. When you shop Bad Boy Parts Online, you can rest easy knowing you're getting the best parts, and with Free Shipping On Orders Over $100, your order will arrive quickly at no additional cost. Keep your Kawasaki FX850 engine performing like new with top-quality parts.

Bad Boy Mower Parts Lookup

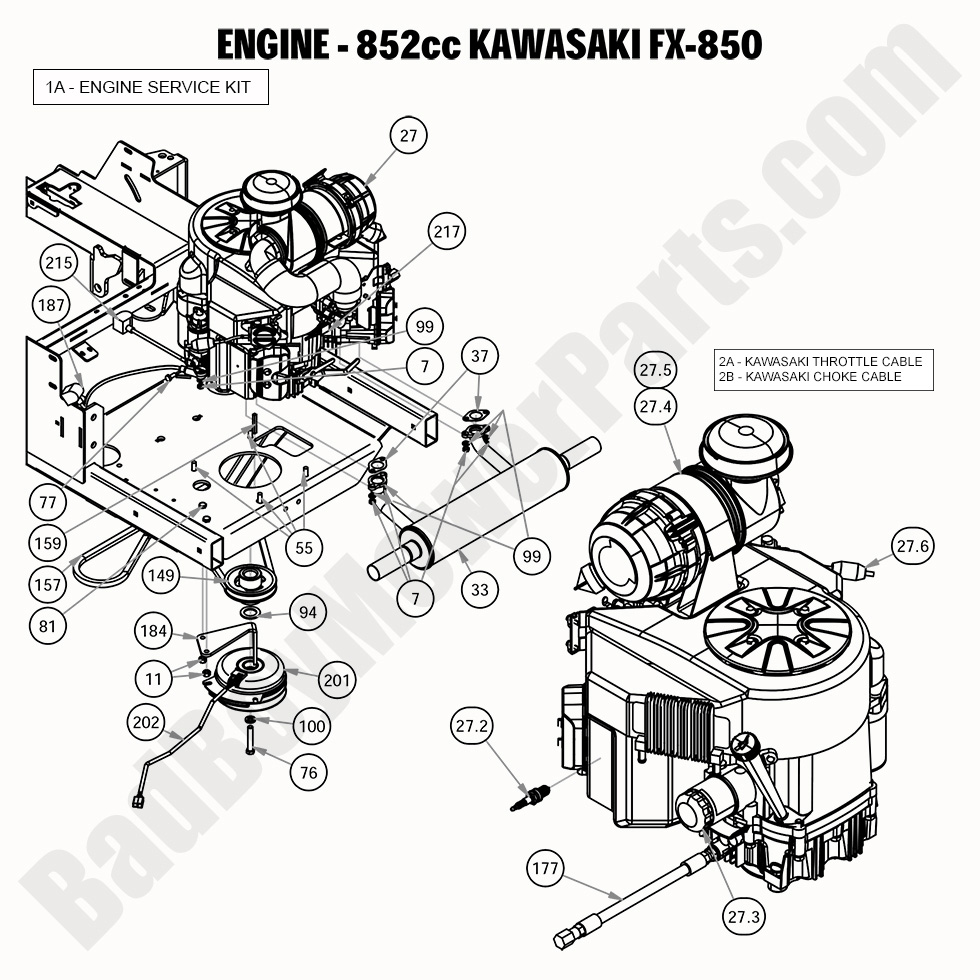

2020 Rogue - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
7 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27.0 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
27.2 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
27.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
27.4 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
27.5 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
27.6 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
33 015-1011-00 015-1011-00 - Kawasaki FX850 Muffler for Rebel/Rebel X and Rogue
$199.00
37 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
55 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
76 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
77 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
81 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
94 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
99 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
100 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
149 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
157 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
159 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
177 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
184 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
187 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
201 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
202 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
215 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
217 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
