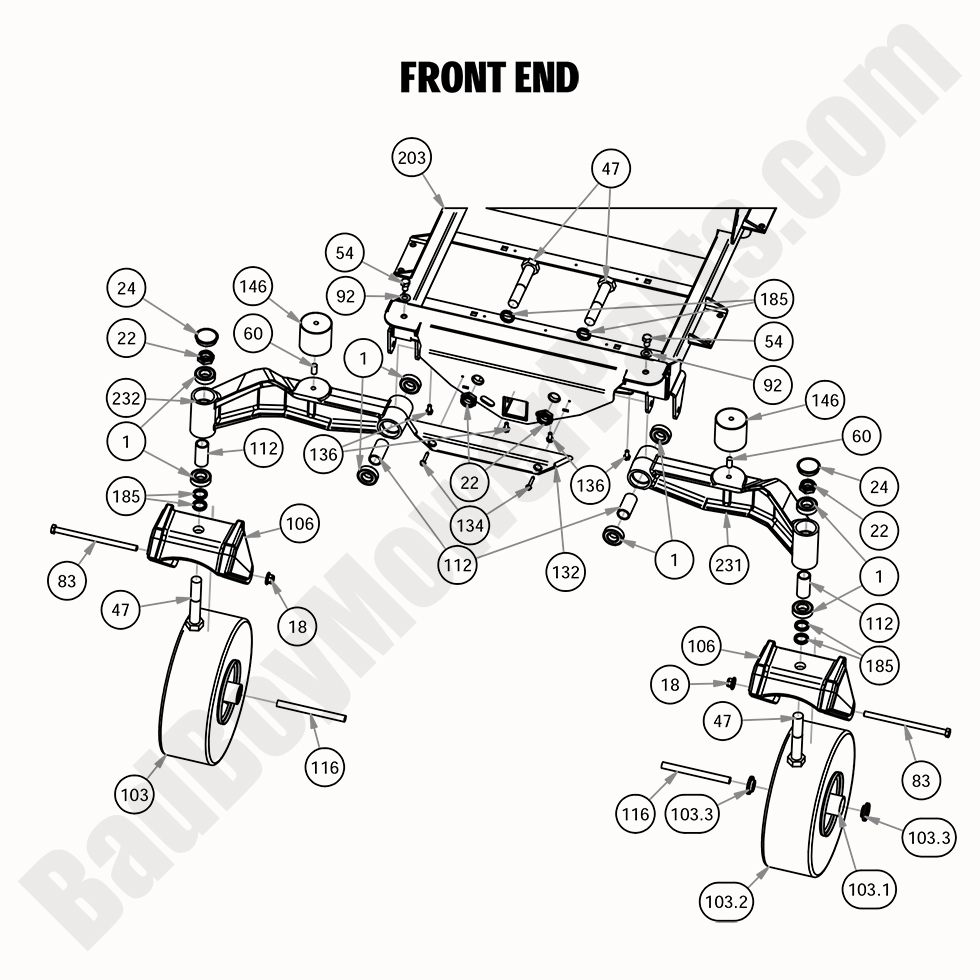

2020 Rogue - Front End

2020 Rogue - Front End

The 2020 Rogue Front End plays a crucial role in the stability and maneuverability of your mower. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts designed to maintain and repair the front end of your mower. Whether you need a replacement axle, steering components, or front frame parts, we’ve got you covered. Our detailed Bad Boy Mower Part diagrams help you easily locate the exact components required to keep your 2020 Rogue performing at its best. With a full range of Bad Boy Lawn Mower Parts, you can maintain the durability and function of your mower's front end. Shop Bad Boy Parts Online to find everything you need for your mower’s maintenance and enjoy Free Shipping On Orders Over $100. Keep your 2020 Rogue running smoothly with high-quality front end parts, ensuring reliable performance season after season.

Bad Boy Mower Parts Lookup

2020 Rogue - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
47 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
54 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
60 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
83 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
92 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
103.0 022-0002-00 022-0002-00 - Front Tire Assembly - 15x6-6
$144.99
103.1 022-0005-00 022-0005-00 - 6x4.5 Wheel
$78.10
103.2 022-0004-00 022-0004-00 - 15x6-6 Tire Only
$85.59
103.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
106 023-0004-00 023-0004-00 - 2019-2020 Renegade & Rogue Front Fork
$169.99
112 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
116 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
132 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
134 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
136 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
146 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
185 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
203 070-5372-19 070-5372-19 - 2019-2021 Vertical Suspension Frame Welded Assembly
$1461.53
231 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
232 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
