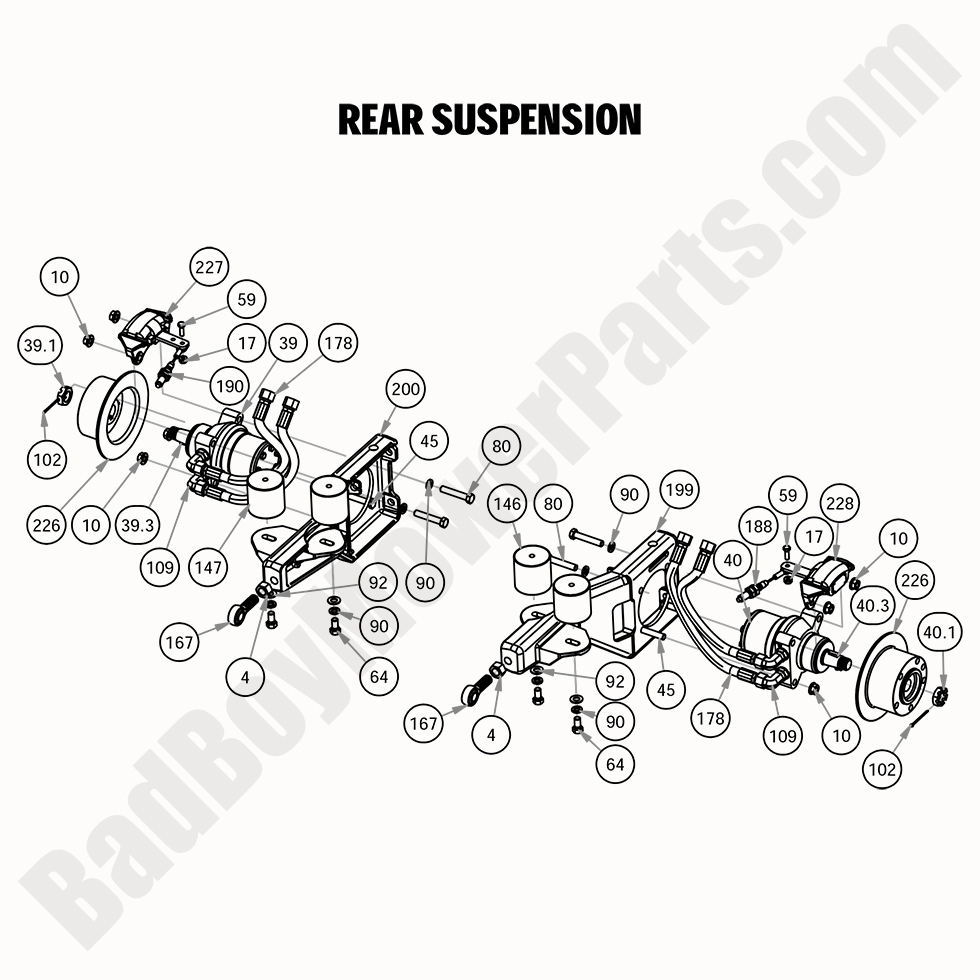

2020 Rogue - Rear Suspension

2020 Rogue - Rear Suspension

For improved ride quality and handling, the 2020 Rogue Rear Suspension is a key component. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to maintain and repair your mower’s rear suspension system. Whether you need replacement shock absorbers or suspension arms, we have the parts necessary to keep your 2020 Rogue performing at its best. Our Bad Boy Mower Part diagrams make it easy to find the specific components you need, ensuring a perfect fit. By choosing Bad Boy Lawn Mower Parts, you’re ensuring that your rear suspension system continues to deliver smooth, comfortable rides even on rough terrain. Shop Bad Boy Parts Online to easily find the parts you need, and enjoy the benefit of Free Shipping On Orders Over $100. Keep your mower’s rear suspension in top condition for an improved mowing experience.

Bad Boy Mower Parts Lookup

2020 Rogue - Rear Suspension
  Position Number SKU Product Title Price
4 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
10 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39.0 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
39.1 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
39.3 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
40.0 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
45 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
59 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
64 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
80 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
90 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
92 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
102 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
109 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
146 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
147 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
167 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
178 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
188 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
190 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
199 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
200 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
226 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
227 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
228 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
