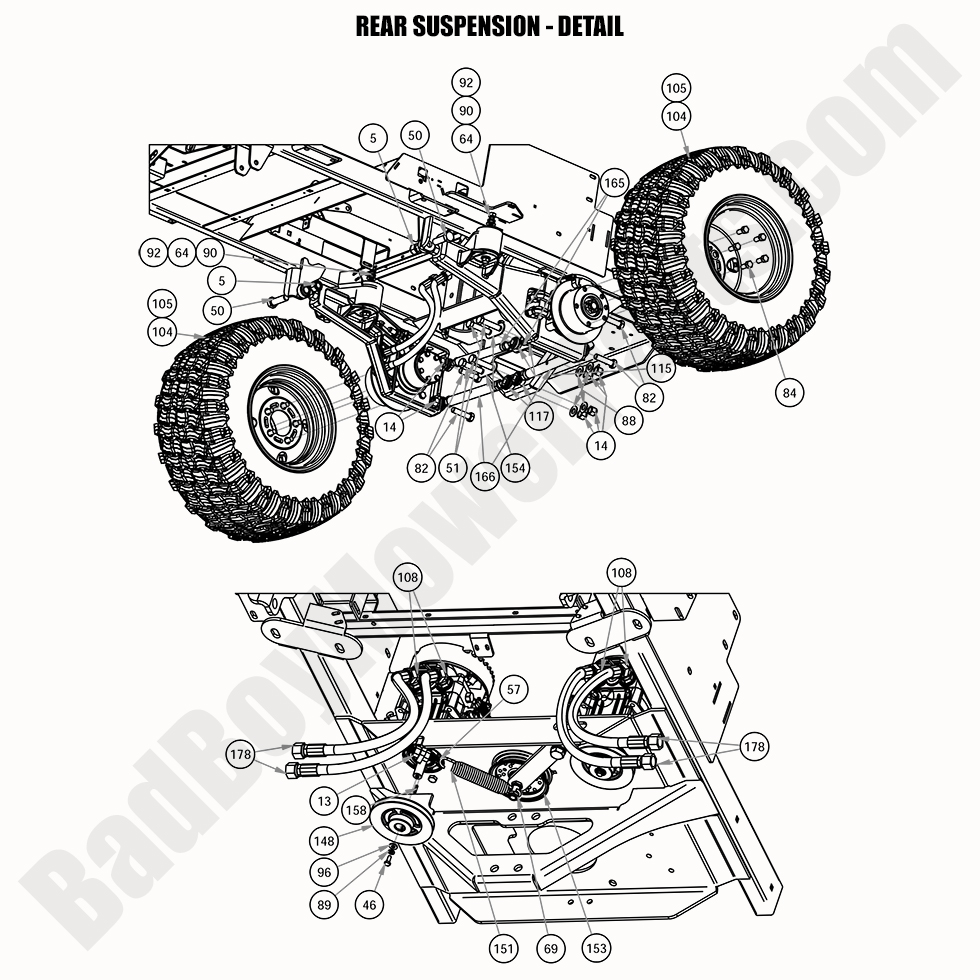

2020 Rogue - Rear Suspension - Detail

2020 Rogue - Rear Suspension - Detail

The 2020 Rogue Rear Suspension - Detail is designed to enhance the performance and comfort of your mower. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to keep your rear suspension in excellent working condition. From shock absorbers to suspension mounts, our Bad Boy Mower Part diagrams will help you find the right part for your 2020 Rogue. These parts are vital for ensuring smooth operation and reducing the impact on rough terrain. We provide Bad Boy Lawn Mower Parts that are built for durability and performance, ensuring long-term reliability. By shopping Bad Boy Parts Online, you can easily order the parts you need for your 2020 Rogue and enjoy Free Shipping On Orders Over $100. Take advantage of our convenient service and get your suspension components replaced with ease.

Bad Boy Mower Parts Lookup

2020 Rogue - Rear Suspension - Detail
  Position Number SKU Product Title Price
5 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
50 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
51 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
57 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
64 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
69 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
82 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
84 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
88 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
89 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
90 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
92 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
96 025-0034-00 025-0034-00 - Rogue Pump Washer
$4.39
104 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
105 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
108 024-2051-00 024-2051-00 - 2019-2025 Rogue 45 Degree Pump Fitting # 6802-10-08
$14.04
115 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
117 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
148 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
151 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
153 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
154 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
158 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
165 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
166 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
178 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
