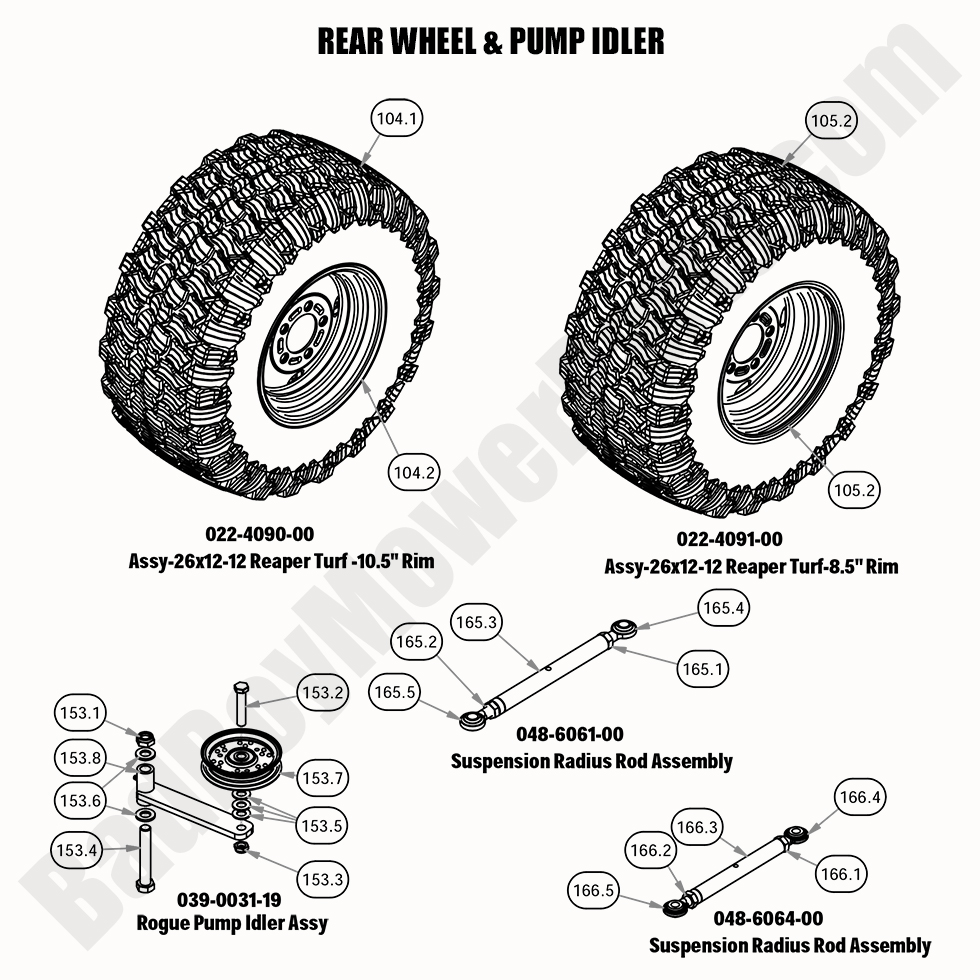

2020 Rogue - Rear Wheel & Pump Idler

2020 Rogue - Rear Wheel & Pump Idler

The 2020 Rogue Rear Wheel & Pump Idler plays an important role in the efficiency and maneuverability of your mower. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to ensure that these critical components continue to operate smoothly. Whether you're looking for replacement rear wheels or pump idlers, our inventory has everything you need. Our Bad Boy Mower Part diagrams will help you quickly identify the parts for your 2020 Rogue, making it easy to replace worn-out or damaged components. With Bad Boy Lawn Mower Parts, you can trust that your mower will be back in action in no time. Shop Bad Boy Parts Online for convenience, and enjoy Free Shipping On Orders Over $100. Keep your 2020 Rogue in top condition with reliable rear wheel and pump idler parts that enhance performance and durability.

Bad Boy Mower Parts Lookup

2020 Rogue - Rear Wheel & Pump Idler
  Position Number SKU Product Title Price
104.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
104.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
104.2 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
105.0 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
105.1 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
153.0 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
153.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
153.2 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
153.3 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
153.4 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
153.5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
153.6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
153.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
153.8 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06
165.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
165.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
165.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
165.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
165.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
165.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
166.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
166.2 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
166.3 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
166.4 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
166.5 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
