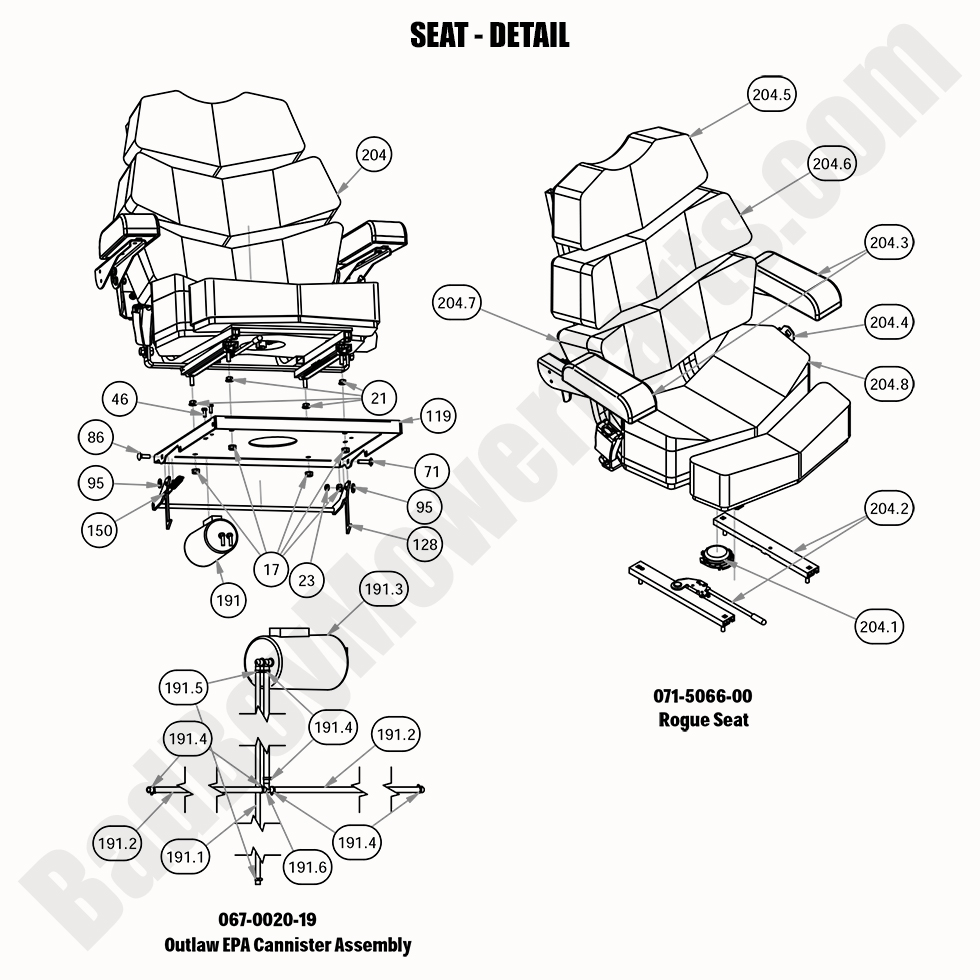

2020 Rogue - Seat  - Detail

2020 Rogue - Seat - Detail

Comfort and support are essential when operating your 2020 Rogue, and the 2020 Rogue Seat - Detail ensures that you have both. At BadBoyMowerParts.com, we offer high-quality seats and seat components to keep your mower comfortable and functional. Whether you need to replace a worn-out seat or upgrade to a more comfortable option, we provide a variety of Bad Boy Mower Parts to suit your needs. Our detailed Bad Boy Mower Part diagrams help you locate the right parts for your mower’s seat, ensuring proper fitment and comfort. With Bad Boy Lawn Mower Parts, you can be sure that your 2020 Rogue will provide a smooth, enjoyable ride. Bad Boy Parts Online makes shopping easy, and with Free Shipping On Orders Over $100, you’ll save on your order. Keep your seat in great shape for a more comfortable mowing experience.

Bad Boy Mower Parts Lookup

2020 Rogue - Seat  - Detail
  Position Number SKU Product Title Price
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
23 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
71 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
86 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
95 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
119 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
128 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
150 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
191.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
191.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
191.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
191.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
191.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
191.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
191.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
201 071-5066-00 071-5066-00 - 2019-2021 Rogue Seat
$729.99
204.2 071-5015-00 071-5015-00 - Seat Rails
$93.69
204.3 071-5071-00 071-5071-00 - Arm Rest Kit for 071-5066-00 (See Models Used On For Details)
$197.99
204.4 071-5072-00 071-5072-00 - Seat Belt for 071-5066-00
$132.69
204.5 071-5085-00 071-5085-00 - Back Pad #1 for 071-5066-00 (See Models Used On For Details)
$223.99
204.6 071-5086-00 071-5086-00 - Back Pad # 2 for 071-5066-00
$223.99
204.7 071-5087-00 071-5087-00 - Back Pad # 3 for 071-5066-00
$232.99
204.8 071-5088-00 071-5088-00 - Seat Pad Assembly for 071-5066-00
$245.99
