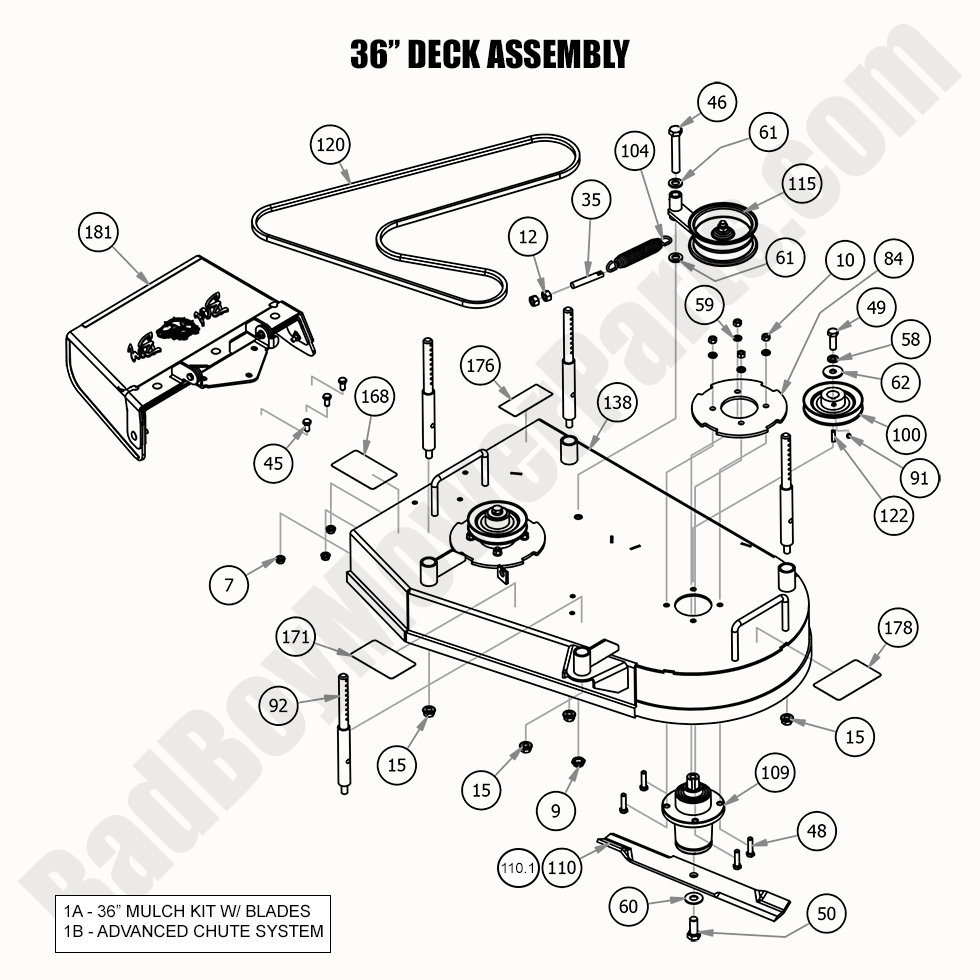

2020 Walk Behind - 36" Deck Assembly

2020 Walk Behind - 36" Deck Assembly

The 2020 Walk Behind 36" Deck Assembly is an essential part for maintaining your mower’s cutting performance. If you're looking for Bad Boy Mower Parts to replace or upgrade your deck, you’ve come to the right place. At BadBoyMowerParts.com, we offer a detailed breakdown of the Bad Boy Mower Part diagrams to ensure you get the right deck assembly. The Bad Boy Lawn Mower Parts for the 36" deck are designed for durability and high performance, ensuring your mower delivers a clean, even cut every time. Bad Boy Parts Online offers easy access to all the deck components, from blades to spindles, and you can conveniently shop for what you need. Plus, with Free Shipping On Orders Over $100, you can replace your 2020 Walk Behind 36" Deck Assembly without the extra cost of shipping, helping you maintain your mower’s reliability without breaking the bank.

Bad Boy Mower Parts Lookup

2020 Walk Behind - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
35 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
45 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
50 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
60 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
61 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
62 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
84 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
92 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
100 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
104 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
110.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
110 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
115 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
120 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
122 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
138 060-3600-00 060-3600-00 - 36" Welded Assembly
$599.99
168 091-0023-00 091-0023-00 - 36" Deck Height Adjustment Decal
$20.32
171 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
176 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
178 091-3601-18 091-3601-18 - 2018-2022 36" Deck Decal
$8.79
181 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
