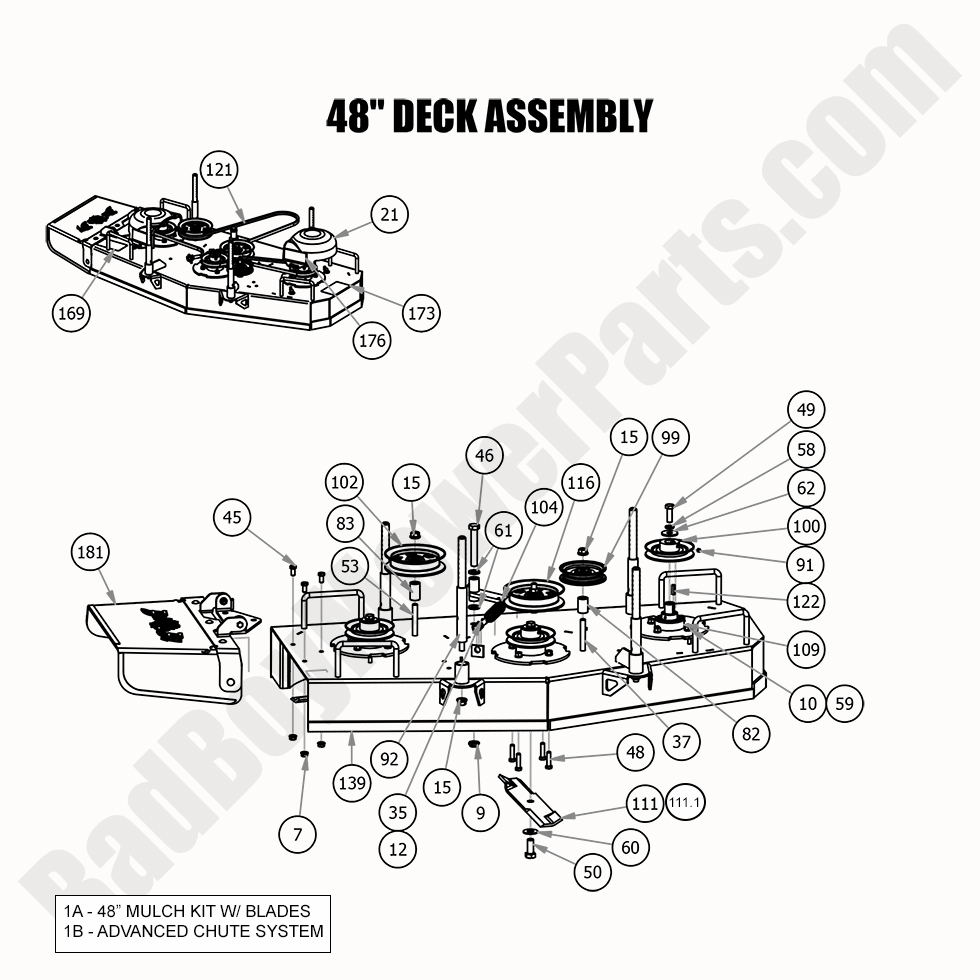

2020 Walk Behind - 48" Deck Assembly

2020 Walk Behind - 48" Deck Assembly

The 2020 Walk Behind 48" Deck Assembly is a robust component that plays a key role in the overall performance of your mower. Designed to provide excellent cutting power, this deck assembly can be easily maintained with the right Bad Boy Mower Parts. Whether you need to replace the blades, spindles, or other deck components, we have everything you need at BadBoyMowerParts.com. With detailed Bad Boy Mower Part diagrams, finding the correct parts for the 48" deck is simple. We offer a variety of Bad Boy Lawn Mower Parts to keep your mower running at its peak performance. Bad Boy Parts Online ensures you can easily order and receive your parts, and with Free Shipping On Orders Over $100, it’s a cost-effective solution for all your mower needs. Upgrade or replace your 2020 Walk Behind 48" Deck Assembly with confidence and get back to mowing.

Bad Boy Mower Parts Lookup

2020 Walk Behind - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
35 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
37 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
45 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
50 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
53 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
60 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
61 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
62 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
82 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
83 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
92 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
99 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
100 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
102 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
104 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
111.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
111 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
116 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
121 041-8055-00 041-8055-00 - 48" Walk Behind Deck Belt
$85.59
122 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
139 060-3648-00 060-3648-00 - 2020 48" Walkbehind Deck Assembly-Painte No Longer Available
Obsolete.
173 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
176 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
181 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
