2020 Walk Behind - 54" Deck Assembly

2020 Walk Behind - 54" Deck Assembly

If you're in need of a 2020 Walk Behind 54" Deck Assembly, look no further than BadBoyMowerParts.com. This heavy-duty deck assembly is designed for larger areas, providing a wide cutting path to improve efficiency. With Bad Boy Mower Part diagrams, finding the right Bad Boy Lawn Mower Parts for your deck assembly is made easy, helping you get the most out of your equipment. Whether you need a new blade or other deck components, we offer a comprehensive selection of parts to suit your needs. Shopping for Bad Boy Parts Online ensures a hassle-free experience, allowing you to browse and order with ease. And remember, with Free Shipping On Orders Over $100, you can replace your 2020 Walk Behind 54" Deck Assembly without worrying about extra shipping costs, getting your mower back into action sooner while saving money.

Bad Boy Mower Parts Lookup

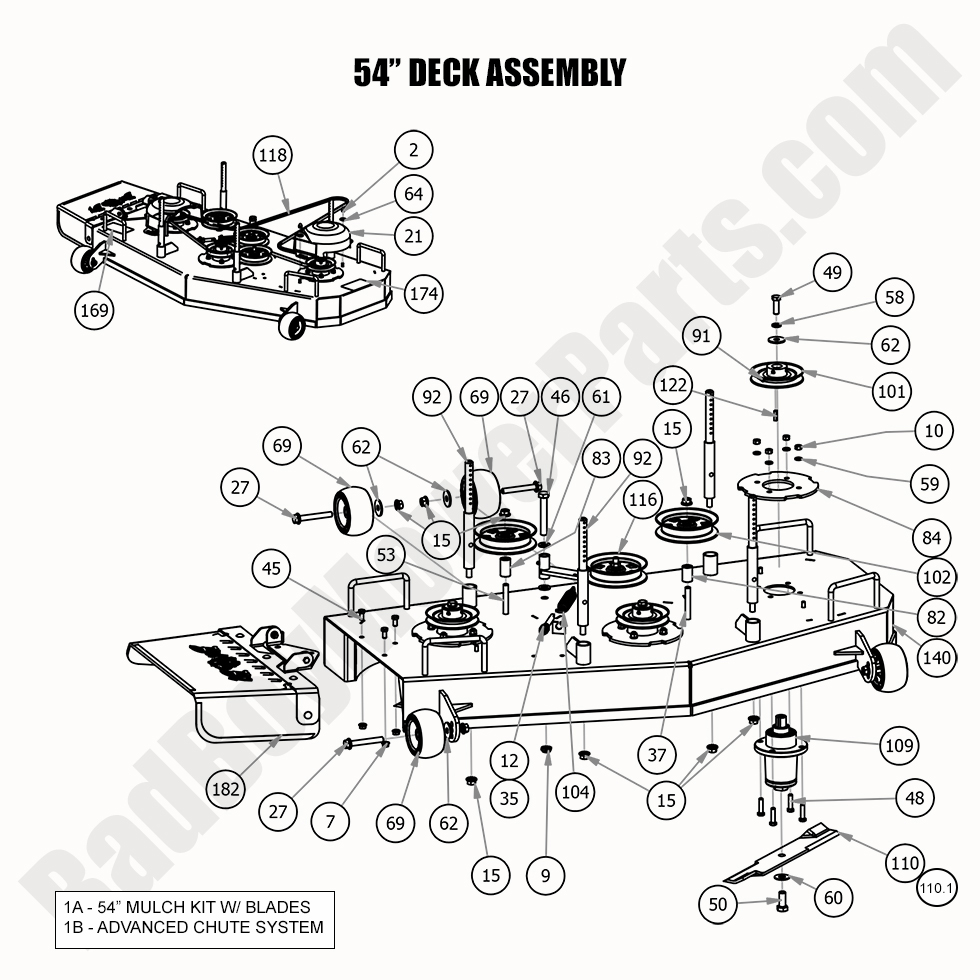

2020 Walk Behind - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
27 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
37 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
45 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
50 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
53 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
60 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
61 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
62 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
64 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
69 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
82 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
83 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
84 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
92 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
101 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
102 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
104 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
110.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
110 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
116 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
118 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
122 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
174 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
182 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
