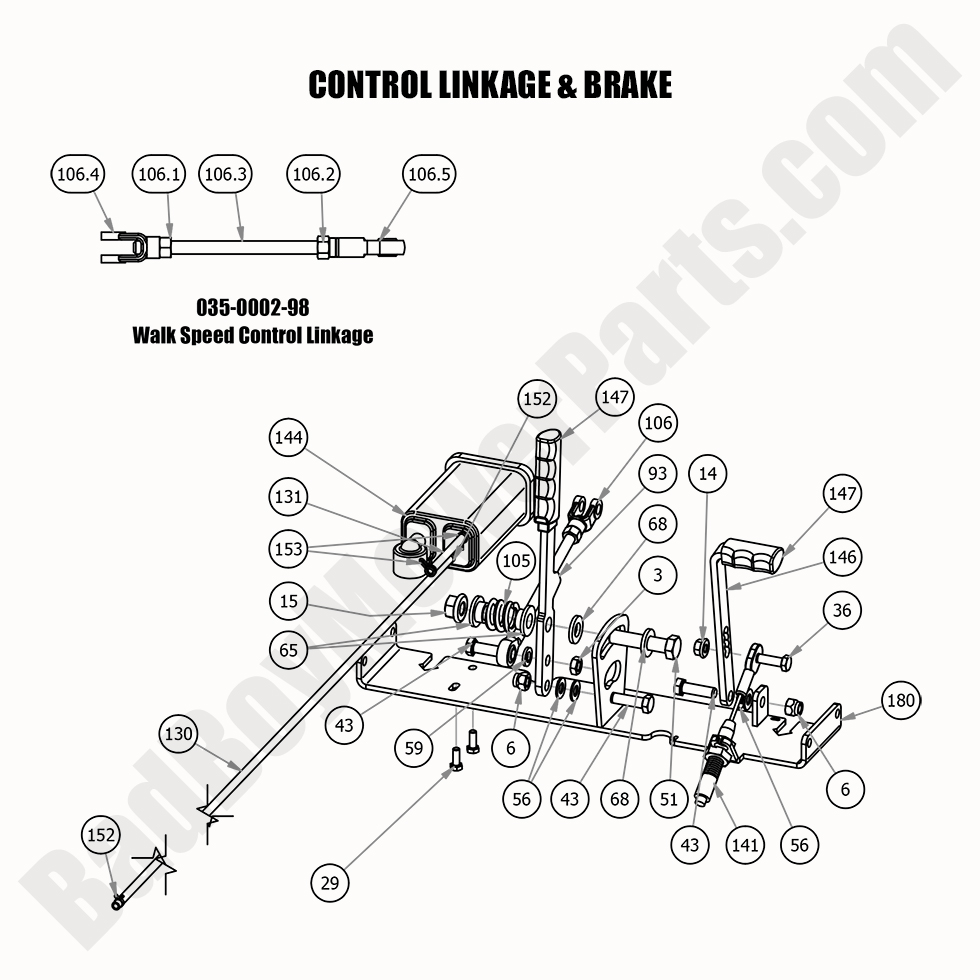

2020 Walk Behind - Control Linkage & Brake

2020 Walk Behind - Control Linkage & Brake

Ensure your 2020 Walk Behind Control Linkage & Brake system functions at its best with high-quality replacement parts from BadBoyMowerParts.com. We offer a wide selection of Bad Boy Mower Parts specifically designed to keep your mower operating safely and efficiently. Whether you're replacing the control linkage or upgrading the brake system, we have the right parts for the job. With our easy-to-follow Bad Boy Mower Part diagrams, you can quickly identify the necessary components for repairs. Plus, you can trust that our Bad Boy Lawn Mower Parts will provide long-lasting reliability. Shopping Bad Boy Parts Online makes it convenient to purchase parts from home, and don’t forget the benefit of Free Shipping On Orders Over $100, making your mower maintenance more affordable. Get your 2020 Walk Behind Control Linkage & Brake components today and enjoy worry-free mowing.

Bad Boy Mower Parts Lookup

2020 Walk Behind - Control Linkage & Brake
  Position Number SKU Product Title Price
3 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
29 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
36 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
43 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
51 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
56 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
65 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
68 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
93 031-0036-00 031-0036-00 - Walk Behind Speed Control Lever
$10.99
105 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
106.0 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
106.2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
106.3 035-0002-00 035-0002-00 - Walk Behind Speed Control Rod (See Models Used On For Detail)
$17.07
106.4 046-0001-00 046-0001-00 - Walk Behind Left Hand Yoke Speed Control
$10.99
106.5 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
130 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
131 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
141 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
144 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
146 069-2020-00 069-2020-00 - Walk Behind Brake Handle
$8.79
147 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
152 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
153 072-8075-00 072-8075-00 - 8.6 Mm Hose Clamp
$3.62
180 201-1171-00 201-1171-00 - 2020 Walk Behind Cross Support--Orange No Longer Available
Obsolete.
