2020 Walk Behind - Podium Assembly

2020 Walk Behind - Podium Assembly

The 2020 Walk Behind Podium Assembly is an essential component that provides the framework for your mower’s operation. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts to replace or upgrade your podium assembly. With our clear Bad Boy Mower Part diagrams, you can quickly find the exact parts needed for maintenance or repairs. Whether you need bolts, brackets, or other related components, we have you covered with top-quality Bad Boy Lawn Mower Parts. Our easy-to-use online platform allows you to shop for Bad Boy Parts Online, ensuring you find the right parts without hassle. And with Free Shipping On Orders Over $100, it’s even more affordable to keep your mower in great working condition. Upgrade or replace your 2020 Walk Behind Podium Assembly and ensure a smoother mowing experience every time.

Bad Boy Mower Parts Lookup

2020 Walk Behind - Podium Assembly
  Position Number SKU Product Title Price
5 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29

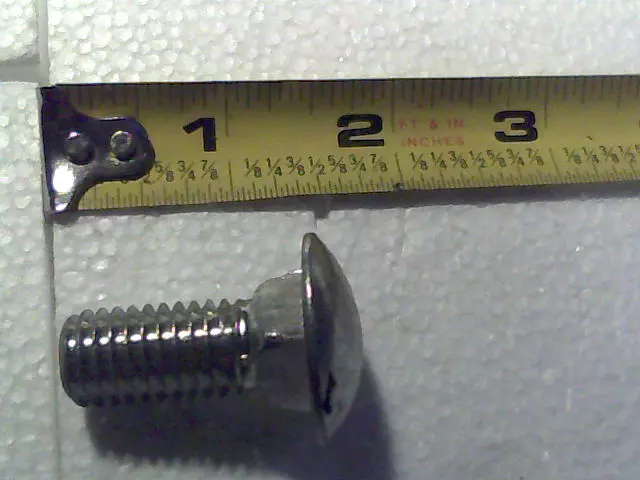

39 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
44 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
54 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
55 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
57 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
63 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

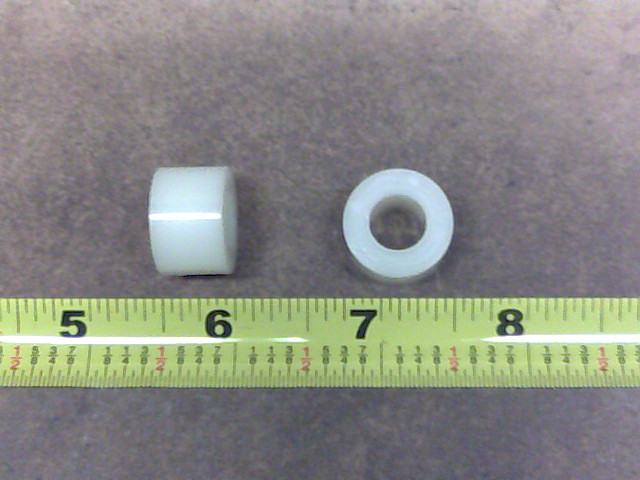

80 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99

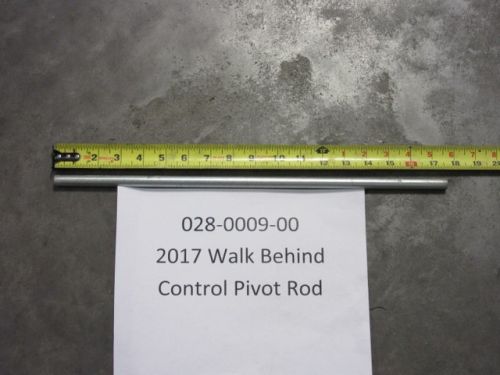

88 028-0009-00 028-0009-00 - Walk Behind & Raider Control Pivot Rod
$31.17

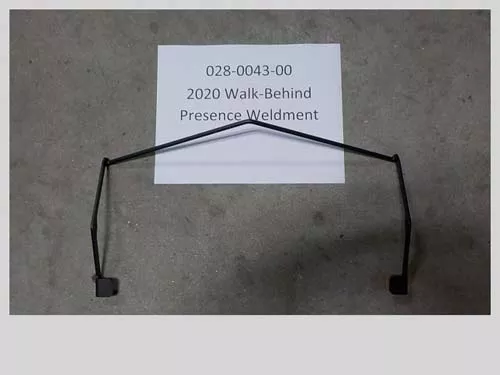

89 028-0043-00 028-0043-00 - 2020 Walk-Behind Presence-Weldment
$21.39

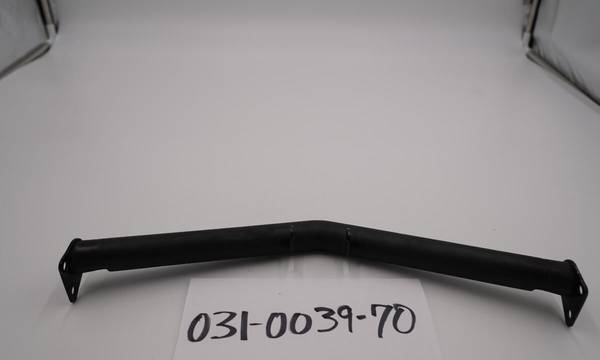

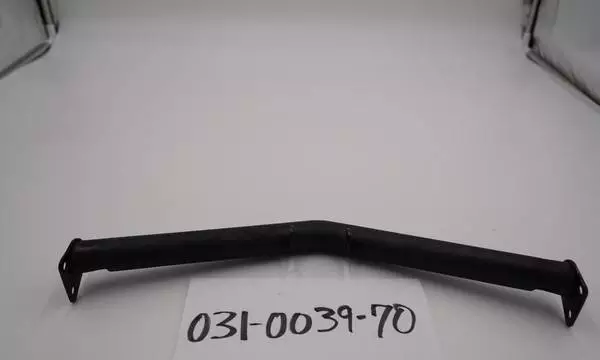

94 031-0039-70 031-0039-70 - 2020-2022 Walkbehind Overmolded Bolt on Handle
$64.19

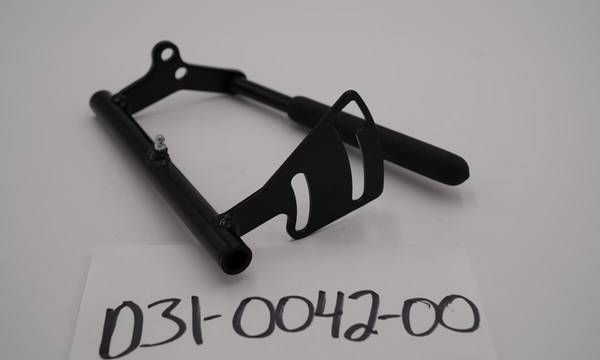

95 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58

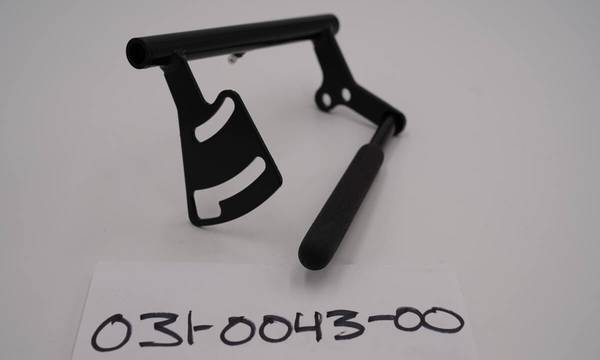

96 031-0043-00 031-0043-00 - Walk-Behind & Raider Control Lever Assy-Right
$42.58

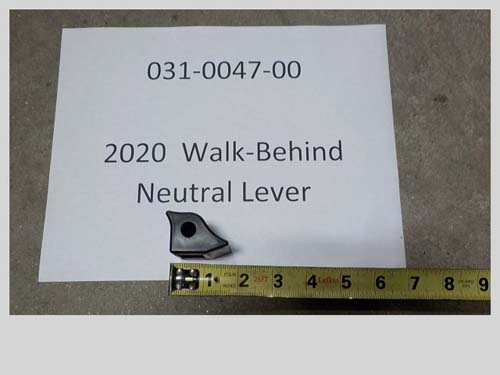

97 031-0047-00 031-0047-00 - Walk-Behind Neutral Lever
$32.09
106.4 046-0001-00 046-0001-00 - Walk Behind Left Hand Yoke Speed Control
$10.99

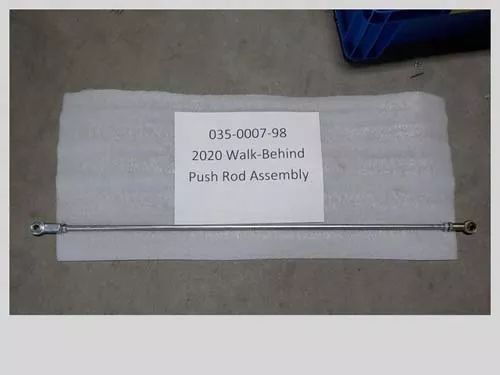

107 035-0007-98 035-0007-98 - Walk-Behind Push Rod Assembly
$42.79

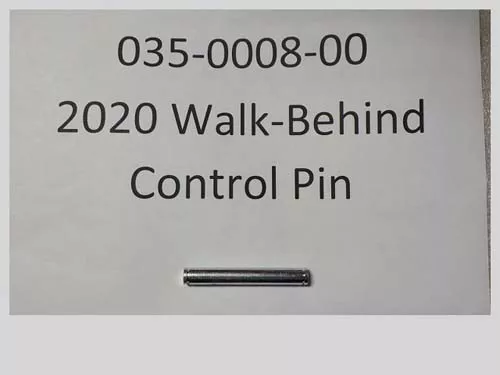

108 035-0008-00 035-0008-00 - Walk-Behind Control Pin
$32.09

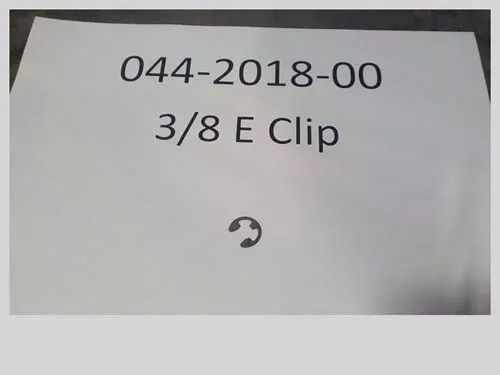

126 044-2018-00 044-2018-00 - 3/8 E Clip
$2.99

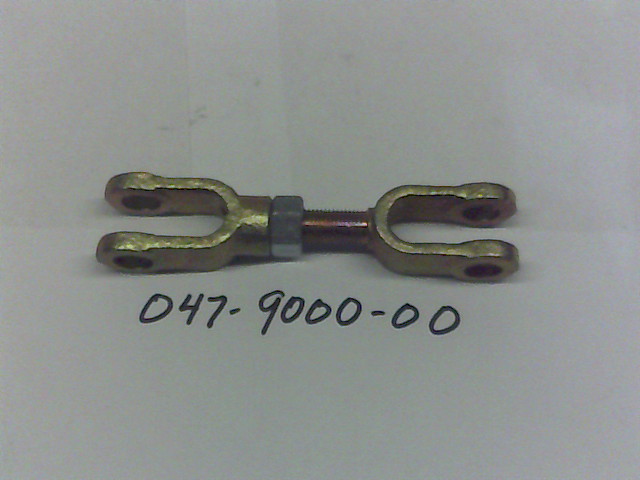

127 047-9000-00 047-9000-00 - Adjustable Yoke Male/Female (See Models Used On For Details)
$14.97
155 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
157 079-0028-00 079-0028-00 - 2020 Walk Behind Side Panel-Right--Orang No Longer Available
Obsolete.
158 079-0029-00 079-0029-00 - 2020 Walk Behind Side Panel-Left--Orange No Longer Available
Obsolete.
170 091-0412-18 091-0412-18 - 2018-2022 Walk Behind 603cc Back Plate Cluste
$17.64
175 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
