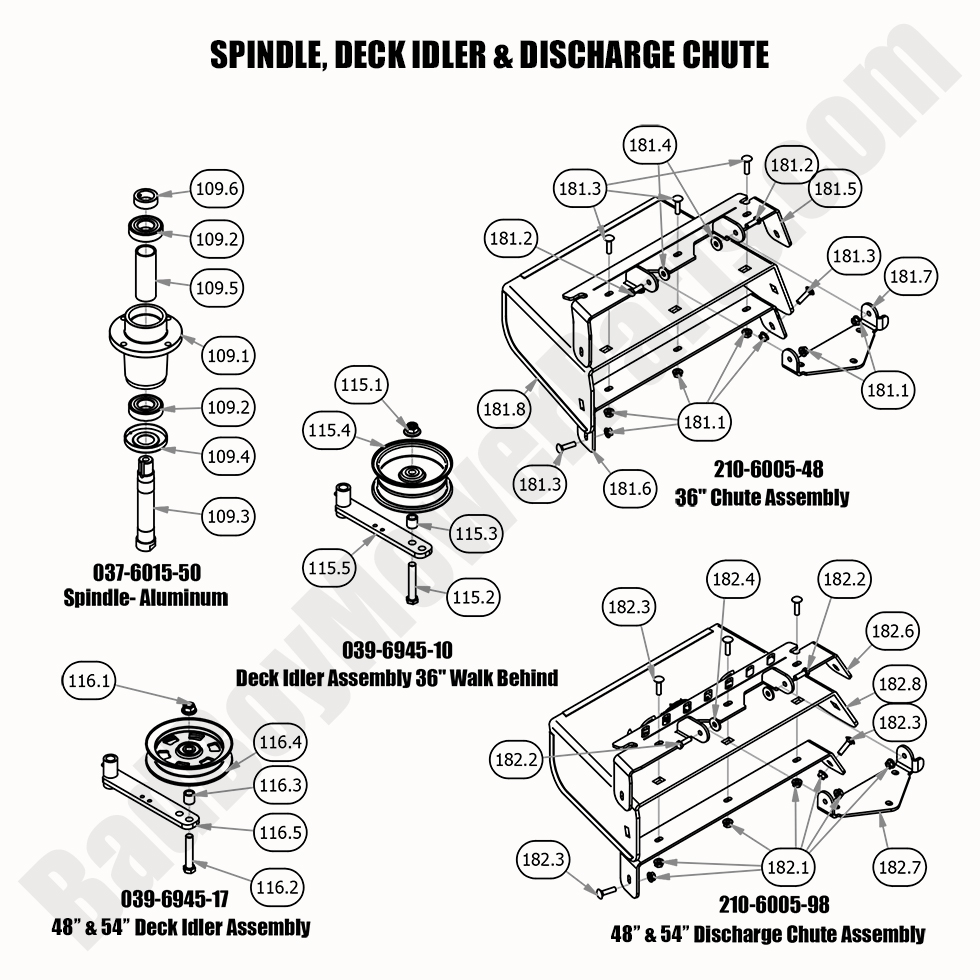

2020 Walk Behind - Spindle, Deck Idler & Discharge Chute

2020 Walk Behind - Spindle, Deck Idler & Discharge Chute

The 2020 Walk Behind Spindle, Deck Idler & Discharge Chute are critical for maintaining the cutting efficiency of your mower. If these parts are worn or damaged, it’s essential to replace them with high-quality components. BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts for the 2020 Walk Behind model. Our Bad Boy Mower Part diagrams make it easy to identify and order the correct spindles, idlers, and discharge chutes for your mower. You’ll find durable Bad Boy Lawn Mower Parts that ensure your mower continues to provide a clean, even cut every time. Shopping Bad Boy Parts Online allows you to quickly purchase the parts you need, and with Free Shipping On Orders Over $100, you can save on shipping costs while ensuring your mower stays in top condition. Get your 2020 Walk Behind Spindle, Deck Idler & Discharge Chute parts today and keep mowing with ease.

Bad Boy Mower Parts Lookup

2020 Walk Behind - Spindle, Deck Idler & Discharge Chute
  Position Number SKU Product Title Price
109.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
109.1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
109.2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
109.3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
109.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
109.5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
109.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
115.0 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
115.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
115.2 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
115.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
115.4 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
115.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
116.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
116.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
116.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
181.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
181.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
181.2 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
181.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
181.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
181.5 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
181.6 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
181.7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
181.8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
182.0 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
182.6 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
