2020 Walk Behind - Transaxle & Rear Wheels

2020 Walk Behind - Transaxle & Rear Wheels

The 2020 Walk Behind Transaxle & Rear Wheels are vital components for the movement and maneuverability of your mower. If you're in need of a replacement or repair, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts for the 2020 Walk Behind model. Whether you're replacing a worn-out transaxle or upgrading your rear wheels, our Bad Boy Mower Part diagrams help you find the right parts quickly. Our Bad Boy Lawn Mower Parts are made to withstand the toughest conditions, ensuring reliable performance and smooth operation. Bad Boy Parts Online provides a seamless shopping experience, allowing you to order with ease. Plus, with Free Shipping On Orders Over $100, you’ll enjoy extra savings on your parts purchase. Keep your mower running smoothly with high-quality 2020 Walk Behind Transaxle & Rear Wheels and get back to mowing efficiently.

Bad Boy Mower Parts Lookup

2020 Walk Behind - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
1.0 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 041-8053-00 041-8053-00 - Walk Behind Pump Belt
$58.84
4 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
28 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
33 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
36 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
38 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
40 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
42 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
54 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
67 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99

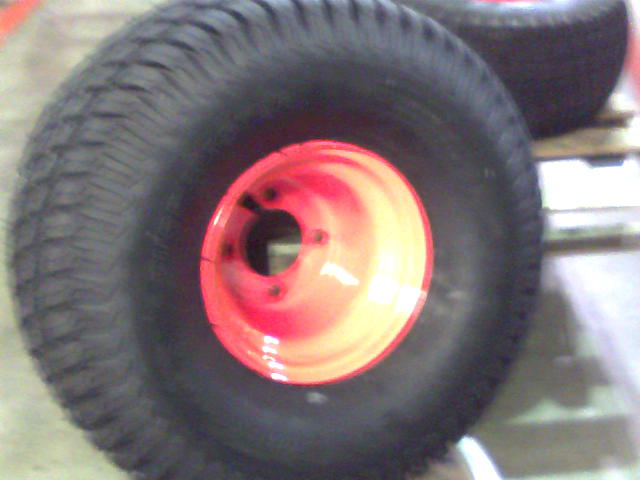

70 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99
71 022-8019-00 022-8019-00 - 21x7-10 Assy-36" 2017 Walk Behind
$171.99
74 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
77 025-0018-00 025-0018-00 - 2017 Transaxle Spacer Walk Behind
$11.76
79 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
86 026-0173-00 026-0173-00 - 2020 Walk Behind Hydro Plate Extension-- No Longer Available
Obsolete.
87 026-3441-00 026-3441-00 - 2020 Walk Behind Trans Skid Plate--Orang
$53.49
90 028-0072-00 028-0072-00 - 2020 Walk-Behind Neutral Rod No Longer Available
Obsolete.
124 044-2004-00 044-2004-00 - Bow Pin
$2.99
125 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
128.0 050-0003-00 050-0003-00 - 2017-2021 Walk Behind Transaxle Right 3100
$699.99
128.2 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
128.3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
129.0 050-0004-00 050-0004-00 - 2017-2021 Walk Behind Transaxle Left 3100
$549.99
141 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
