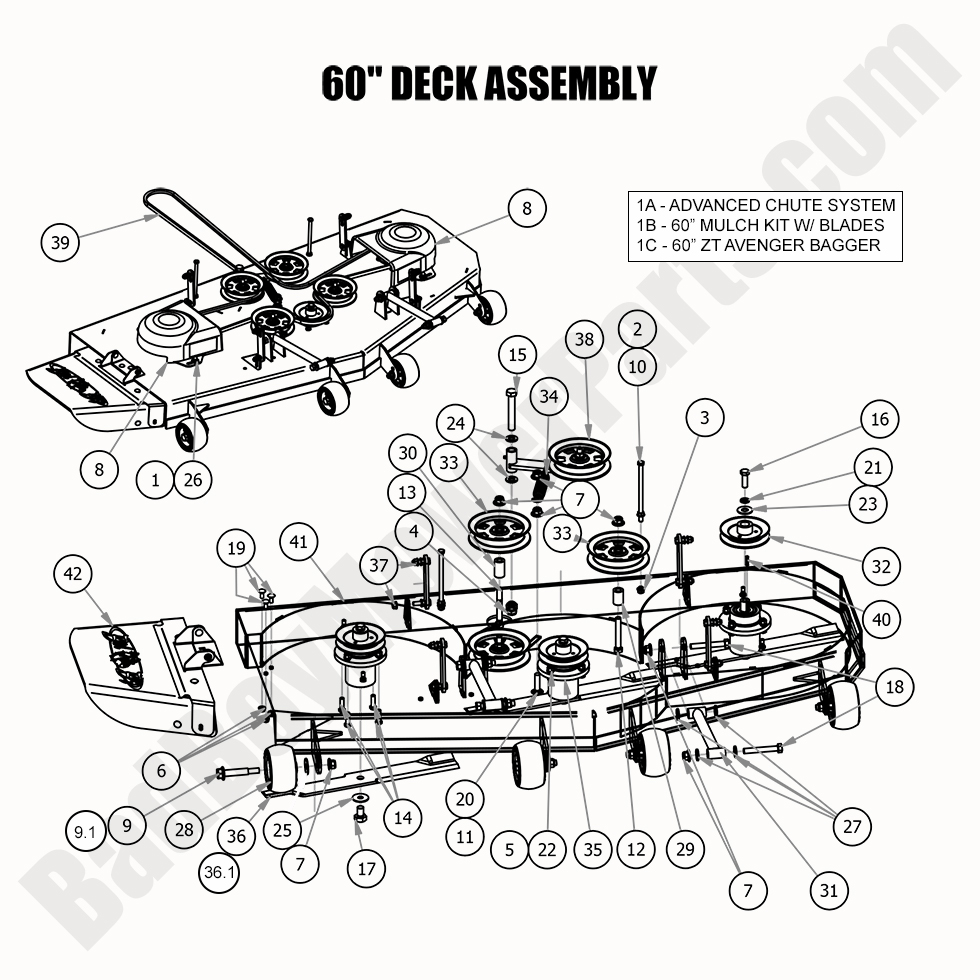

2020 ZT Avenger - 60" Deck Assembly

2020 ZT Avenger - 60" Deck Assembly

For the 2020 ZT Avenger owners looking for a 60" Deck Assembly, BadBoyMowerParts.com has you covered with premium-quality parts designed to fit and function perfectly. A well-maintained deck is crucial for achieving a uniform cut, and our Bad Boy Mower Parts are built to last. With our detailed Bad Boy Mower Part diagrams, you can easily identify the right deck assembly components, ensuring the longevity and performance of your mower. When you shop with us, you get access to a wide variety of Bad Boy Lawn Mower Parts for all your maintenance needs. Whether you’re replacing a worn-out deck or upgrading your mower’s cutting system, our online store makes it simple. Plus, enjoy Free Shipping On Orders Over $100, helping you save on all your purchases. Find your 2020 ZT Avenger 60" Deck Assembly and more at BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2020 ZT Avenger - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0160-50 210-0160-50 60" Mulch Kit w/blades (See Models Used On For Details)
$318.45
1C 088-1938-00 088-1938-00 - 60" Avenger 2-Bagger
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
9.1 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
20 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
32 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
35 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
36.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
36 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
37 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
38 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
39 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
40 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
41 060-2460-00 060-2460-00 - 60" Avenger Deck
$999.00
42 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
