2020 ZT Avenger - Battery, Seat Pan & Covers

2020 ZT Avenger - Battery, Seat Pan & Covers

When it comes to maintaining your 2020 ZT Avenger, the Battery, Seat Pan & Covers are essential components to keep your mower in top shape. BadBoyMowerParts.com offers high-quality replacements to ensure that your mower starts with ease and provides comfort during long hours of mowing. Whether you need a new Bad Boy Mower Parts battery to restore power or a seat cover to enhance comfort, we have everything you need. Our website provides detailed Bad Boy Mower Part diagrams to assist you in selecting the right parts. From Bad Boy Lawn Mower Parts to seat pans and covers, you’ll find durable options that fit perfectly with your mower. Order Bad Boy Parts Online for a hassle-free shopping experience and benefit from Free Shipping On Orders Over $100. Keep your 2020 ZT Avenger running at its best with the right parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

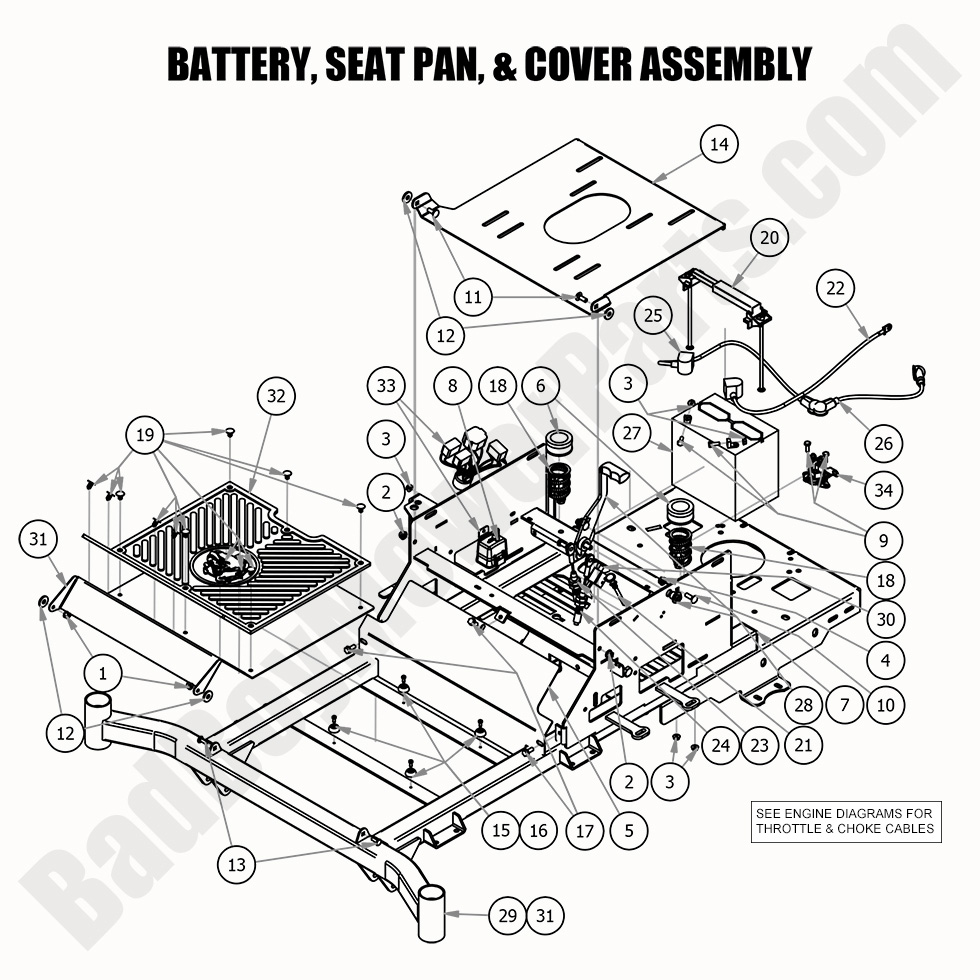

2020 ZT Avenger - Battery, Seat Pan & Covers
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
14 026-2017-00 026-2017-00 - MZ Seat Plate (See Models Used On For Details)
$129.99
15 029-4010-00 029-4010-00 - Button Bumper
$2.99
16 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
17 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
18 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
19 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
20 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
22 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
23 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
24 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
29 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
30 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
31 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
32 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
33 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
34 108-0001-00 108-0001-00 - Solenoid
$29.41
