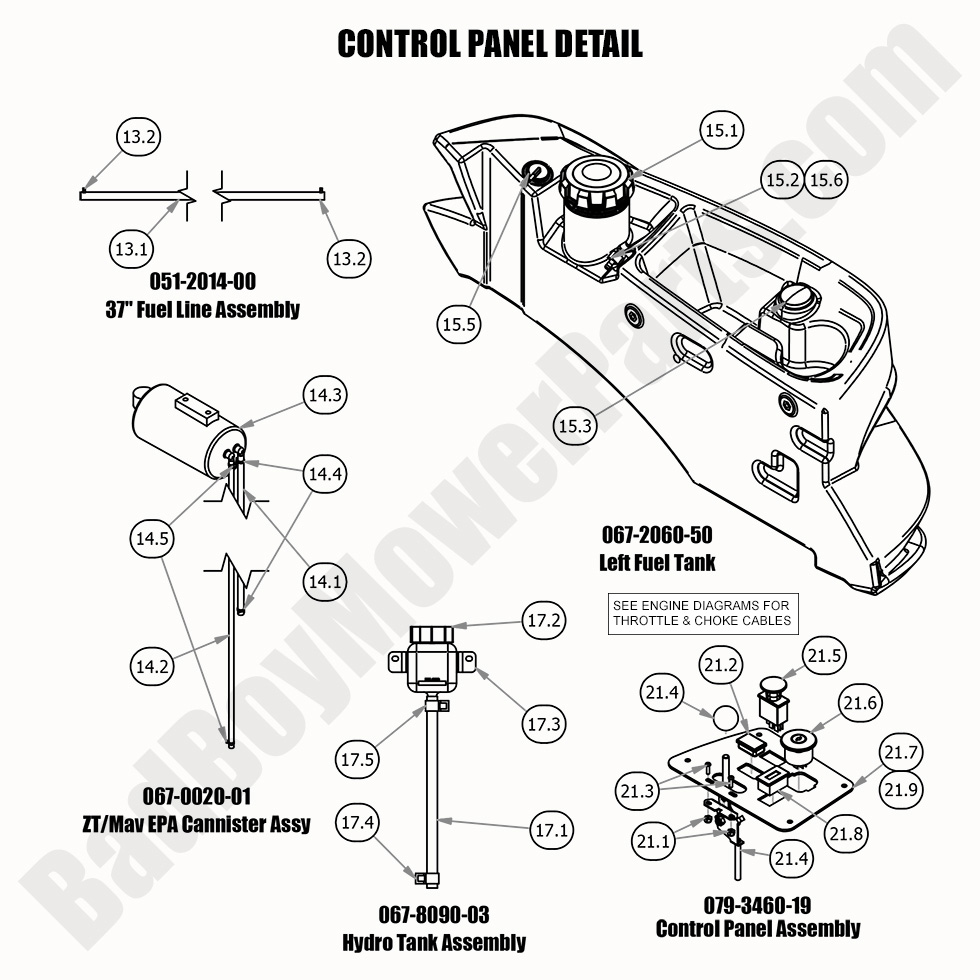

2020 ZT Avenger - Control Panel Detail

2020 ZT Avenger - Control Panel Detail

If you’re looking for precise and detailed parts for your 2020 ZT Avenger, the Control Panel Detail is crucial for ensuring smooth operation. BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts for the control panel, ensuring you can easily operate your mower’s features. Whether you need replacement switches, levers, or wiring, we have the Bad Boy Lawn Mower Parts to keep everything working properly. With our convenient Bad Boy Mower Part diagrams, finding the exact part you need has never been easier. Additionally, you can shop Bad Boy Parts Online, which ensures you have access to all available parts from the comfort of your home. And don’t forget our Free Shipping On Orders Over $100, allowing you to save even more on high-quality replacements. Visit BadBoyMowerParts.com for all your control panel needs and ensure your 2020 ZT Avenger runs smoothly.

Bad Boy Mower Parts Lookup

2020 ZT Avenger - Control Panel Detail
  Position Number SKU Product Title Price
13.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
13.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
13.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
14.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
14.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
14.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
14.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
15.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
15.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
15.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
15.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
15.5 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
15.6 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
17.0 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
17.1 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
17.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
17.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
17.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
17.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
21.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
21.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
21.2 018-1040-00 018-1040-00 - Light Plug
$2.99
21.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
21.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
21.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
21.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
21.9 091-0338-18 091-0338-18 - Control Panel Decal 2018-2021 MZ/Magnum/ZT/Maverick
$14.97
