2020 ZT Avenger - Deck Height Control Assembly

2020 ZT Avenger - Deck Height Control Assembly

The Deck Height Control Assembly of the 2020 ZT Avenger is an essential part of your mower’s cutting system. Whether you’re looking to upgrade or replace a worn component, BadBoyMowerParts.com provides all the Bad Boy Mower Parts necessary to keep this system functioning properly. From height adjustment handles to control mechanisms, you’ll find everything you need to maintain your mower's precision cutting performance. With Bad Boy Lawn Mower Parts and our comprehensive Bad Boy Mower Part diagrams, you can easily identify and order the right parts for your needs. For added convenience, you can shop Bad Boy Parts Online, ensuring quick and easy access to all parts. Plus, enjoy Free Shipping On Orders Over $100, making it affordable to maintain your mower. Visit BadBoyMowerParts.com for all your deck height control assembly needs and keep your 2020 ZT Avenger cutting at its best.

Bad Boy Mower Parts Lookup

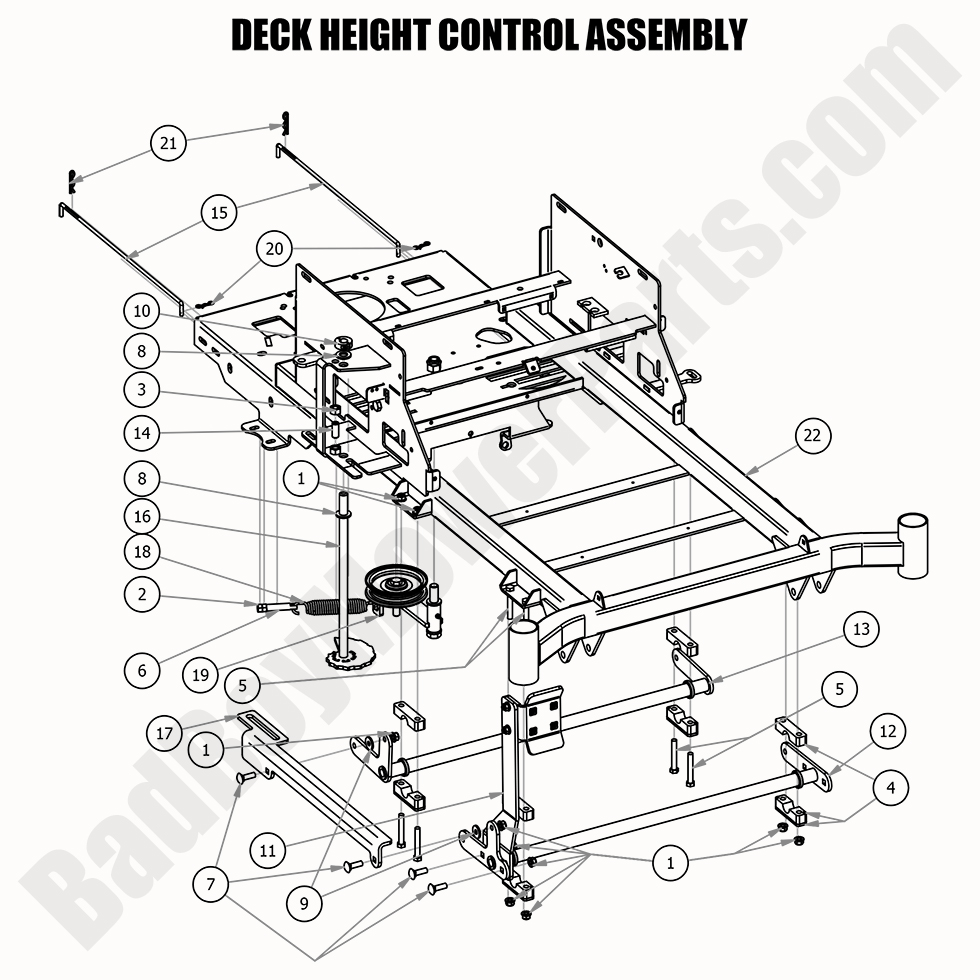

2020 ZT Avenger - Deck Height Control Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91

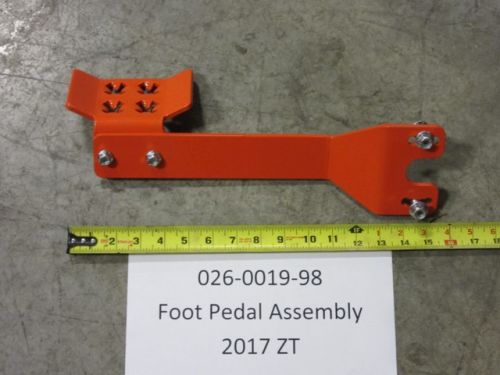

11 026-0019-98 026-0019-98 - Foot Pedal Assembly (See Models Used On For Detail)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
15 028-0070-00 028-0070-00 - Neutral Rod
$12.48
16 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
17 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
18 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
19 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
20 044-2004-00 044-2004-00 - Bow Pin
$2.99
21 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
22 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
