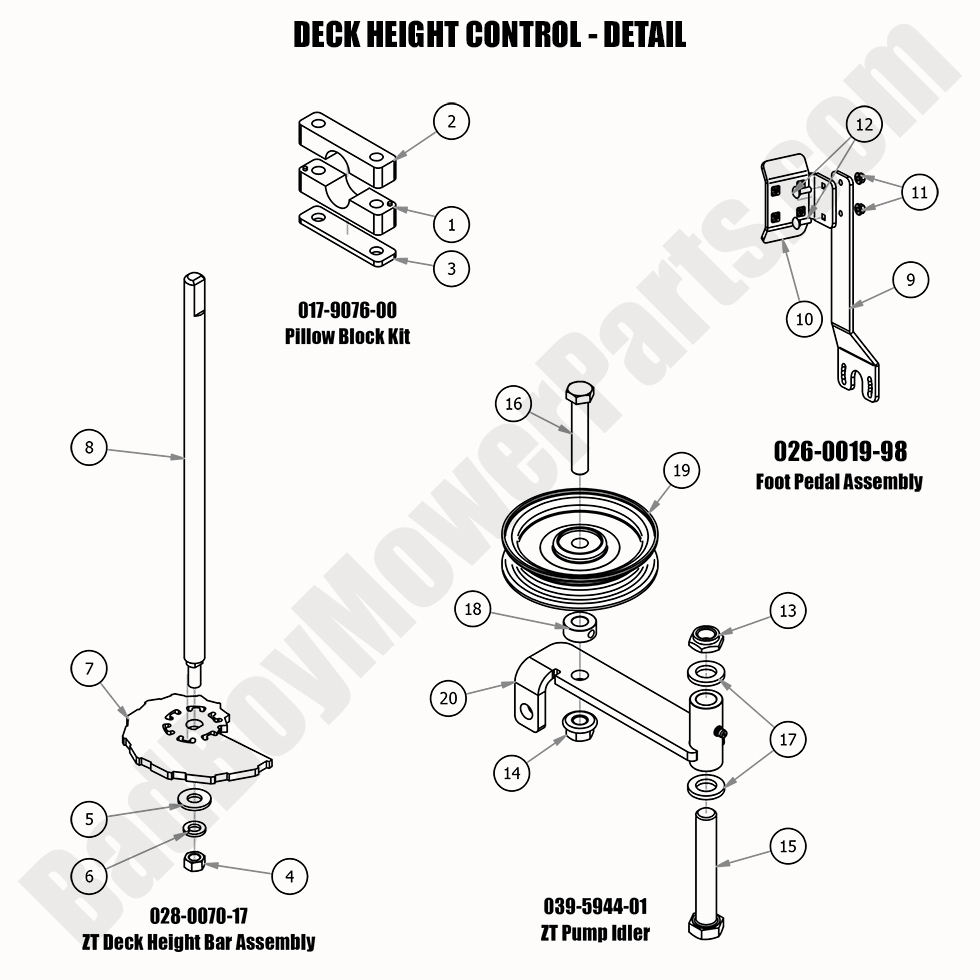

2020 ZT Avenger - Deck Height Control - Detail

2020 ZT Avenger - Deck Height Control - Detail

The Deck Height Control system of the 2020 ZT Avenger is a crucial component for achieving precise and uniform cutting heights. If you’re looking to repair or replace any parts related to this system, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts to suit your needs. Whether it’s a height adjustment lever or a height control mechanism, our detailed Bad Boy Mower Part diagrams make it easy to find the exact component. We pride ourselves on providing high-quality Bad Boy Lawn Mower Parts, ensuring your mower performs like new. For a seamless shopping experience, you can shop Bad Boy Parts Online and have your parts delivered directly to your door. Plus, with Free Shipping On Orders Over $100, you’ll save money while getting the best parts for your mower. Trust BadBoyMowerParts.com for all your 2020 ZT Avenger deck height control needs.

Bad Boy Mower Parts Lookup

2020 ZT Avenger - Deck Height Control - Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
4.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
5 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
8 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
9.0 026-0019-98 026-0019-98 - Foot Pedal Assembly (See Models Used On For Detail)
$93.69
9 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
10 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13.0 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
