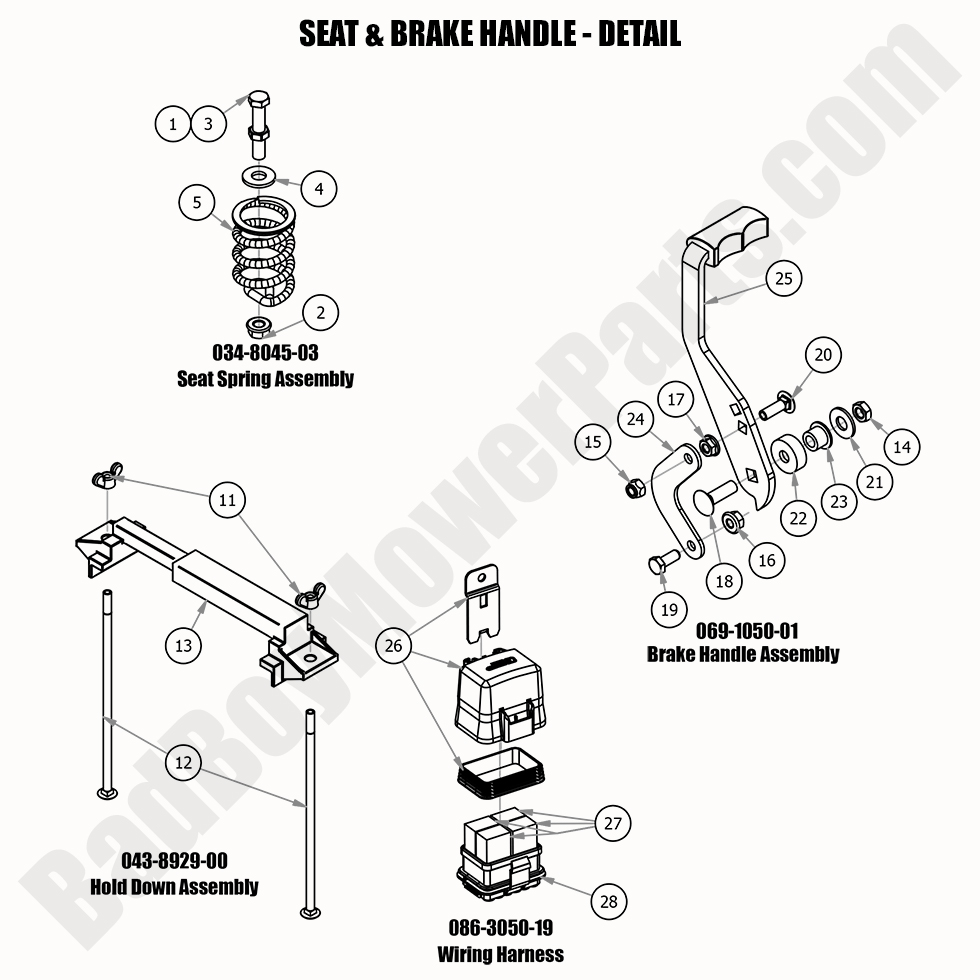

2020 ZT Avenger - Seat & Brake Handle - Detail

2020 ZT Avenger - Seat & Brake Handle - Detail

The Seat & Brake Handle assembly is an essential feature of the 2020 ZT Avenger that ensures both comfort and safety. BadBoyMowerParts.com offers a variety of high-quality Bad Boy Mower Parts for your seat and brake handle. Whether you need a new seat for added comfort or a brake handle for improved control, we have the right parts to meet your needs. Our Bad Boy Lawn Mower Parts are designed for durability, ensuring long-lasting performance. We also provide detailed Bad Boy Mower Part diagrams to help you easily identify the correct part. Shopping is simple with Bad Boy Parts Online, and our website offers quick access to all the parts you need. Additionally, enjoy Free Shipping On Orders Over $100 to help you save on your order. Shop BadBoyMowerParts.com today to find the perfect Seat & Brake Handle for your 2020 ZT Avenger.

Bad Boy Mower Parts Lookup

2020 ZT Avenger - Seat & Brake Handle - Detail
  Position Number SKU Product Title Price
1.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
11.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
11 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
14.0 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
14 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
15 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
19 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
20 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
22 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
23 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
24 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
25 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
26.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
26 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
27 086-1202-19 086-1202-19 - Relay Terminal
$24.97
