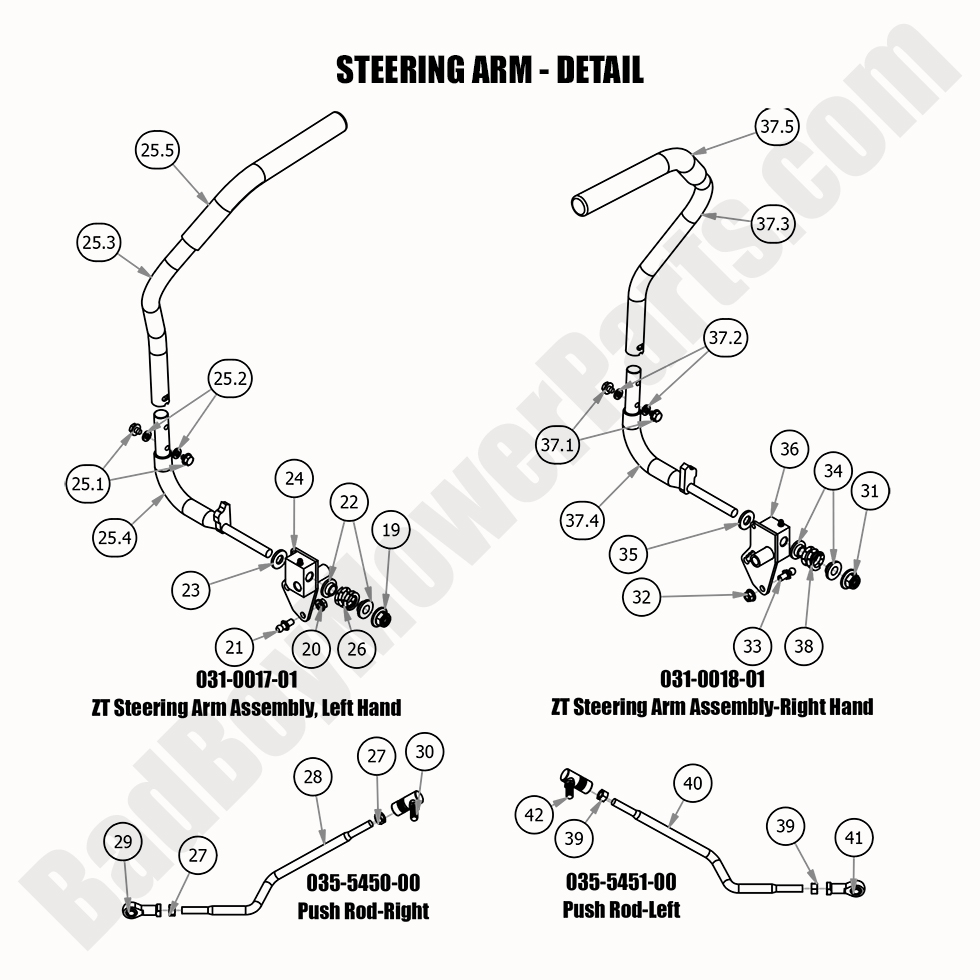

2020 ZT Avenger - Steering Arm - Detail

2020 ZT Avenger - Steering Arm - Detail

The Steering Arm in the 2020 ZT Avenger plays a vital role in maneuvering the mower with ease. If your steering arm is worn or damaged, BadBoyMowerParts.com provides top-quality Bad Boy Mower Parts to keep your mower steering smoothly. Whether you need the steering arm itself or additional components like brackets or bushings, we have everything you need. Our Bad Boy Lawn Mower Parts are designed to ensure that your mower operates at peak efficiency. Utilize our Bad Boy Mower Part diagrams to locate and identify the right steering arm parts for your model. With Bad Boy Parts Online, you can quickly find and order the parts you need. Don’t forget about our Free Shipping On Orders Over $100 offer, making it even easier to maintain your mower affordably. Visit BadBoyMowerParts.com to get the best steering parts for your 2020 ZT Avenger.

Bad Boy Mower Parts Lookup

2020 ZT Avenger - Steering Arm - Detail
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
19.0 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
22 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
23 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
24 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
25.0 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
25.1 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
25.2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
25.3 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
25.4 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
25.5 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
26 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
27.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
27 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
29 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
30 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
31.0 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
36 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
37.0 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
37.3 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
37.4 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
39.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
