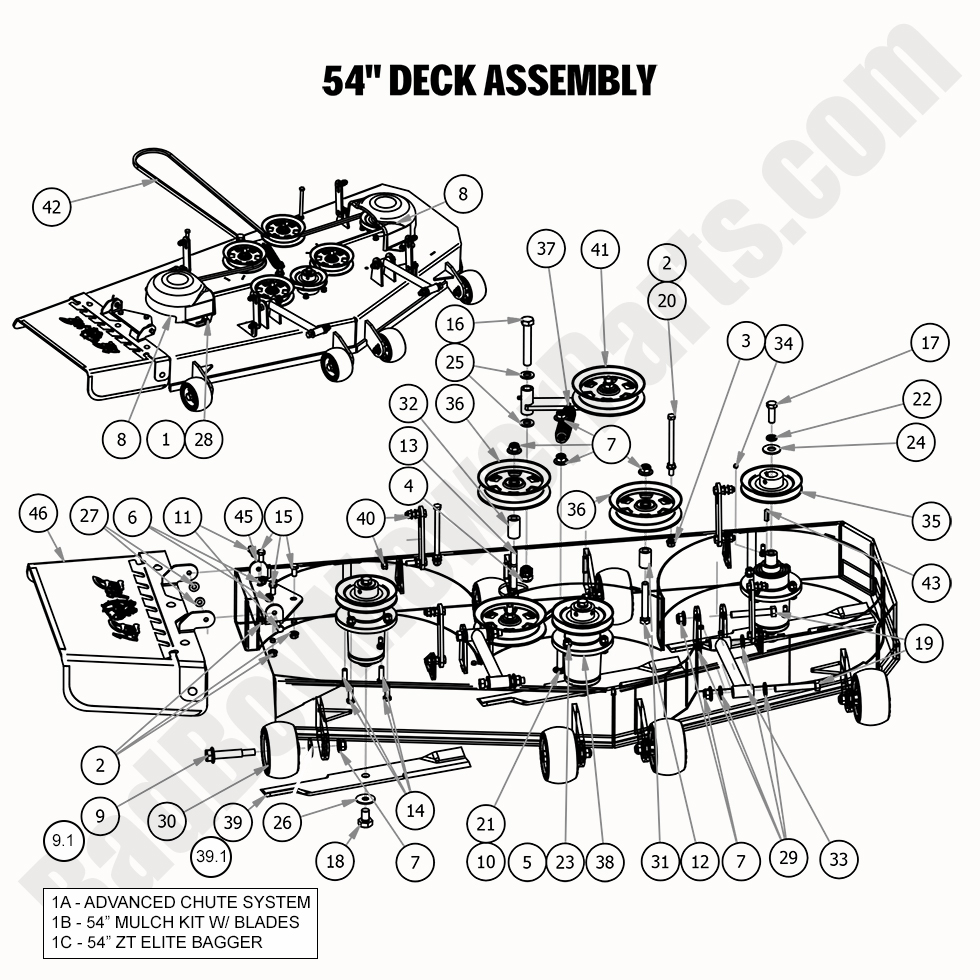

2020 ZT Elite - 54" Deck Assembly

2020 ZT Elite - 54" Deck Assembly

The 2020 ZT Elite 54" Deck Assembly offers exceptional cutting power and performance for your mower. BadBoyMowerParts.com provides everything you need to keep your deck in top condition. From replacement parts to complete assembly kits, our site offers a variety of high-quality Bad Boy Mower Parts designed specifically for your 2020 ZT Elite. With our easy-to-read Bad Boy Mower Part diagrams, identifying and replacing parts is a breeze. Whether you're tackling deck height issues, replacing blades, or fixing other components, we have the Bad Boy Lawn Mower Parts you need. When you shop Bad Boy Parts Online, you’ll find fast and reliable service, including Free Shipping On Orders Over $100. Get the right parts delivered straight to your door and get back to mowing with confidence. Browse the selection of 2020 ZT Elite 54" Deck Assembly parts on our website today.

Bad Boy Mower Parts Lookup

2020 ZT Elite - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
9.1 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
27 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
28 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
29 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
39.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
39 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
40 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
41 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
42 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
46 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
