2020 ZT Elite - Battery, Seat Pan & Covers

2020 ZT Elite - Battery, Seat Pan & Covers

Keep your 2020 ZT Elite in top shape with the right Bad Boy Mower Parts for your battery, seat pan, and covers. BadBoyMowerParts.com offers a wide selection of high-quality parts that are specifically designed to fit your mower. Whether you're replacing your battery, upgrading your seat pan, or adding durable covers, we’ve got you covered. Our clear and easy-to-use Bad Boy Mower Part diagrams will help you find exactly what you need. With our Bad Boy Lawn Mower Parts, you can ensure that every component is built to last and perform at its best. Order your parts through Bad Boy Parts Online for a smooth and convenient shopping experience. Plus, take advantage of Free Shipping On Orders Over $100 to save even more. Get the right parts for your 2020 ZT Elite Battery, Seat Pan & Covers from us today and enjoy a perfectly functioning mower all season long.

Bad Boy Mower Parts Lookup

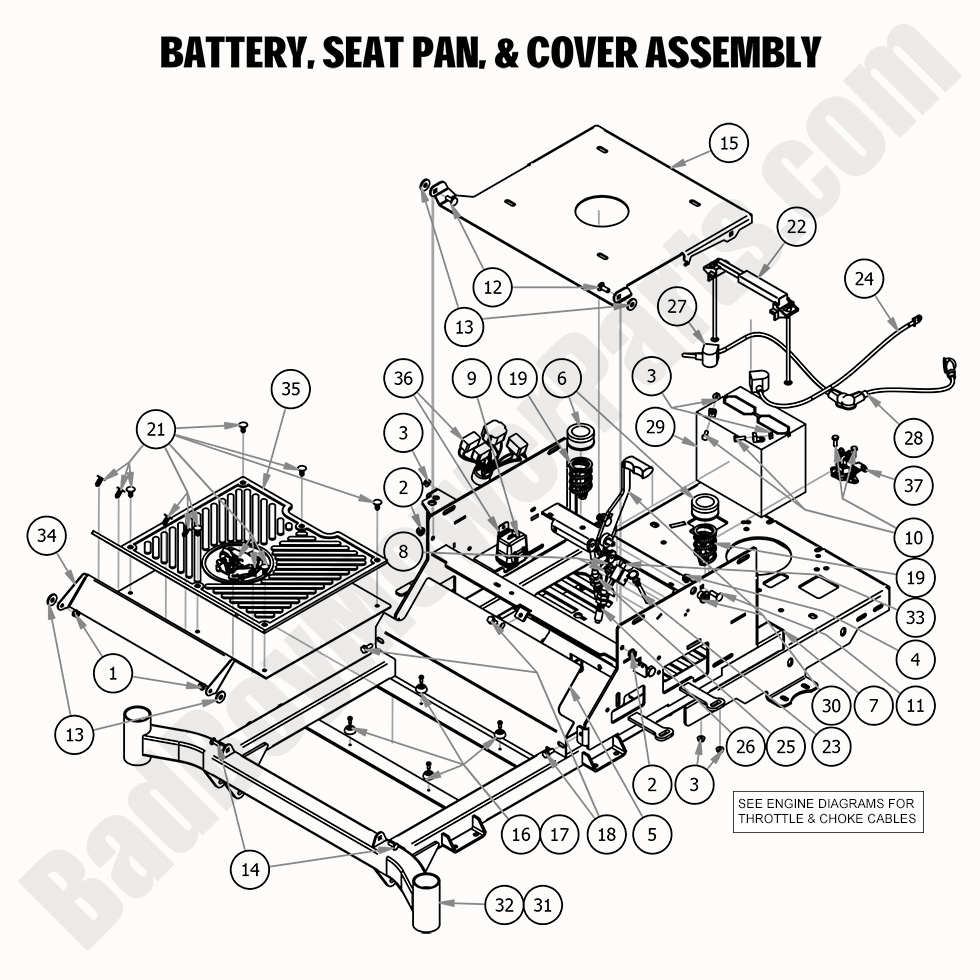

2020 ZT Elite - Battery, Seat Pan & Covers
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
8 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
9 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
15 026-1016-00 026-1016-00 - Seat Plate
$102.11
16 029-4010-00 029-4010-00 - Button Bumper
$2.99
17 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
18 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
19 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
21 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
22 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
26 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
27 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
31 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
32 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
33 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
34 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
35 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
36 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
37 108-0001-00 108-0001-00 - Solenoid
$29.41
