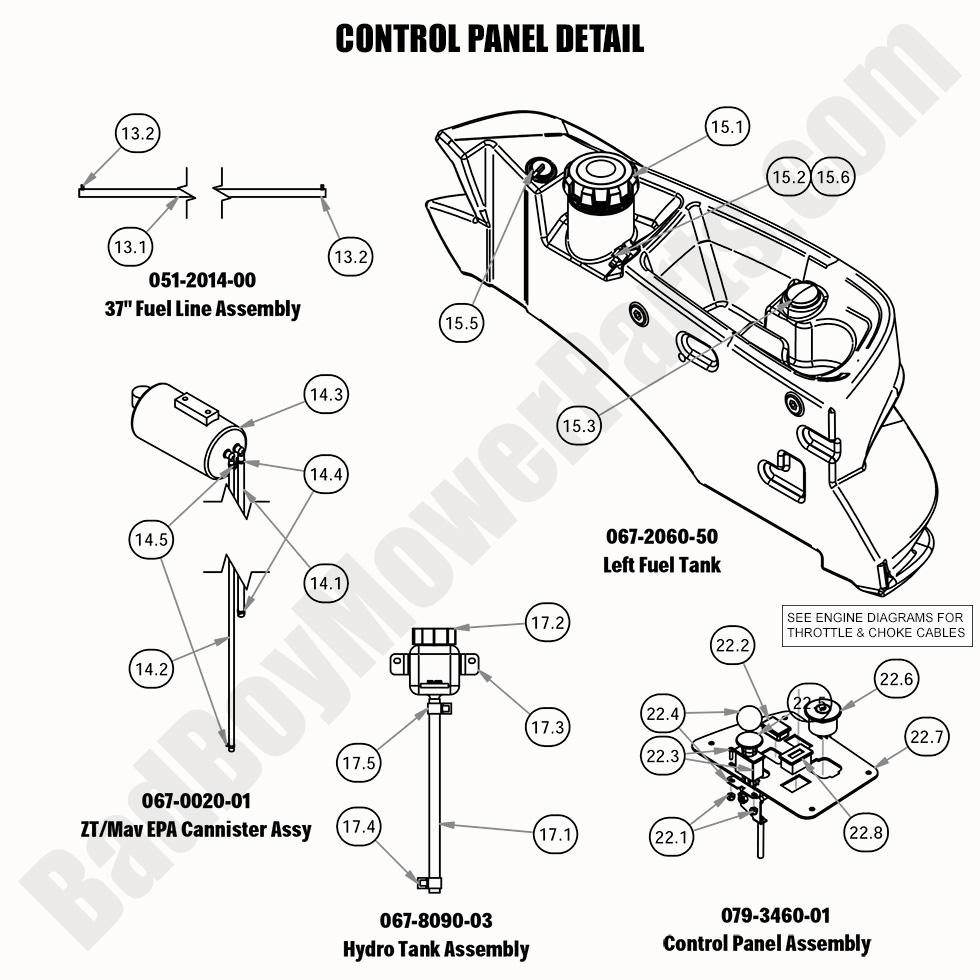

2020 ZT Elite - Control Panel Detail

2020 ZT Elite - Control Panel Detail

The 2020 ZT Elite Control Panel Detail is essential for your mower’s user interface and functionality. At BadBoyMowerParts.com, we provide all the necessary Bad Boy Mower Parts to keep your control panel in perfect working order. Whether you need switches, levers, or wiring components, we’ve got everything you need. Our easy-to-understand Bad Boy Mower Part diagrams make it simple to identify the parts that need replacing or upgrading. As a trusted provider of Bad Boy Lawn Mower Parts, we ensure every component meets high standards of durability and performance. Ordering Bad Boy Parts Online is simple, and our customer service team is always available to assist with any questions. Enjoy Free Shipping On Orders Over $100, so you can get the parts you need without paying extra for delivery. Explore our selection of 2020 ZT Elite Control Panel Detail parts today!

Bad Boy Mower Parts Lookup

2020 ZT Elite - Control Panel Detail
  Position Number SKU Product Title Price
13.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
13.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
13.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
14.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
14.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
14.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
14.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
14.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
15.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
15.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
15.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
15.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
15.5 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
15.6 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
17.0 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
17.1 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
17.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
17.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
17.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
17.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
22.0 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
22.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
22.2 018-1040-00 018-1040-00 - Light Plug
$2.99
22.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
22.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
22.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
22.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
