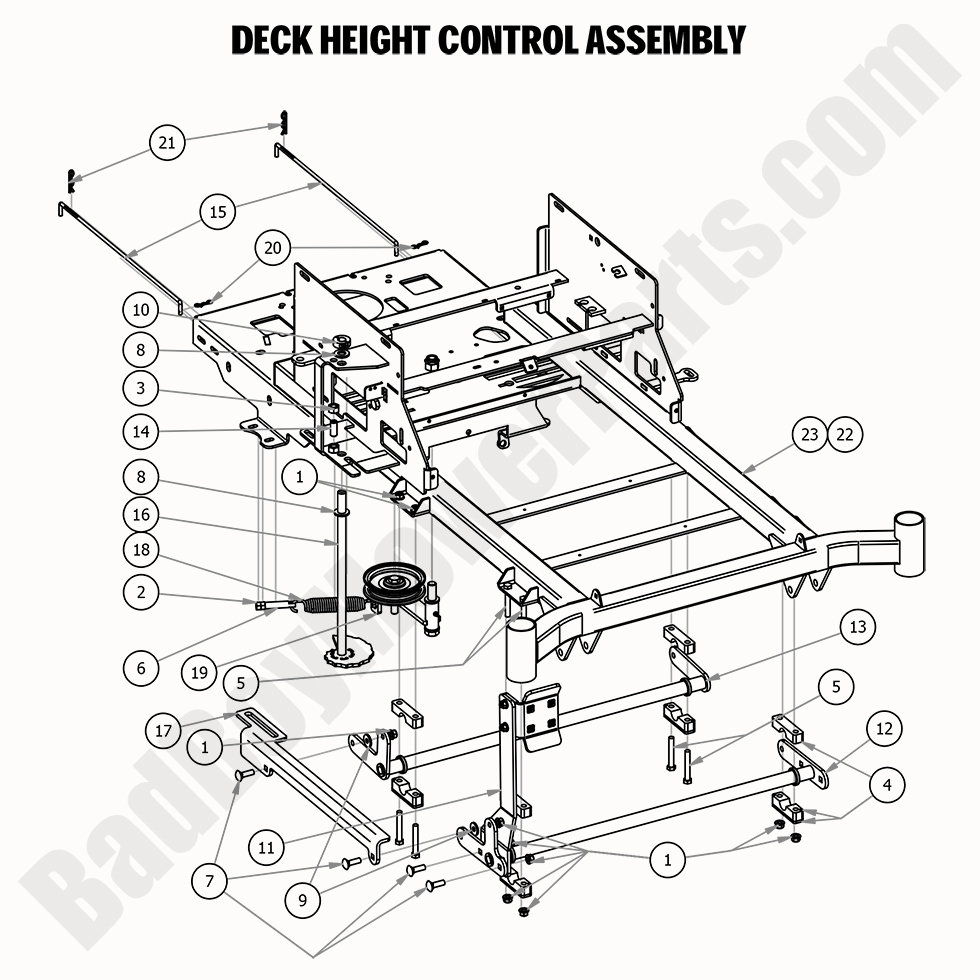

2020 ZT Elite - Deck Height Control Assembly

2020 ZT Elite - Deck Height Control Assembly

The 2020 ZT Elite Deck Height Control Assembly is vital for adjusting your mower’s cutting height, ensuring precision and efficiency. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to maintain this essential feature of your mower. Whether you need replacement cables, controls, or other components, our site provides everything you need. Our Bad Boy Mower Part diagrams are detailed and easy to understand, allowing you to quickly identify the parts that need attention. With our Bad Boy Lawn Mower Parts, you can ensure that your mower remains in optimal condition for every task. Ordering Bad Boy Parts Online is hassle-free, and we offer Free Shipping On Orders Over $100 to save you even more. Don’t wait—get the right 2020 ZT Elite Deck Height Control Assembly parts now and keep your mower performing at its best.

Bad Boy Mower Parts Lookup

2020 ZT Elite - Deck Height Control Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
15 028-0070-00 028-0070-00 - Neutral Rod
$12.48
16 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
17 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
18 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
19 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
20 044-2004-00 044-2004-00 - Bow Pin
$2.99
21 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
22 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
23 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
