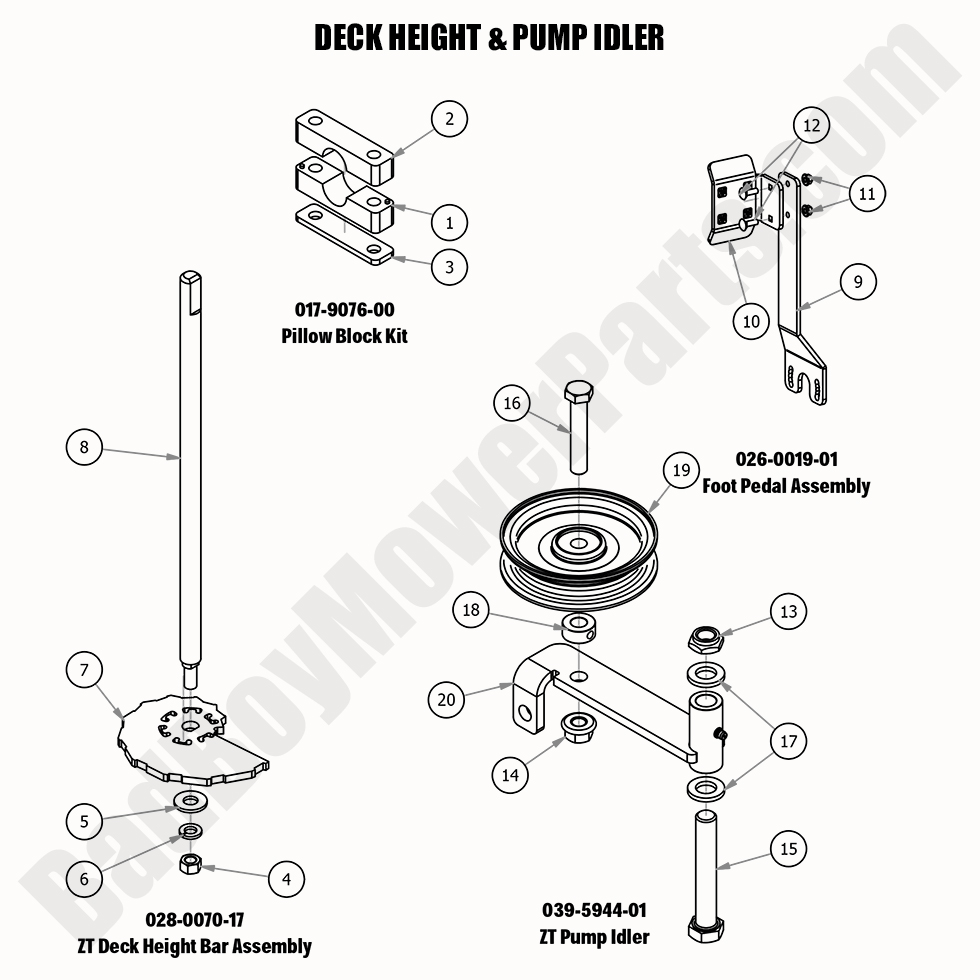

2020 ZT Elite - Deck Height & Pump Idler Detail

2020 ZT Elite - Deck Height & Pump Idler Detail

If you're having trouble with the deck height or pump idler, look no further than BadBoyMowerParts.com for your 2020 ZT Elite Deck Height & Pump Idler Detail needs. We offer high-quality Bad Boy Mower Parts to keep your mower operating at peak performance. Our Bad Boy Mower Part diagrams make it easy to identify the exact components required for repair or replacement. Whether you're adjusting the deck height for a precise cut or replacing a malfunctioning pump idler, we have the parts you need. With our extensive selection of Bad Boy Lawn Mower Parts, you’ll find everything from pulleys to belts that are built to last. Shopping for Bad Boy Parts Online is simple, and our efficient shipping ensures you get your parts in no time. Plus, enjoy Free Shipping On Orders Over $100. Get the right parts for your 2020 ZT Elite Deck Height & Pump Idler Detail today.

Bad Boy Mower Parts Lookup

2020 ZT Elite - Deck Height & Pump Idler Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
4.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
5 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
8 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
9.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
9 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
10 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
13 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
