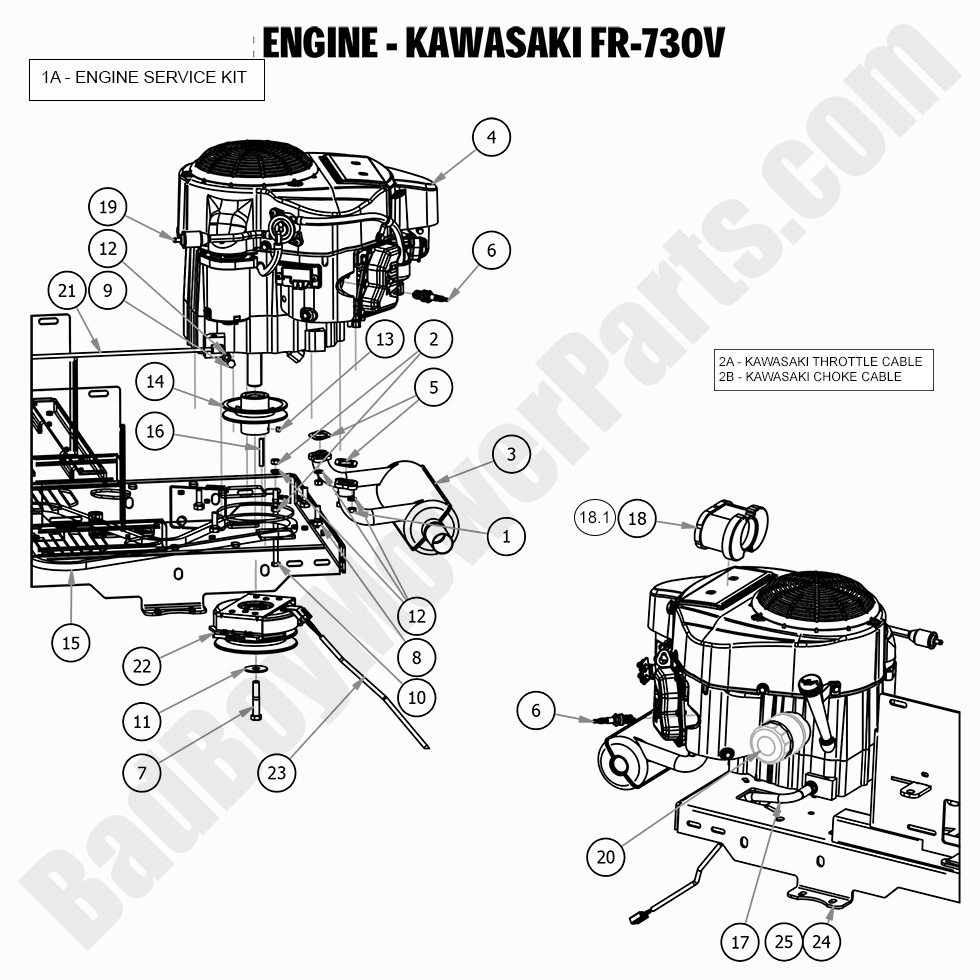

2020 ZT Elite - Engine - Kawasaki FR730V

2020 ZT Elite - Engine - Kawasaki FR730V

The 2020 ZT Elite Engine - Kawasaki FR730V is a powerhouse that ensures smooth and reliable performance for your mower. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts specifically designed for the Kawasaki FR730V engine. Whether you need air filters, spark plugs, or carburetor components, we have everything you need to keep your engine running at its best. Our clear Bad Boy Mower Part diagrams make it easy to find the right parts for maintenance and repair. With our Bad Boy Lawn Mower Parts, you can rest assured that you’re getting OEM-quality components that match your engine’s requirements. Ordering Bad Boy Parts Online is simple and convenient, and we offer Free Shipping On Orders Over $100, making it even more affordable to maintain your engine. Shop now to find the 2020 ZT Elite Engine - Kawasaki FR730V parts you need to keep your mower in top shape.

Bad Boy Mower Parts Lookup

2020 ZT Elite - Engine - Kawasaki FR730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-0090-00 015-0090-00 - FR730V-S16 Kawasaki Engine 1.125" Shaft for ZT
$2299.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
11 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
14 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
17 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
18.1 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
18 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
21 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
22 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
23 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
24 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
25 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
