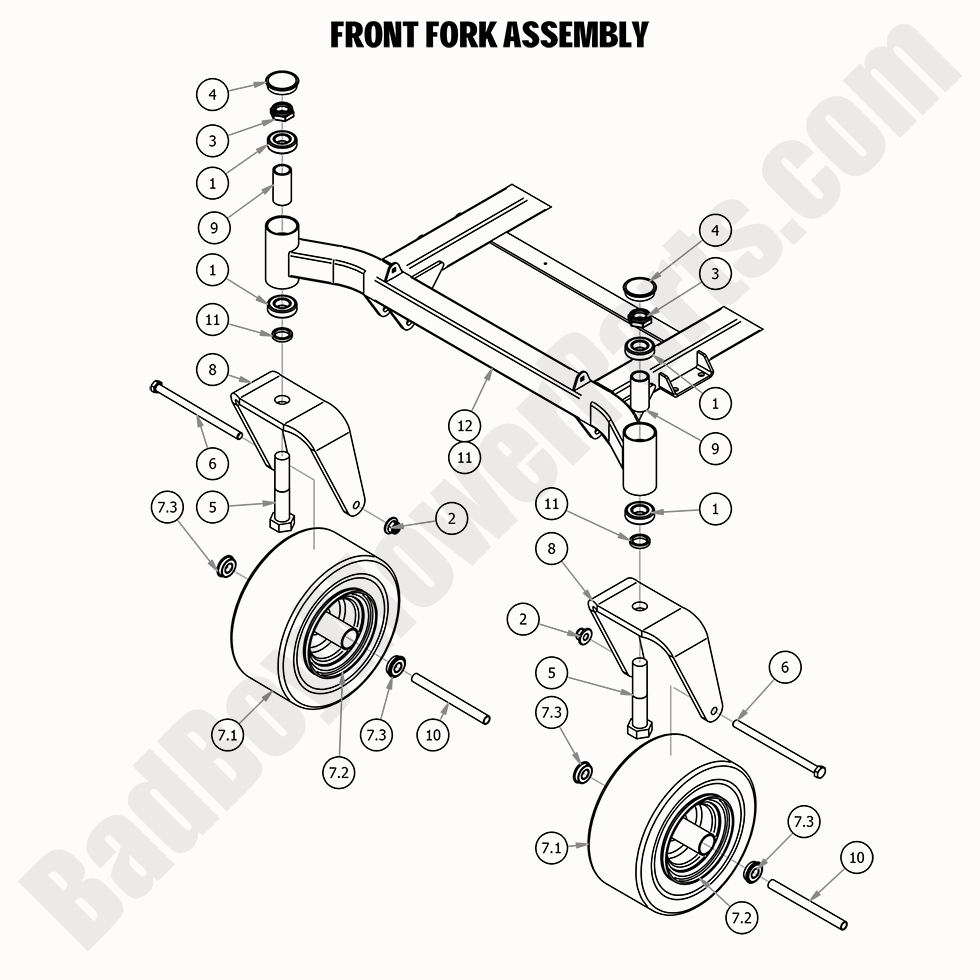

2020 ZT Elite - Front Fork Assembly

2020 ZT Elite - Front Fork Assembly

The 2020 ZT Elite Front Fork Assembly is essential for smooth handling and stability while operating your mower. BadBoyMowerParts.com provides an extensive selection of Bad Boy Mower Parts, including all the components necessary for maintaining or replacing the front fork assembly. Whether you need to replace the fork itself or other related parts like bushings or bearings, our high-quality parts will ensure your mower remains in peak condition. Our Bad Boy Mower Part diagrams are designed to make the identification and replacement process simple and efficient. With Bad Boy Lawn Mower Parts, you can trust that every part is engineered for optimal performance. Ordering Bad Boy Parts Online has never been easier, and you’ll enjoy Free Shipping On Orders Over $100 for all qualifying orders. Visit BadBoyMowerParts.com today to find everything you need for your 2020 ZT Elite Front Fork Assembly.

Bad Boy Mower Parts Lookup

2020 ZT Elite - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
7.0 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
7.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
7.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
7.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
11.1 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
11.2 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
12 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
