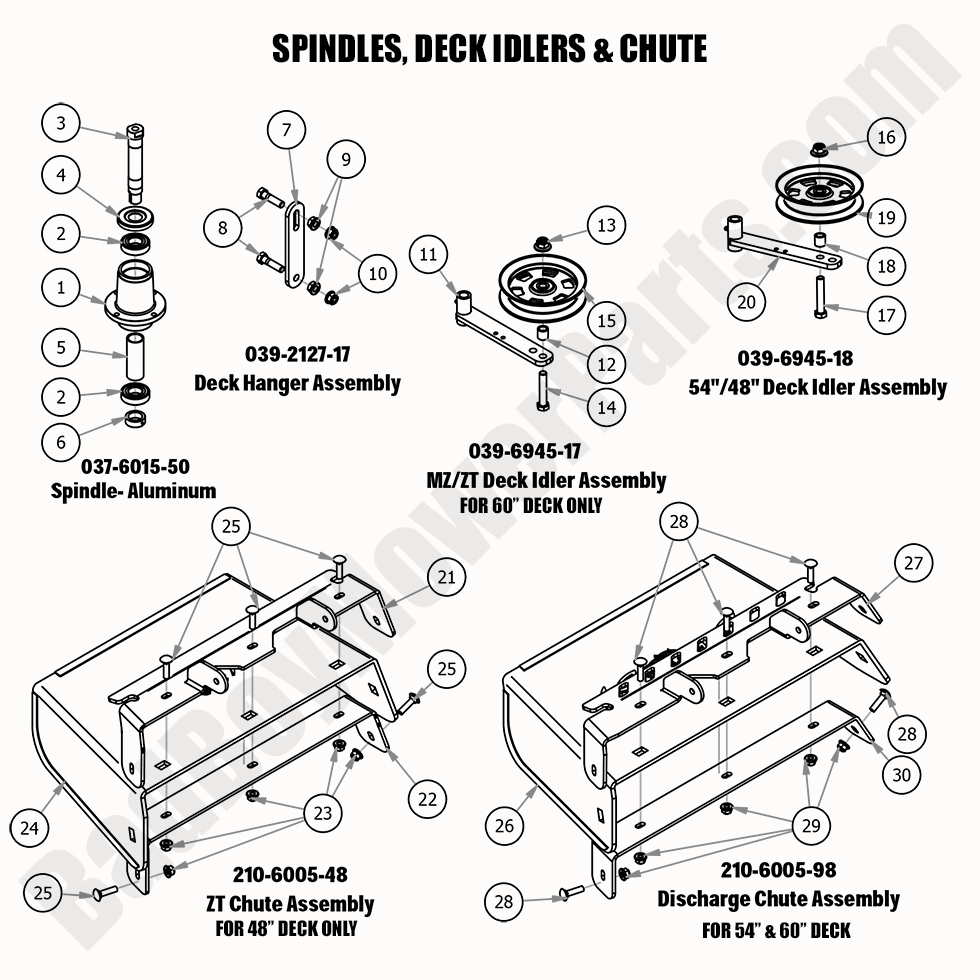

2020 ZT Elite - Spindle, Deck Idlers & Chute

2020 ZT Elite - Spindle, Deck Idlers & Chute

When it comes to the 2020 ZT Elite Spindle, Deck Idlers & Chute, BadBoyMowerParts.com has everything you need to maintain or replace these critical components. Whether you need a new spindle, idler pulley, or a replacement chute, we provide high-quality Bad Boy Mower Parts designed to fit your mower perfectly. Our Bad Boy Mower Part diagrams make it easy to locate and order the parts you need for a smooth repair process. With our extensive selection of Bad Boy Lawn Mower Parts, you can ensure that your mower continues to deliver optimal performance. Ordering Bad Boy Parts Online is fast and straightforward, and you’ll enjoy the convenience of Free Shipping On Orders Over $100. Don't let faulty spindles or worn-out idlers slow you down—get your 2020 ZT Elite Spindle, Deck Idlers & Chute parts today and keep your mower in great working condition.

Bad Boy Mower Parts Lookup

2020 ZT Elite - Spindle, Deck Idlers & Chute
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
7 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
16.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
21.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
21 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
22 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
26.0 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
27 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
30 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
