2020 ZT Elite - Steering Arm Assembly

2020 ZT Elite - Steering Arm Assembly

For a fully functional and responsive steering system, the 2020 ZT Elite Steering Arm Assembly is essential. BadBoyMowerParts.com carries all the Bad Boy Mower Parts needed to keep your steering arm assembly in top condition. Whether you need a complete assembly or specific parts like bolts, bushings, or linkages, we offer everything for a perfect replacement. Our Bad Boy Mower Part diagrams make it easy to identify the parts you need and order them quickly. With Bad Boy Lawn Mower Parts, you’re guaranteed reliable and long-lasting components for your mower. Bad Boy Parts Online ensures a fast and secure shopping experience, and with Free Shipping On Orders Over $100, you can save on delivery costs while getting your parts delivered quickly. Keep your 2020 ZT Elite Steering Arm Assembly working perfectly with the help of our high-quality parts.

Bad Boy Mower Parts Lookup

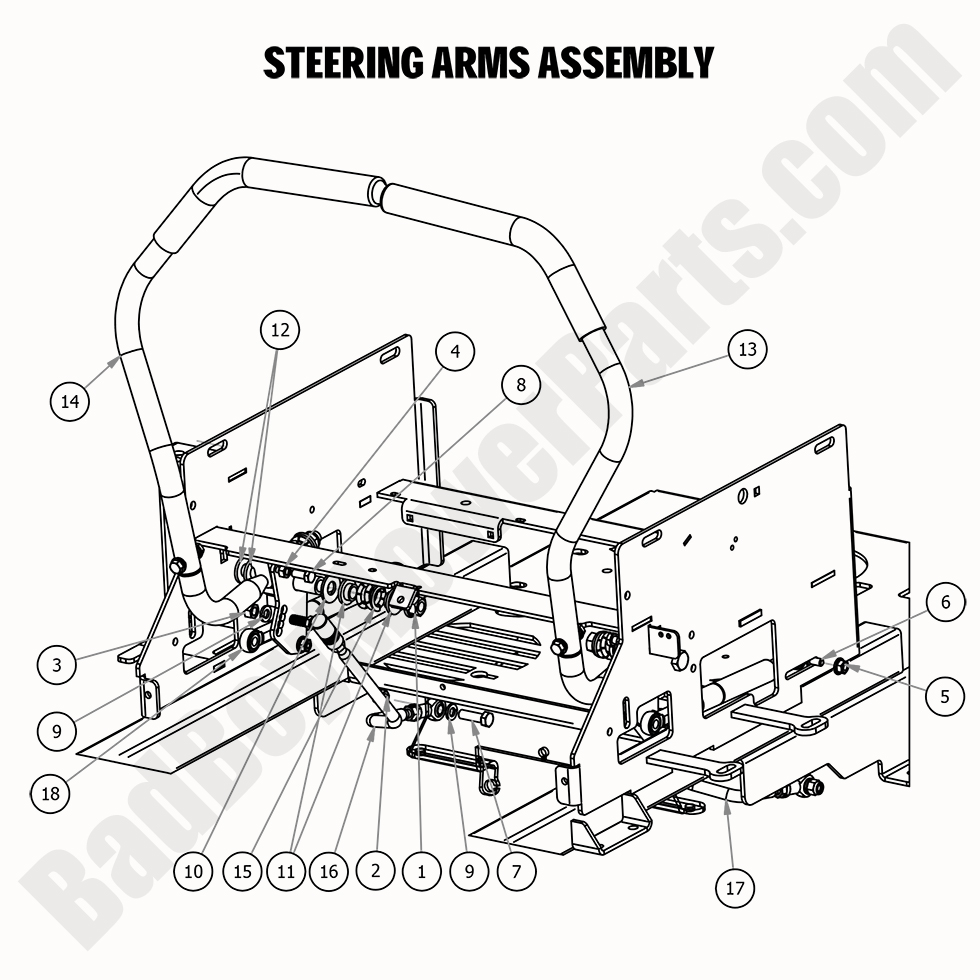

2020 ZT Elite - Steering Arm Assembly
  Position Number SKU Product Title Price
1 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
14 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
15 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
16 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
17 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
18 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
