2021 Compact Outlaw - 42" Deck Assembly

2021 Compact Outlaw - 42" Deck Assembly

The 2021 Compact Outlaw 42" Deck Assembly is essential for ensuring your mower cuts grass efficiently and evenly. If you need to replace or repair the deck, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts for the 42" Deck Assembly. Our detailed Bad Boy Mower Part diagrams make it easy to find the exact parts needed for repairs. Whether you're looking for blades, pulleys, or deck hangers, we have all the Bad Boy Lawn Mower Parts you need for a smooth mowing experience. Shopping for Bad Boy Parts Online is hassle-free, and with Free Shipping On Orders Over $100, you can get all the parts for your 2021 Compact Outlaw 42" Deck Assembly delivered to your door with no extra shipping charges.

Bad Boy Mower Parts Lookup

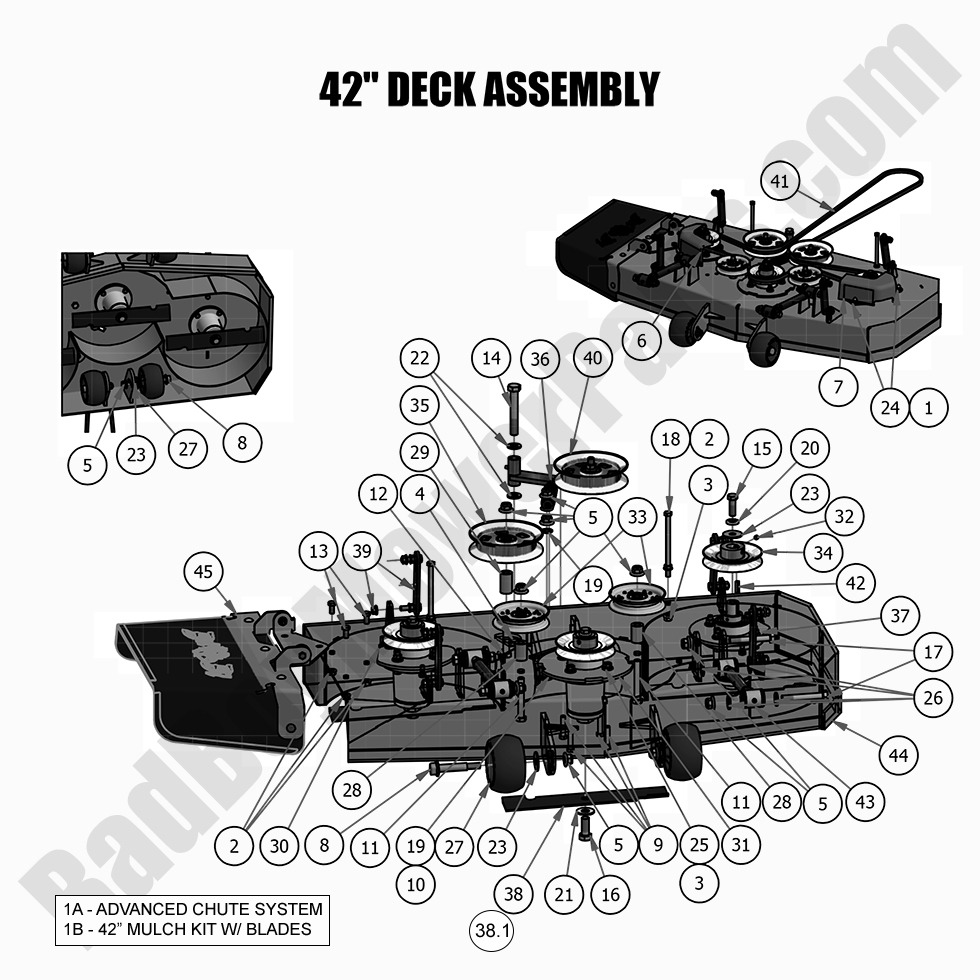

2021 Compact Outlaw - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0042-50 210-0042-50 - 2017 -2021 42" Compact Outlaw Kit w/ Blades (Will Not Fit 42" Maverick HD)
$318.45

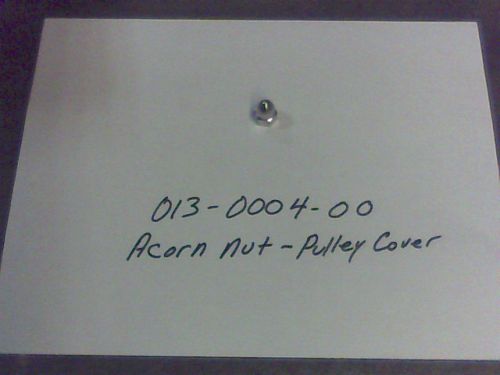

1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

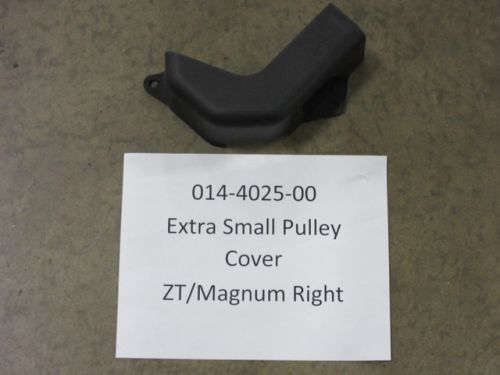

6 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
7 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
8 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
9 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29

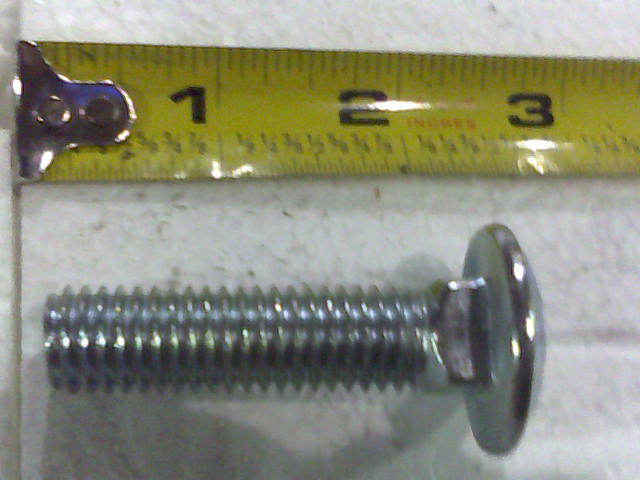

10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
19 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
27 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
28 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62

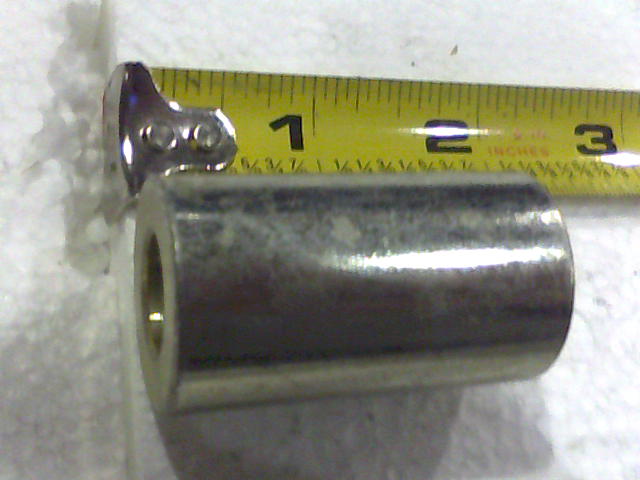

29 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
30 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
31 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
36 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
37 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
38.1 038-4227-00 038-4227-00 - 42" Gator Blade
$21.99
38 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
39 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
40 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
41 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24

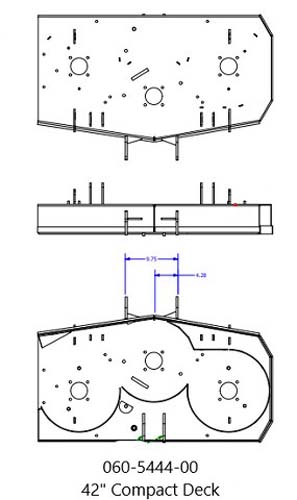

44 060-5444-00 060-5444-00 - Deck Shell (2018-2021 42" Compact Outlaw and 2022 Maverick HD)
$999.99
45 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
