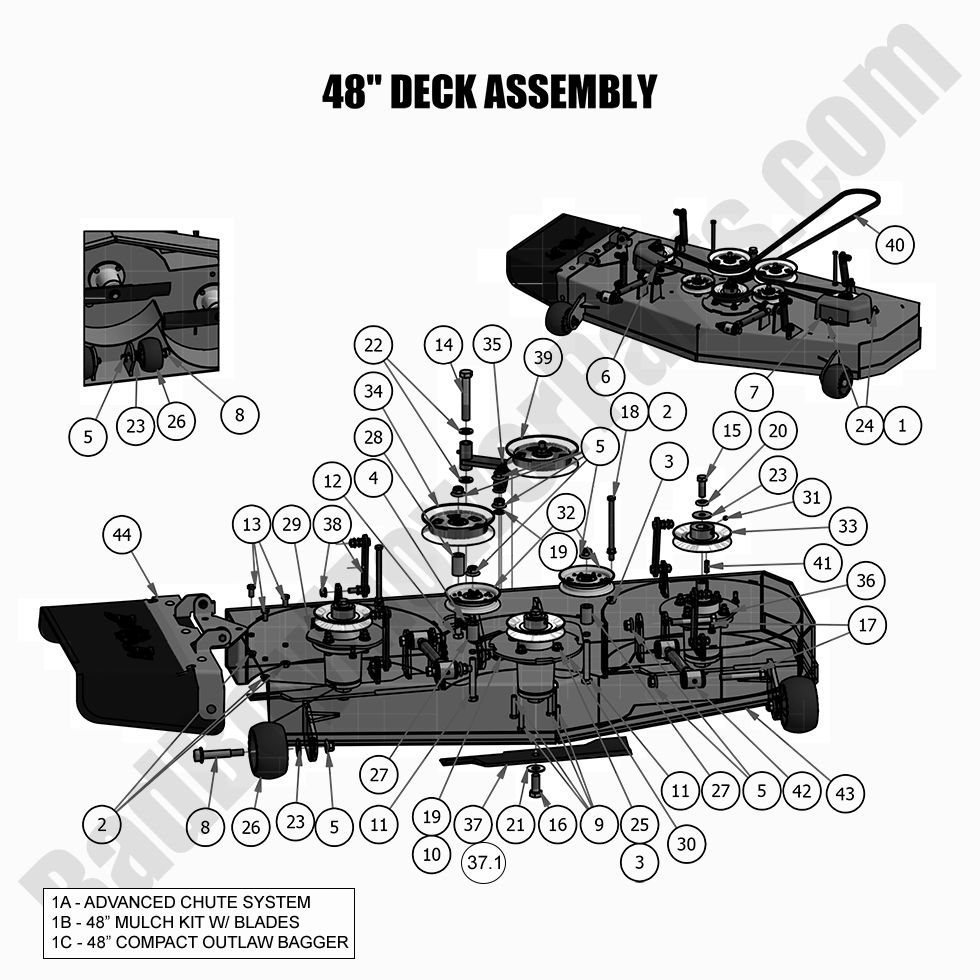

2021 Compact Outlaw - 48" Deck Assembly

2021 Compact Outlaw - 48" Deck Assembly

For optimal performance, the 2021 Compact Outlaw 48" Deck Assembly is designed to provide a clean, even cut for larger lawns. If your deck assembly needs replacement parts or repairs, BadBoyMowerParts.com has everything you need. Our selection of Bad Boy Mower Parts includes high-quality components specifically designed for your 2021 Compact Outlaw 48" Deck Assembly. From pulleys to blades, our Bad Boy Mower Part diagrams will help you find the exact part you need. Whether you need Bad Boy Lawn Mower Parts for routine maintenance or more extensive repairs, we provide everything to get your mower back in top shape. Shopping for Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, your parts will be delivered directly to your door without any extra shipping costs.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1810-00 088-1810-00 - 48 Compact Outlaw 2 Bagger Paddle (2017-2020 only)
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
7 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
8 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
9 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
19 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
33 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
34 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
35 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
37 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
38 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
39 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
40 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
43 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
44 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
