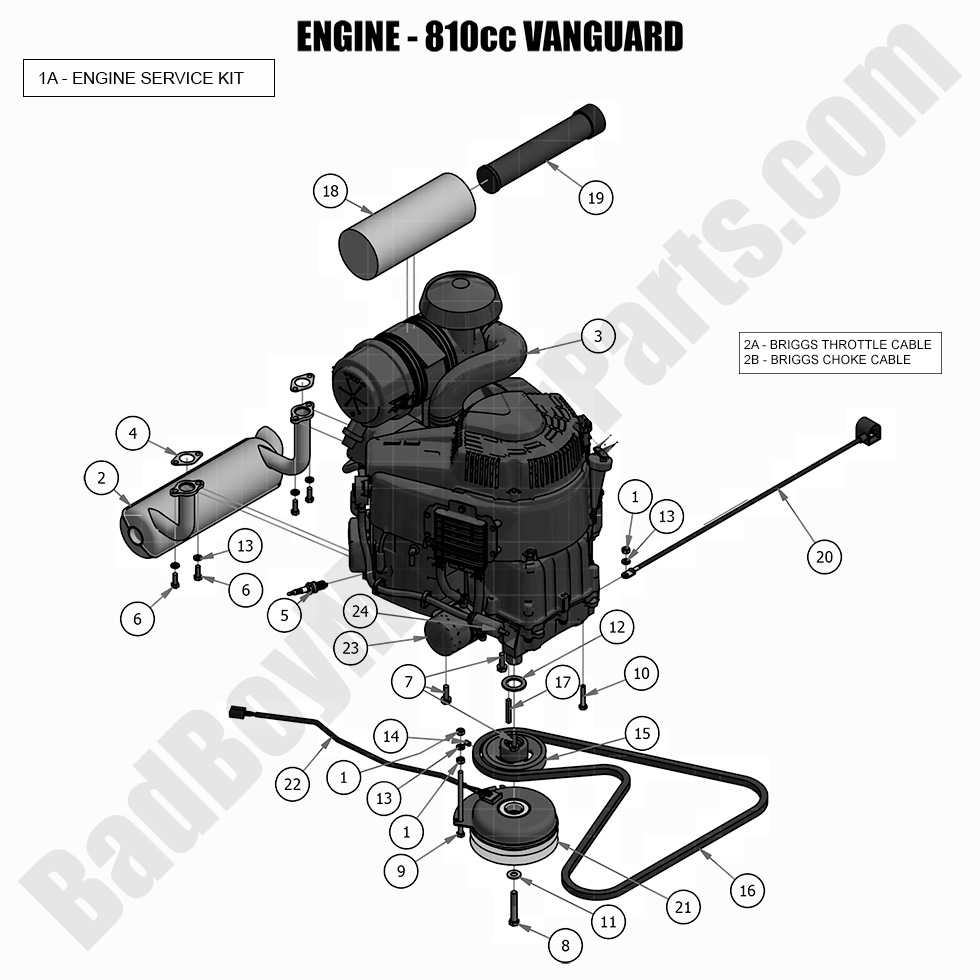

2021 Compact Outlaw - Engine - Vanguard

2021 Compact Outlaw - Engine - Vanguard

The 2021 Compact Outlaw Engine - Vanguard is built for durability and power, ensuring that your mower operates at peak performance. If you need replacement parts for this engine, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts designed to keep your engine in top condition. Our Bad Boy Mower Part diagrams provide an easy way to locate the exact components you need for the Vanguard engine. Whether you're replacing the fuel system, filters, or other engine components, we’ve got you covered with high-quality Bad Boy Lawn Mower Parts. Ordering Bad Boy Parts Online is fast and easy, and with Free Shipping On Orders Over $100, you can have all your engine parts delivered right to your doorstep with no additional shipping charges.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Engine - Vanguard
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
3 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$1999.99
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
6 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
9 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
10 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
15 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
16 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
17 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
18 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
20 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
21 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
22 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
