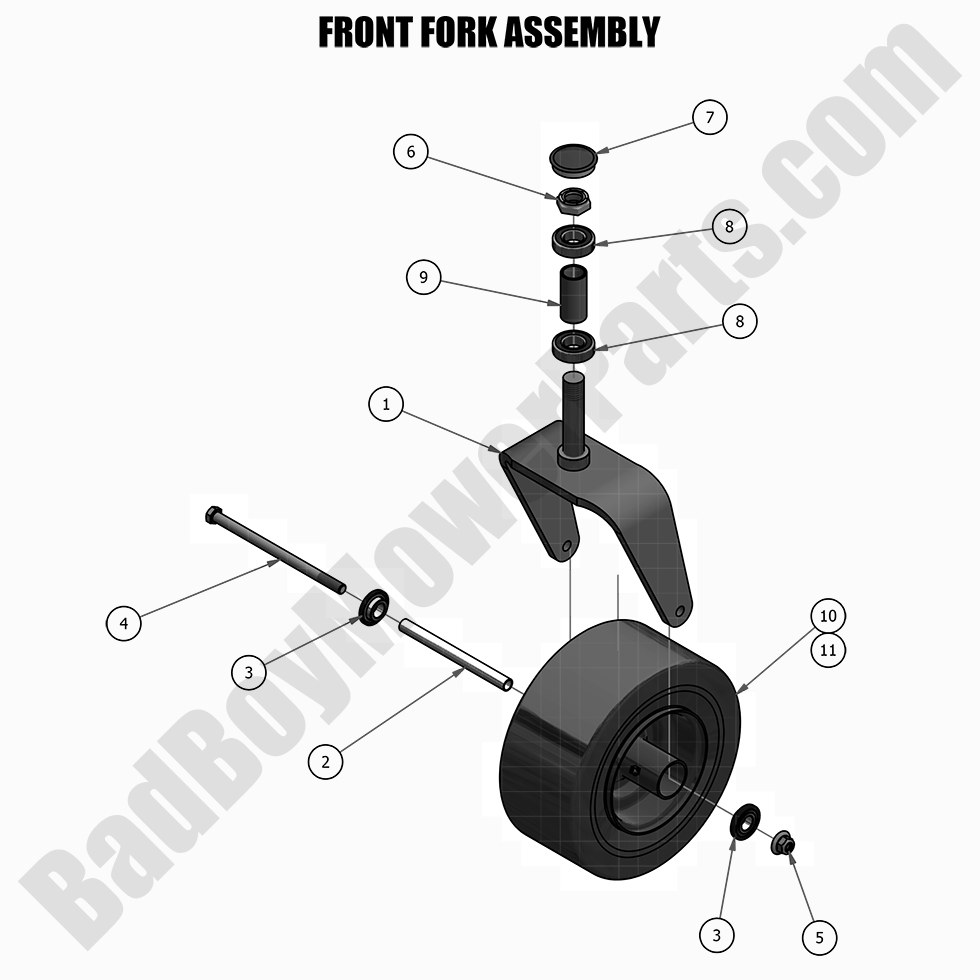

2021 Compact Outlaw - Front Fork Assembly

2021 Compact Outlaw - Front Fork Assembly

The 2021 Compact Outlaw Front Fork Assembly is an important part of the mower’s structure, ensuring stability and proper steering functionality. If you're looking to replace or repair your front fork assembly, BadBoyMowerParts.com has the high-quality Bad Boy Mower Parts you need. Our detailed Bad Boy Mower Part diagrams make it easy to locate and identify the exact components for the front fork assembly of your 2021 Compact Outlaw. Whether you need to replace the entire assembly or individual components, we offer a wide range of Bad Boy Lawn Mower Parts for a perfect fit. Shopping for Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you can have all your replacement parts delivered right to your door with no extra shipping fees.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
4 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
11 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
