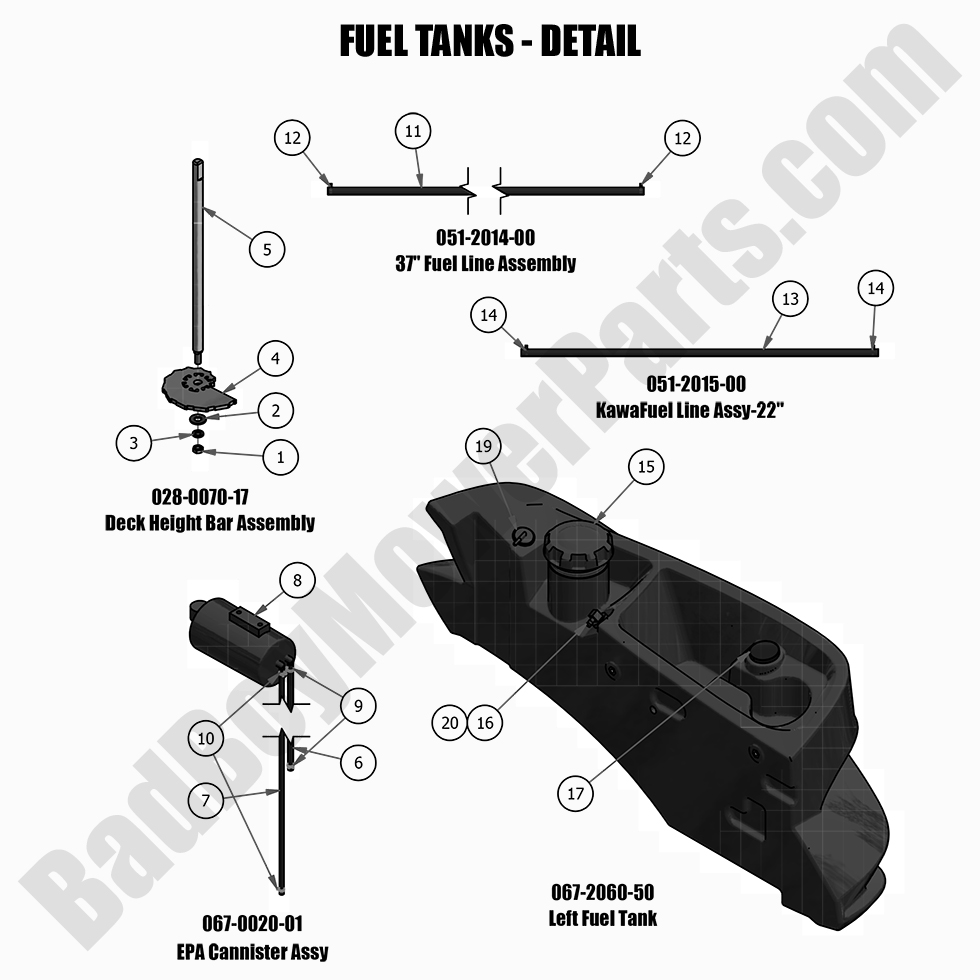

2021 Compact Outlaw - Fuel Tanks - Detail

2021 Compact Outlaw - Fuel Tanks - Detail

The 2021 Compact Outlaw Fuel Tanks - Detail play a crucial role in storing the fuel needed for your mower’s engine. If your fuel tank is damaged or in need of replacement, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts to keep your mower running smoothly. Our comprehensive Bad Boy Mower Part diagrams help you easily find the exact fuel tank parts you need. Whether you're replacing the entire fuel tank or just a specific part, we provide high-quality Bad Boy Lawn Mower Parts that are designed for a perfect fit. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, your parts will be delivered directly to your door without any extra shipping charges.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Fuel Tanks - Detail
  Position Number SKU Product Title Price
1A 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
1B 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
1C 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
1D 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
1E 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
6 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
7 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
8 067-0020-00 067-0020-00 - Carbon Canister
$62.40
9 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
10 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
11 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
12 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
13 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
16 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
17 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
19 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
20 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
