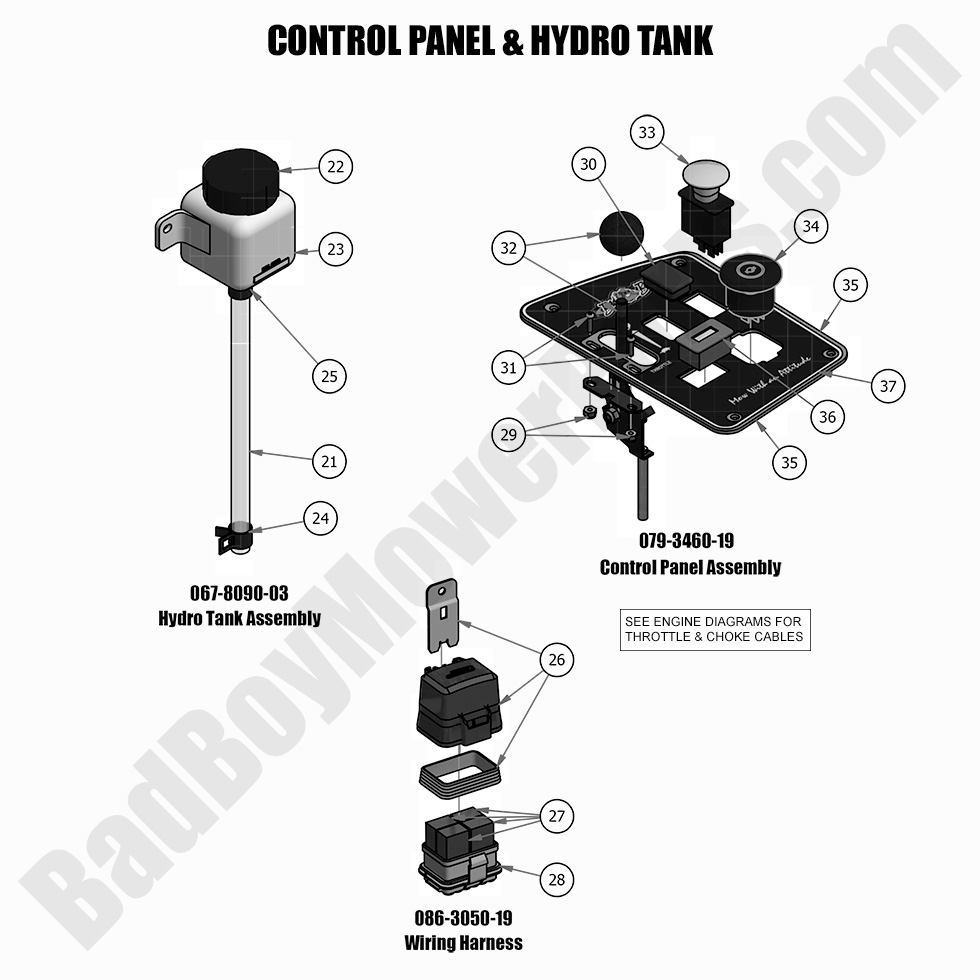

2021 Compact Outlaw - Control Panel & Hydro Tank

2021 Compact Outlaw - Control Panel & Hydro Tank

The 2021 Compact Outlaw Control Panel & Hydro Tank are crucial components that help control the operation of your mower. The control panel allows the operator to manage settings like speed and blade engagement, while the hydro tank holds the hydraulic fluid necessary for the mower's movement. If you need to replace or repair either of these components, BadBoyMowerParts.com provides a full range of Bad Boy Mower Parts. With our Bad Boy Mower Part diagrams, finding the right control panel or hydro tank parts is easy. Whether you’re in need of Bad Boy Lawn Mower Parts for general maintenance or more specific parts for repair, we’ve got you covered. You can shop for Bad Boy Parts Online at your convenience, and with Free Shipping On Orders Over $100, you’ll have your replacement parts delivered directly to your door without any additional costs.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Control Panel & Hydro Tank
  Position Number SKU Product Title Price
1A 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
1B 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
1C 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
21 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
22 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
23 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
24 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
25 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
26 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
27 086-1202-19 086-1202-19 - Relay Terminal
$24.97
28 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
29 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
30 018-1040-00 018-1040-00 - Light Plug
$2.99
31 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
33 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
34 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
35 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
36 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
37 091-0338-18 091-0338-18 - Control Panel Decal 2018-2021 MZ/Magnum/ZT/Maverick
$14.97
