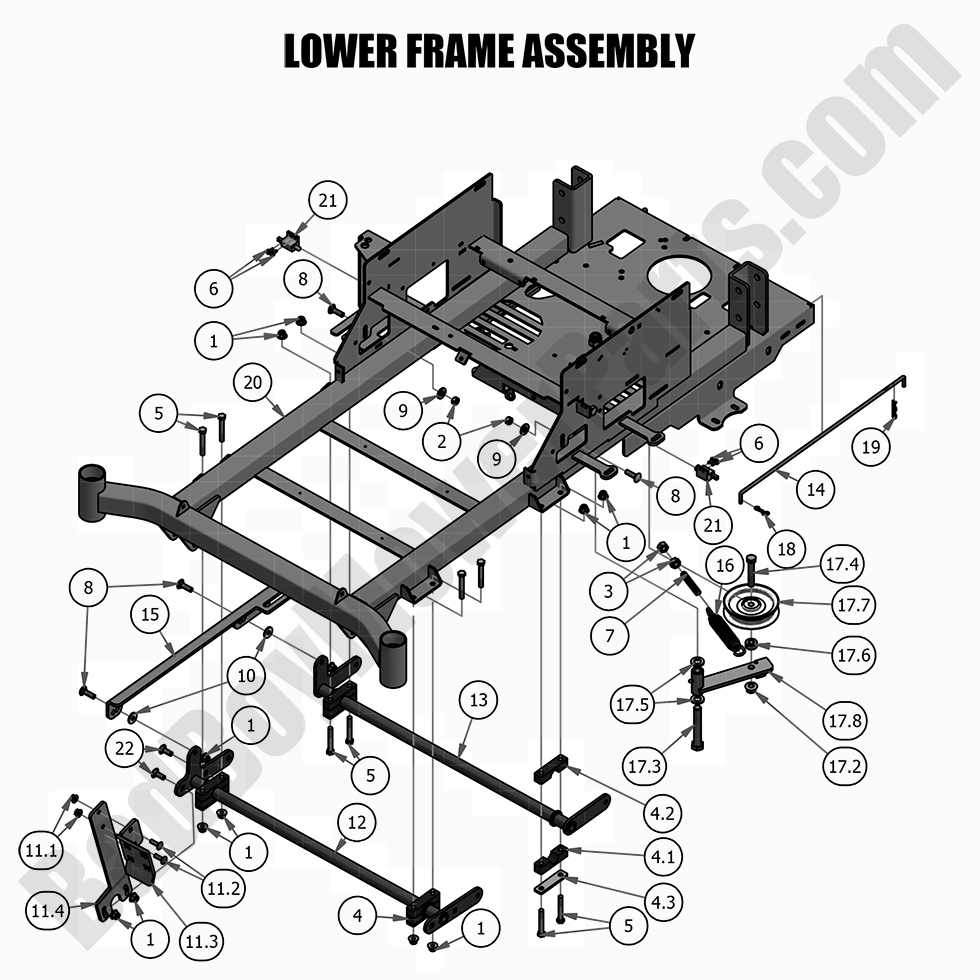

2021 Compact Outlaw - Lower Frame Assembly

2021 Compact Outlaw - Lower Frame Assembly

The 2021 Compact Outlaw Lower Frame Assembly is an essential part of the mower’s structure, providing support and stability to the rest of the components. If you need replacement parts for the lower frame, BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts that are designed to fit your 2021 Compact Outlaw. Our detailed Bad Boy Mower Part diagrams make it easy to locate the exact parts you need for the lower frame assembly. Whether you're replacing an entire assembly or specific parts, we offer Bad Boy Lawn Mower Parts for the job. Shopping for Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you can get all your replacement parts delivered directly to your door with no added shipping costs.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Lower Frame Assembly
  Position Number SKU Product Title Price
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
4.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
4.2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
4.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
11.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
11.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
17.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
17 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
20 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
21 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
22 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
