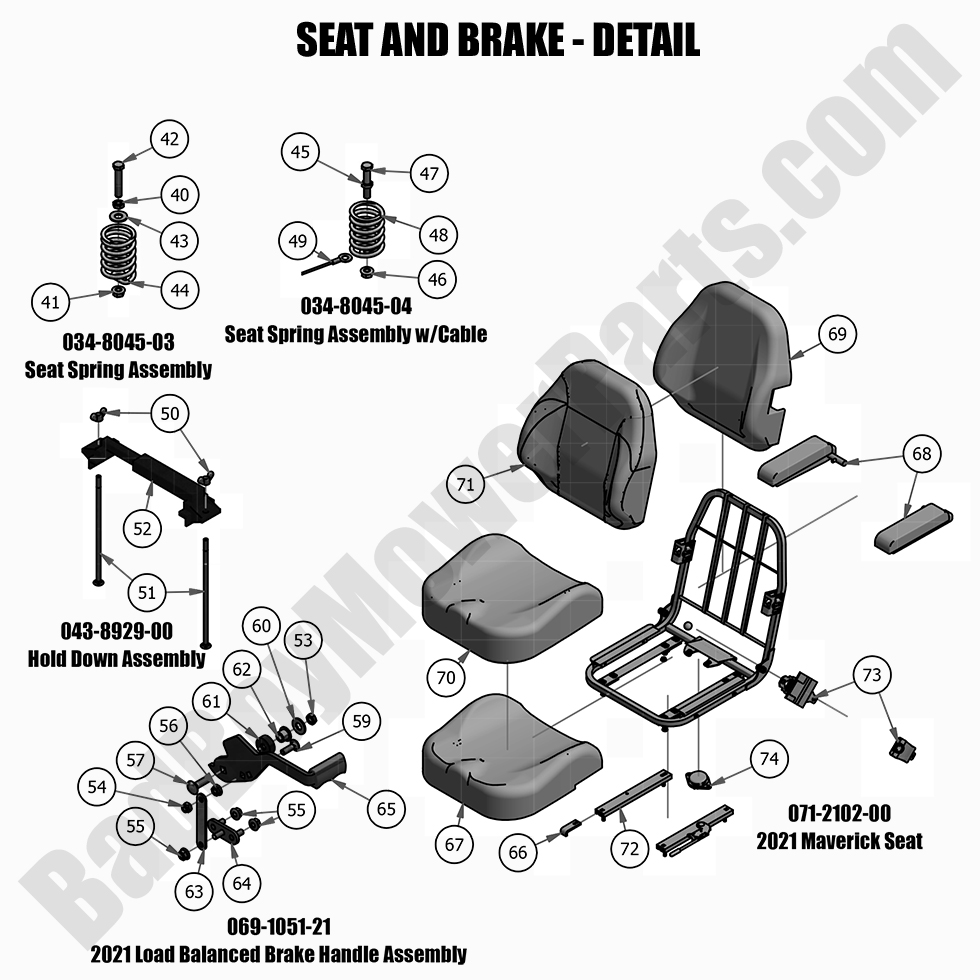

2021 Compact Outlaw - Seat and Brake - Detail

2021 Compact Outlaw - Seat and Brake - Detail

The 2021 Compact Outlaw Seat and Brake - Detail assembly is important for both comfort and safety. If you're looking to replace or repair the seat and brake components, BadBoyMowerParts.com provides a complete range of Bad Boy Mower Parts designed for your 2021 Compact Outlaw. Our detailed Bad Boy Mower Part diagrams make it easy to identify and order the correct parts for both the seat and brake system. Whether you're replacing the seat, brake components, or other related parts, we offer Bad Boy Lawn Mower Parts that ensure smooth functionality. Shopping for Bad Boy Parts Online is fast and hassle-free, and with Free Shipping On Orders Over $100, your parts will be delivered directly to your door without any extra shipping fees.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Seat and Brake - Detail
  Position Number SKU Product Title Price
1A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1B 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
1C 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
1D 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
1E 071-2102-00 071-2102-00 - 2021 Maverick, 2022 ZT Elite Seat
$692.99
40 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
41 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
42 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 034-8045-00 034-8045-00 - Seat Spring
$20.49

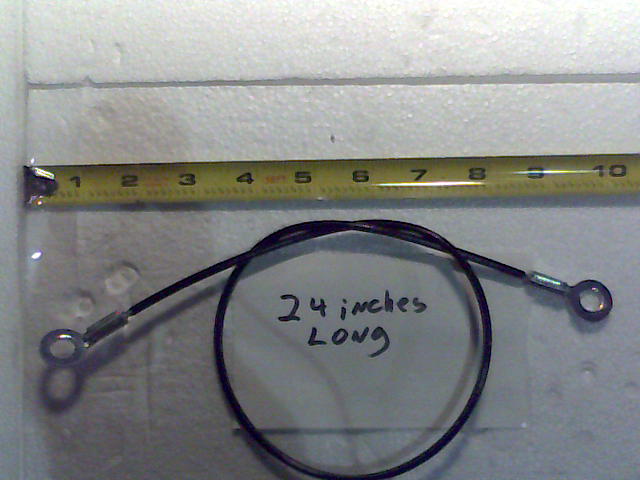

49 064-8081-00 064-8081-00 - Seat Cable
$15.60
50 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
51 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99

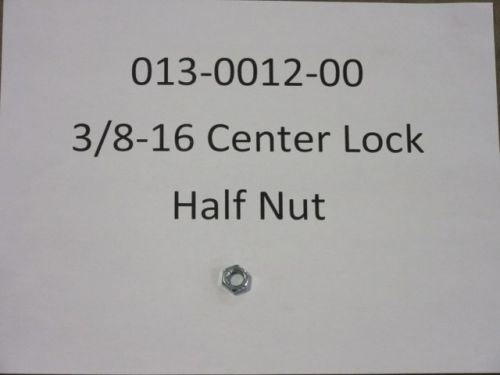

53 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29

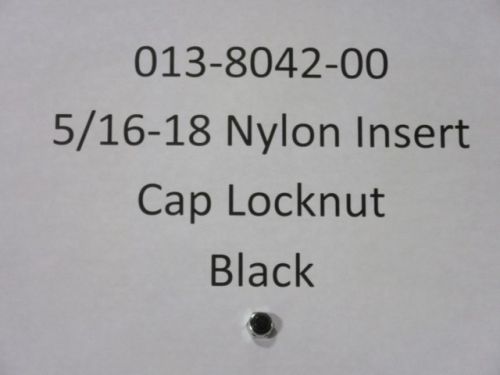

54 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
55 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
56 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
57 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
59 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
61 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
62 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
63 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99

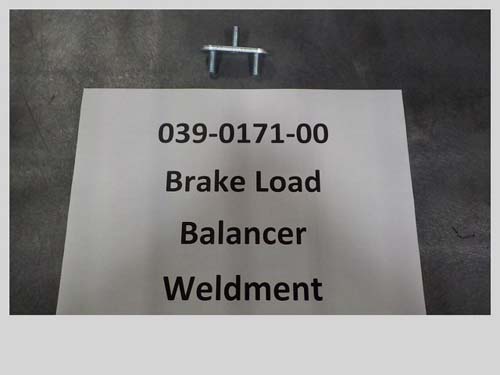

64 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
65 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45

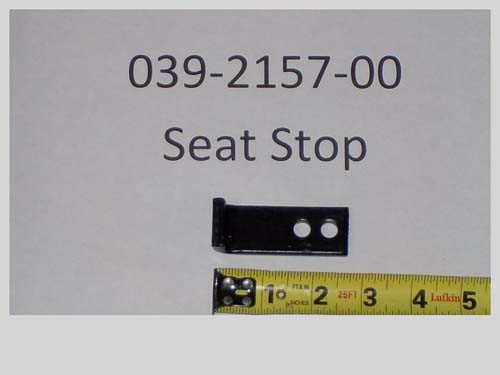

66 039-2157-00 039-2157-00 - Black Seat stop
$14.19
68 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
69 071-2102-01 071-2102-01 - Foam Molded Back for 071-2102-00
$69.54
70 071-2102-02 071-2102-02 - Seat Cover (See Models Used On For Details)
$131.37
71 071-2102-03 071-2102-03 - Back Cover
$145.95

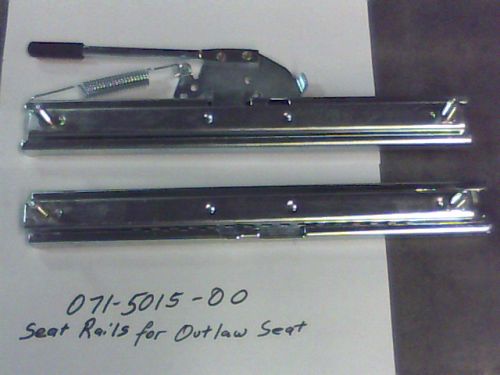

72 071-5015-00 071-5015-00 - Seat Rails
$93.69

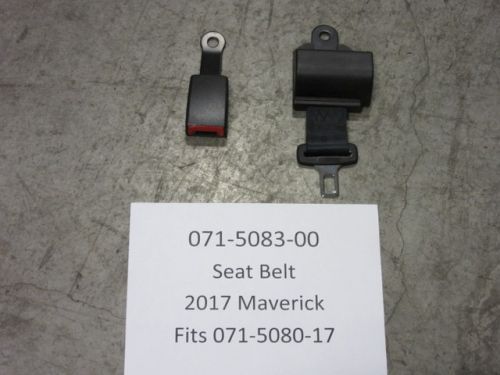

73 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
74 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
