2021 Compact Outlaw - Seat & Floorpan

2021 Compact Outlaw - Seat & Floorpan

The 2021 Compact Outlaw Seat & Floorpan assembly is an integral part of the mower’s comfort and safety. If you need to replace or repair the seat or floorpan, BadBoyMowerParts.com offers a full selection of Bad Boy Mower Parts designed for your 2021 Compact Outlaw. Our Bad Boy Mower Part diagrams help you easily identify and order the right parts for your seat and floorpan. Whether you're replacing the seat itself or any other related components, we have all the Bad Boy Lawn Mower Parts you need for a complete replacement. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can have all the parts you need delivered directly to your home without any additional shipping fees.

Bad Boy Mower Parts Lookup

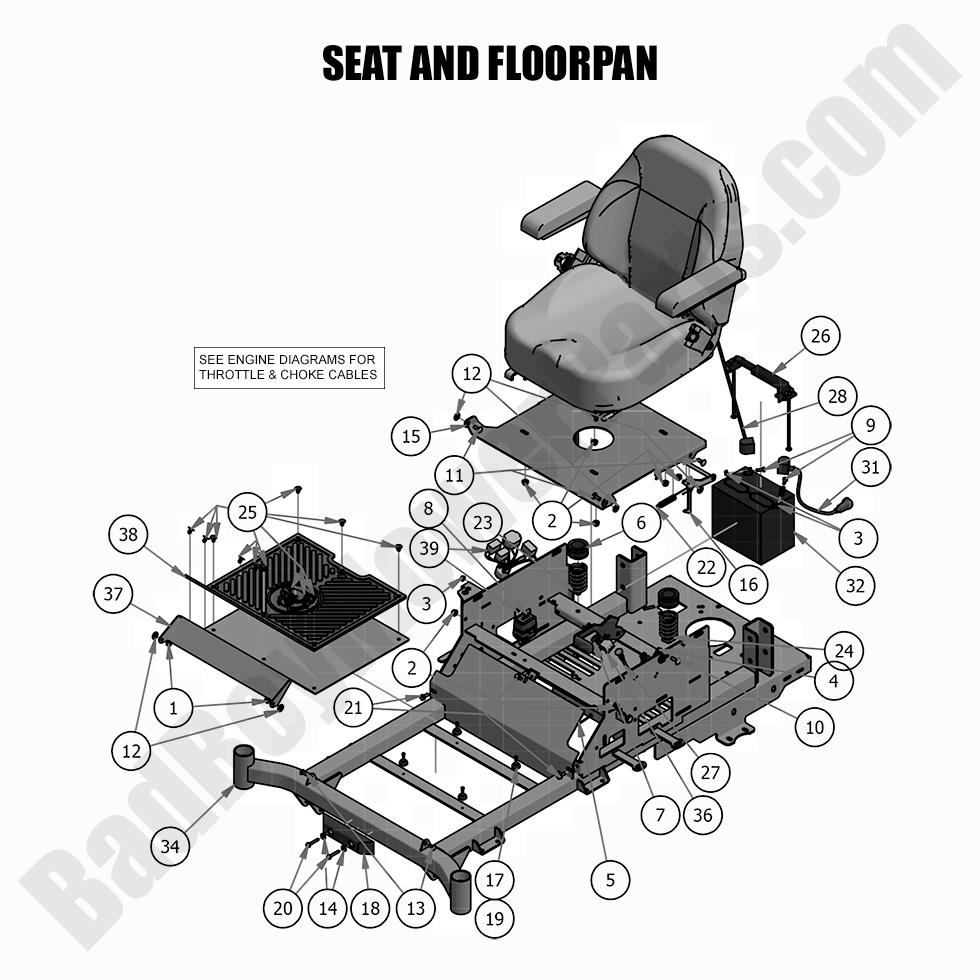

2021 Compact Outlaw - Seat & Floorpan
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

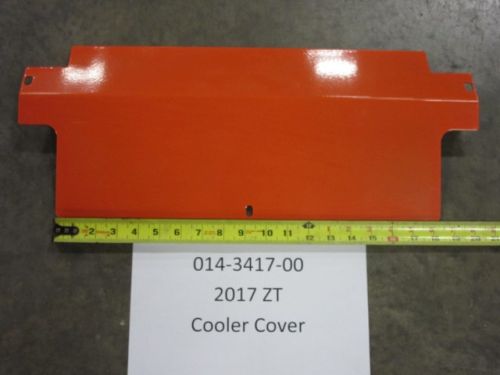

5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 026-1016-00 026-1016-00 - Seat Plate
$102.11
16 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
17 029-4010-00 029-4010-00 - Button Bumper
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
19 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
20 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
21 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
22 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
23 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
24 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
25 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
28 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
31 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
34 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
38 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
39 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
